INRICO TM-7 PLUS MK2 (AVIATION VERSION) 4G/WIFI NETWORK MOBILE RADIO 4G
SKU Part Number: INRICO-TM-7-PLUS
INRICO TM-7 PLUS (AVIATION VERSION) 4G/WIFI NETWORK MOBILE RADIO 4G Key Features: Hi quality audio great for Audio streaming as well as...
Read More
£190.00 £158.33
Availability: In stock
call

Seen this product cheaper elsewhere?

Call 0345 2300 599

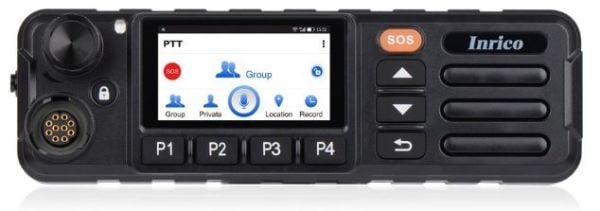

INRICO TM-7 PLUS (AVIATION VERSION) 4G/WIFI NETWORK MOBILE RADIO 4G

Key Features:

  • Hi quality audio great for Audio streaming as well as comms
  • GPS for APRS Droid and similar
  • Android 7
  • 12/24vDC input
  • Android based POC Radio (PTT over Cellular)

Includes:

  • TM7 Plus
  • GPS antenna
  • DC Lead
  • Mounting Hardware
  • Microphone
  • 4G Antenna
PLEASE NOTE:

In the UK it is an offence to use a mobile phone while driving, http://www.legislation.gov.uk/uksi/2003/2695/regulation/2/made?view=plain. Please check the law in your country before purchase.


Frequency
Model
TM-7Plus
EU version
GSM: B2/B3/B5/B8,
WCDMA: B1/B2/B5/B8
FDD-LTE: B1/B3/B5/B7/B8/B20
TDD-LTE:B38/B40/B41
US version
GSM:B5/B2
WCDMA: B1/B2/B5/B8
FDD-LTE: B1/B2/B4/B5/B7/B12/B13/B17/B28A/B28B
Maximum Transmission Power
32.5db
Receive Sensitivity
-107dBm
Wi-Fi
IEEE 802.11/b/g/n(2.4G和5G)
Bluetooth
4.0 & BLE
Locations
GPS, AGPS
Hardware
CPU
MT6737 ,1.2GHz
Memory
1GB(RAM)+ 8GB(ROM)
TF Card
Support, up to 128G
SIM card slot
Dual SIM card, TF card
USB Ports
Micro USB 2.0
Screen size
IPS 2.45" G + F touch screen
Camera
Optional
Speaker
3558 Speaker 5W
Software
Operation System
Android 7.0
Physical
Dimension (H*W*D)
58 x 188 x 92mm
Weight
≈425g
Working Temperature
-20°C ~ 60°C
Storage Temperature
-40°C ~ 80°C
Certifications
Protection Level
IP54
Certificate
CE/FCC/ROHS
