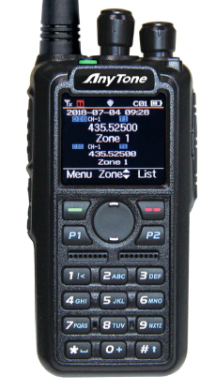

Anytone AT-D878UVII Plus Digital Handheld Radio + PC programming cable
SKU Part Number: AT-D878UVII PLUS
AnyTone Download CenterABOUT ANYTONE AT-D878UVII "PLUS" DMR HAND HELD WITH PROGRAMING CABLE Anytone AT-D878UV11 PLUS BLUETOOTH Digital DMR...
Read More
£185.99 £154.99
Availability: In stock
call

Seen this product cheaper elsewhere?

Call 0345 2300 599

Product Accessories

AnyTone Download Center

ABOUT ANYTONE AT-D878UVII "PLUS" DMR HAND HELD WITH PROGRAMING CABLE

Anytone AT-D878UV11 PLUS BLUETOOTH Digital DMR Dual-band Handheld Commercial Radio with Roaming and GPS VHF/UHF Dual-band Digital/Analog Part 90 DMR commercial transceiver with 1.77 inch colour TFT display and GPS.

New AT-D878UV11 Plus model includes DMR Roaming, faster processor and larger memory for future enhancements. Ideal for Fire, Search & Rescue, EMS, Police, Sheriff, Forestry and Security operations. Frequency coverage 144-146 / 430-440 MHz.

Includes USB Programming cable.

  • Roaming : Built-in DMR Repeater Roaming feature
  • APRS / GPS Capable : DMR-APRS and Analog TX RX APRS Capable (GPS)
  • VHF/UHF Dual Band : Monitor two bands at the same time (V+V, U+U & V+U)
  • Digital DMR and Analog: Features both DMR digital and analog modes on any channel.
  • High Power Output : 6.0W, 4.0W, 2.5W, 1.0W selectable TX power output
  • 2 & 5 Tone Paging Includes built-in : 2 Tone and 5 Tone Paging feature
  • Programming Cable : Includes USB Programming Cable, free software available for download.
  • Color TFT Display :1.77 inch color TFT screen for Day or Night operation. User changeable display and font colors.
  • Roaming : New Built-in Roaming Feature
  • APRS (GPS): DMR-APRS and Analog APRS Capable (GPS)
  • Processor :Faster Processor over the D868UV
  • Additional Memory: Larger Memory for Future Enhancements TFT Display Background Display and Font Colors are User changeable
  • Digital Monitor :Monitor One or Two Timeslots
  • Zone Select :Selectable Zones from Keypad
  • Auto RX Mode Receiver : Auto Selects to incoming Digital or Analog Signal
  • GPS : Built-in GPS feature
  • Memory Channels: 4,000 channels
  • DMR Talk Groups : 10,000
  • Digital Contacts: 500,000 (complete worldwide database from DMR-MARC)
  • Power Levels : 4 programmable power levels: 6/4/2.5/1 Watt Transmit Power Levels.
  • Zones : 250 zones, up to 250 channels per zone.
  • Display: 1.77 inch color TFT Screen with selectable dual channel or single channel display.
  • Battery: Operate 35+ hours between charges with the supplied 3100 mAh lithium ion battery in the power saver mode.
  • Bandwidth : 12.5 / 25.0 kHz Analog, and 12.5 kHz DMR
  • Import/Export :Enhanced CPS allows direct input and export of channels, digital IDs and talkgroups.
  • DMR Compatibility: Supports both Tier I and Tier II operation, making it compatible with DMR repeaters that utilize two-slot TDMA technology.
  • Amateur Radio: Also operational on amateur radio DMR networks and analog frequencies. Software importable worldwide amateur contact database.
  • Programmable : FCC 47CFR90.203 requires the keypad locked in the shipping configuration. Software keypad unlocking and re-programming are available with the included USB Programming Cable.
  • Speaker Connection :2-pin style Kenwood/Wouxun type earphone and speaker mic connection for a variety of accessories.
  • Quiet Tones :CTCSS/DCS tone squelch with split tone and custom tone capability.
  • Frequency Range : 144-146 / 430-440 MHz RX/TX
  • Includded Accessories, manual, BT PPT switch, PC programing cable, battery 3100mAh, charging cradle, carrying strap, antenna, belt clip
Functions:
#True-2-slot: Provide 2-slot communication which allows for 2 talk paths on 1 frequency; ETSI DMR Tier I and II compliant
#Power:VHF: 7/5/2.5/0.2W, UHF: 6/5/2.5/0.2W #Auto-senses digital or analog reception
#4000 channels + VFO; 10,000 talk groups with 200,000 digital contacts
#Display: 1.77 inch TFT color LCD, dual display; dual standby; dual PA
#Bandwidth: 12.5K/25K (Analog); 12.5K (DMR) #Fixed and defined CTCSS/DCS encode and decode #DTMF/2TONE/5TONE encode and decode
#Four different Tone-pluse frequencies #Individual/Group/All call
#Support Contact Manager
#Display the Caller ID and name
#SMS via keyboard, One touch call/text
#Zone selection; Ranging function between radios with GPS
#ANI function and PTT ID; VOX; Digital Recording and Play
#Roaming function; Talker alias function #IP connect to Motorola Repeater
#Emergency alarm (with GPS data transmission)
#Either Voice Recording 500 hours(optional) or BT (optional)
#GPS with APRS location reporting(optional)
#AES256 Digital encrytion
#Earphone: KENWOOD connector; Waterproof: IP54
#Battery: 3100mAh Li-ion thick battery 2100mAh Polymer filmy battery(optional)
Specification
General
Frequency Range
Europe: 144-146MHz(V),430-440MHz(U)
United State: 136-174MHz(V),400-480MHz(U)
Australia: 144-148MHz(V), 420-450MHz(U)
India:144-146MHz(V), 436-438MHz(U)
Channel Capacity
4000 channels
Channel Spacing
25KHz (Wide Band) ,12.5KHz (Narrow Band)
Phase-locked Step
5KHz, 6.25KHz
Operating Voltage
7.4V DC ±20% /(2100mAh/3100mAh)
Frequency Stability
±2.5ppm
Operating Temperature
-20℃~ +55℃
Size
129×61×39mm (with battery pack)
Weight
282g (with battery pack, antenna)
Receiving Part

Wide band
Narrow band

Sensitivity(12dB SINAD)
≤0.25μV
 ≤0.35μV

Digital Sensitivity
0.3uV/-117.4dBm (BER 5%)      0.7uV/-110dBm (BER 1%)
Adjacent Channel Selectivity
≥70dB
 ≥60dB

Spurious Emission
≤-57dB
≤-57dB

Spurious Rejection
≥70dB
≥70dB

Blocking
84db


Hum & Noise
≥45dB
≥40dB

Audio Distortion
≤5%
Audio Power Output
1000mW/16Ω
Transmitting Part

Wide band
Narrow band

Power Output
VHF: 7/5/2.5/1W,        UHF: 6/5/2.5/1W
Modulation
±5.0KHz@25KHz
±[email protected]

Adjacent Channel Power
≥70dB
≥60dB

Hum & Noise
≥40dB
≥36dB

Spurious Emission
≤-36dBm
≤-36dBm

4FSK Digital Modulation
12.5KHz（data）7K60FXD
12.5KHz（data+voice）7K60FXE
Audio Distortion
≤5%
Error rate
≤3%



Package Includes: Dual-band VHF/UHF Radio 3100 mAh extended life lithium ion battery Desk charger w/ AC adapter Dual-band antenna Belt clip Free USB Programming cable and downloadable software User manual.

BT PTT button
