Remote Polarisation switch UHF, 200W
SKU Part Number: 18082
Remotely change the polarisation plane on X-quad antennas and crossed yagis. The weather-proof relay box equipped with N-connectors is provided for...
Read More
£235.99
Pre Order
call

Seen this product cheaper elsewhere?

Call 0345 2300 599

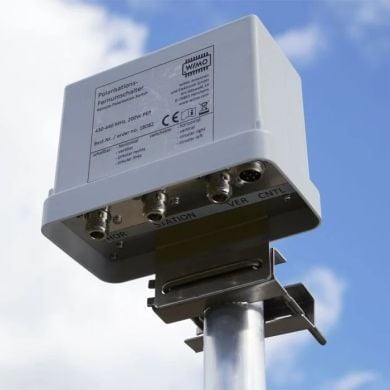

Remotely change the polarisation plane on X-quad antennas and crossed yagis. The weather-proof relay box equipped with N-connectors is provided for mast mounting. Two inputs are available for the antennas and one coax output to the transceiver. Remote operations require an additional 4-wire DC control cable.



Order No.: 40012




The following polarisation planes can be selected: horizontal, vertical, circular right, circular left-handed. For each band, there are two models available, differing by the maximum output power. The remote control switch can be used for our antennas as well as for any third-party products. Supplied with plug required for the control cable and mast clamp. The required switchbox located at the shack is not part of the delivery (you may use just a soapbox and a 4-position rotary switch!) plus an external 12 V-DC power supply/ 100mA to feed the relays.




This remote control switch has been developed for WiMo in the RF lab of SSB-Elektronik, Iserlohn and is exclusively available from us.

18082
Brand WiMo
Remote Control capabilities Yes
Max. Power [W] 200 W PEP
Band 70cm
Connector A N Socket
Connector B N Socket
Connector C N Socket
