Grazioli MV7 7 Band (40m-6m) 1/4 Wave Ground Plane Vertical Antenna
SKU Part Number:
GRAZ-8050020
The Grazioli MV7 is a high-performance multiband 1/4 wave ground plane vertical antenna designed for fixed amateur radio installations covering 40m,...
Read More
Read More
£649.00
Pre Order
Seen this product cheaper elsewhere?

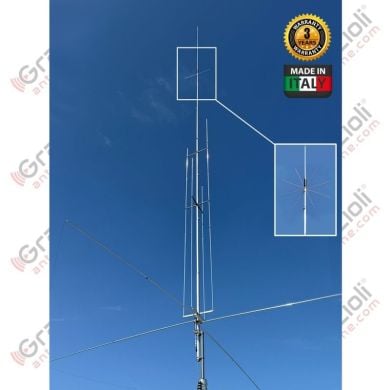

Call 0345 2300 599The Grazioli MV7 is a high-performance multiband 1/4 wave ground plane vertical antenna designed for fixed amateur radio installations covering 40m, 20m, 17m, 15m, 12m, 10m and 6m. Base-fed and built to Grazioli’s usual high mechanical standard, the MV7 is ideal for operators who want wide band coverage from a single robust vertical antenna system.
The MV7 uses a central whip with resonant parallel stubs to provide efficient operation across the supported bands, without relying on lossy impedance transformers that can limit power handling. This design helps maintain good efficiency while allowing high input power, with up to 1500W SSB on 40m and up to 3kW on the other supported bands.
Construction is extremely strong, using cold-drawn AW6063-T66 aluminium alloy tubing and CNC machined parts. The central whip uses a large 42 x 2mm base section tapering to 19 x 1.25mm at the tip, while the lateral stubs and ground plane radials use telescopic 13mm and 10mm aluminium tubes. All hardware is AISI-304 and AISI-316 stainless steel for excellent outdoor durability and rust resistance.
The ground plane consists of four horizontal radials, each approximately 2.7m long, while the vertical stubs are supported by three cross-braces. The antenna is direct fed and connected to DC ground, helping to discharge atmospheric and electrostatic build-up. A custom UHF female connector with PTFE insulation and a gold-plated centre pin is fitted for reliable RF connection.
Supplied with a detailed assembly manual and serial number identifying the production batch and construction data, the Grazioli MV7 is a serious multiband vertical for operators who want strong performance, high power capability and long-term reliability.
Key Features
- Multiband 1/4 wave ground plane vertical antenna
- Covers 40m, 20m, 17m, 15m, 12m, 10m and 6m
- Base-fed design with direct feed system
- Resonant parallel stubs for efficient multiband operation
- No impedance transformer, helping reduce losses and improve power handling
- Maximum power handling of 1500W SSB on 40m
- Maximum power handling of 3kW on other supported bands
- Four horizontal 2.7m ground plane radials
- Omnidirectional vertical radiation pattern
- DC grounded design helps reduce static and atmospheric disturbance
- Cold-drawn AW6063-T66 aluminium alloy construction
- CNC machined components
- AISI-304 and AISI-316 stainless steel hardware
- UHF female connector with PTFE insulation
- Gold-plated centre pin
- Detailed assembly manual included
- Serial number identifies production batch and construction data
Construction Details
The MV7 is built using AW6063-T66 aluminium alloy, a tempered aluminium, magnesium and silicon alloy selected for strength and precision. The tubing is extruded and cold-drawn to maintain accurate diameters and wall thicknesses, helping each section fit securely with minimal movement.
The lateral stubs and ground plane radials are made from telescopic aluminium tubes and secured using high quality AISI-316 stainless steel clamps. The brackets, screws, U-bolts and V-bolts are made from AISI-304 stainless steel, giving the antenna excellent resistance to outdoor weathering.
Installation Notes
The Grazioli MV7 should be installed on a suitable support mast with clear space around the antenna and radials. For best performance, careful tuning of the whip and stub sections should be carried out with a suitable antenna analyser. As with any high-power fixed antenna, secure mechanical mounting, good quality coaxial cable and proper weatherproofing are recommended.
Technical Specifications
| Specification | Details |
|---|---|
| Type | Ground plane 1/4 wave with parallel stubs |
| Frequency coverage | HF 40m, 20m, 17m, 15m, 12m, 10m and VHF 6m |
| Impedance | 50 ohms unbalanced |
| Radiation pattern | Omnidirectional |
| Polarisation | Linear, vertical |
| Gain | 0dBd, 2.15dBi |
| SWR bandwidth | 40m, 20m, 17m, 15m, 12m and 10m full band, 6m greater than 1.5MHz |
| SWR at resonance | 1.5:1 or better, typical |
| Maximum power | 1500W SSB on 40m, 3kW on other bands |
| Feed system | Direct feed, connected to DC ground |
| Connector | UHF female with PTFE insulator and gold-plated centre pin |
| Total height | 8.97m |
| Radiating element length | 8.4m |
| Radial length | 2.7m |
| Mounting pole diameter | 40 to 54mm |
| Wind resistance | 130km/h without ice |
| Wind surface area | 0.42m² |
| Net weight | 8.5kg |
| Packed dimensions | 14 x 14 x 145cm |
| Packed weight | 9.95kg |
