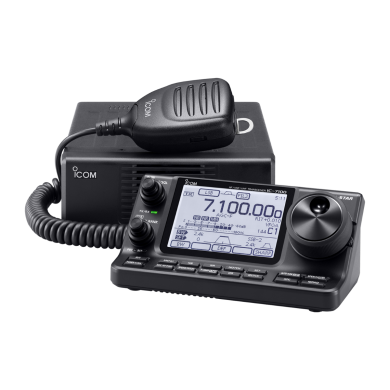

Icom IC-7100
One compact radio covering HF, 50 MHz, 70 MHz, 144 MHz and 430 MHz, with all-mode operation, D-STAR, a detachable touch-screen controller and powerful IF DSP processing.
The Icom IC-7100 brings together the flexibility of an HF base station and a multi-band mobile transceiver. Its separate slant-top controller puts the touch display, speaker, microphone connection, CW key jack and essential controls within easy reach, while the main RF unit can be installed out of the way in a vehicle or station.
Tap the setting you want to change
The IC-7100's large 48.6 × 75.9 mm resistive touch-screen controller gives direct access to operating bands, modes, filters, memories and meter functions without having to work through layers of conventional buttons.
A software keypad makes direct frequency, callsign and memory entry straightforward, and the resistive screen can even be operated while wearing gloves.
Designed for mobile or desktop operation
The separate controller measures just 165 × 64 × 78.5 mm and incorporates the display, built-in speaker and connections for the microphone, electronic key and external speaker or headphones.
From HF SSB to VHF/UHF weak signal
The IC-7100 supports USB, LSB, CW, RTTY, AM, FM and D-STAR DV modes across its supported amateur bands, making it far more versatile than a conventional FM-only VHF/UHF mobile.
USB / LSB
Full break-in
Built-in decoder
Analogue voice
D-STAR digital
Powerful signal processing from HF to UHF
Icom's high-performance IF DSP provides signal-processing functions across the radio's HF, VHF and UHF coverage, helping the operator shape received audio and deal with interference.
Digital voice and data without an optional module
D-STAR DV mode is built into the IC-7100 as standard, providing digital voice and low-speed data operation. Icom's DR mode simplifies operation through D-STAR repeaters, while the radio provides 900 dedicated D-STAR repeater memory channels.
With compatible external GPS data, the radio can also use its repeater database to help locate nearby D-STAR repeaters.
Save your radio configuration
An SD card can store voice memories, memory-channel information, D-STAR repeater memories and personal radio settings for backup or transfer.
Recording and playback
Built-in voice-memory functions provide recording and playback capability, alongside four transmit voice memories for frequently used messages.
Decode RTTY directly on the display
The IC-7100 includes an RTTY decoder that can display received RTTY messages without requiring an external TNC or computer for decoding. Eight RTTY transmit memories can each store up to 70 characters.
Plenty of operating tools
Control the IC-7100 from a remote PC
Icom's optional RS-BA1 IP Remote Control Software allows compatible remote operation across a local network or the Internet, making the IC-7100 equally useful in a conventional shack or a remotely operated station.
Supplied Accessories
Manuals, specifications and D-STAR files
View Icom's official product brochure or download current UK D-STAR repeater, reflector and programming data.
Icom IC-7100 Technical Information
HF, 50 MHz, 70 MHz, 144 MHz and 430 MHz all-mode transceiver with detachable touch-screen controller and built-in D-STAR DV operation.
European Transmit Coverage
| 160 metres | 1.810–1.999 MHz |
|---|---|
| 80 metres | 3.500–3.800 MHz |
| 40 metres | 7.000–7.200 MHz |
| 30 metres | 10.100–10.150 MHz |
| 20 metres | 14.000–14.350 MHz |
| 17 metres | 18.068–18.168 MHz |
| 15 metres | 21.000–21.450 MHz |
| 12 metres | 24.890–24.990 MHz |
| 10 metres | 28.000–29.700 MHz |
| 6 metres | 50.000–52.000 MHz |
| 4 metres | 70.000–70.500 MHz |
| 2 metres | 144.000–146.000 MHz |
| 70 centimetres | 430.000–440.000 MHz |
General
| Receive coverage | 0.030–199.999 MHz and 400.000–470.000 MHz* |
|---|---|
| Modes | USB, LSB, CW, RTTY, AM, DV, FM; WFM receive only |
| Memories | 495 regular, 4 call, 6 scan-edge channels |
| D-STAR repeater memories | 900 |
| Antenna connectors | 2 × SO-239, one for HF/50/70 MHz and one for 144/430 MHz, 50 Ω |
| Operating temperature | −10 to +60 °C |
| Frequency stability | ±0.5 ppm, 0 to +50 °C at 430 MHz |
* Some receive-frequency ranges are not guaranteed by the manufacturer.
Transmitter Output
| Band | SSB / CW / RTTY / FM / DV | AM |
|---|---|---|
| HF / 50 MHz | 2–100 W | 1–30 W |
| 70 MHz | 2–50 W | 1–15 W |
| 144 MHz | 2–50 W | — |
| 430 MHz | 2–35 W | — |
Power Requirements
| Supply voltage | 13.8 V DC ±15% |
|---|---|
| Maximum TX current, HF/50/70 MHz | 22 A |
| Maximum TX current, 144/430 MHz | 16 A |
| RX current | 1.2 A max audio / 0.9 A standby |
Dimensions and Weight
| Main unit dimensions | 167 × 58 × 225 mm, projections excluded |
|---|---|
| Main unit weight | Approx. 2.3 kg |
| Controller dimensions | 165 × 64 × 78.5 mm, projections excluded |
| Controller weight | Approx. 0.5 kg |
Receiver and Audio
| IF DSP | 32-bit floating-point digital signal processing |
|---|---|
| Audio output | More than 2.0 W at 10% distortion into 8 Ω at 13.8 V DC |
| RTTY decoder | Built in |
| RTTY memories | 8 memories, up to 70 characters each |
Connections and Interfaces
- 2 × SO-239 antenna connectors
- USB connection
- CI-V remote-control jack
- DATA1 and DATA2 connections
- 13-pin ACC socket
- External speaker connection
- Electronic keyer connection
- External antenna tuner connection
- Detachable controller connection
Supplied Accessories
- HM-198 hand microphone
- DC power cable
- Spare fuses
- OPC-2253 3.5 m separation cable
- 13-pin ACC cable
- CW keyer plug
- USB cable
- Ferrite bead, depending on supplied version
