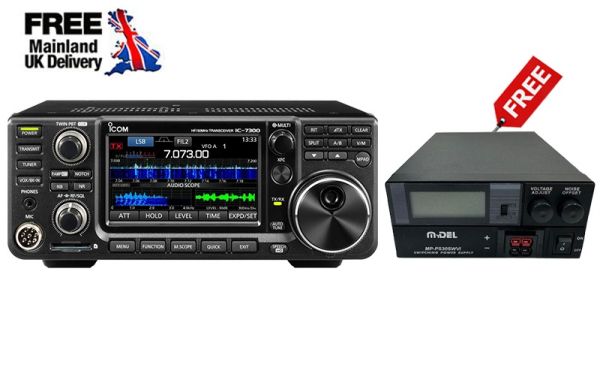

IC-7300 HF/50/70MHz Transceiver

The IC-7300 is a revolutionary compact radio that will excite HF operators from beginners to experts. This model has a high-performance real-time spectrum scope and employs a RF direct sampling system. The IC-7300’s real-time spectrum scope provides top-level performance in resolution, sweep speed and dynamic range. While listening to received audio, the operator can check the real-time spectrum scope and quickly move to the intended signal. The combination of the real-time spectrum scope and waterfall function improves the quality and efficiency of HF operation.

The RF direct sampling system employed by the IC-7300 realises class leading RMDR (Reciprocal Mixing Dynamic Range) and Phase Noise characteristics. In addition, the IC-7300 features the 70MHz band (European versions only), a large touch screen colour TFT LCD, convenient multi-function dial knob, automatic antenna tuner, voice recorder function and more.

Class Leading Real-Time Spectrum Scope
You no longer have to choose whether to listen to the audio or have the spectrum scope sweep for signals as the IC-7300’s real-time spectrum scope offers the simultaneous operations found in higher tier models. This means you can use either the spectrum scope or the waterfall to quickly move to an intended signal while listening to the receiver audio. The IC-7300’s touch screen introduces a “Magnify” function. So, when you first touch the scope screen around the intended signal, the touched part is magnified. A second touch of the scope screen changes the operating frequency and allows you to accurately tune.

High-Resolution Waterfall Function
The combination of the waterfall function and the real-time spectrum scope assists in maximum receive performance of the IC-7300 and increases QSO opportunities without missing weak signals. The waterfall function shows a change of signal strength over a period of time and allows you to find weak signals that may not be apparent on the spectrum scope.

Audio Scope Function
The audio scope function can be used to observe various AF characteristics such as microphone compressor level, filter width, notch filter width and keying waveform in the CW mode. Either the transmit or receive audio can be displayed on the FFT scope with the waterfall function and the oscilloscope.

RF Direct Sampling System
The IC-7300 employs an RF direct sampling system. RF signals are directly converted to digital data and processed in the FPGA (Field-Programmable Gate Array), making it possible to simplify the circuit construction. This system is a leading technology making an epoch in amateur radio.

“IP+” Function
The “IP+” function improves 3rd order intercept point (IP3) performance. When a weak signal is received adjacent to strong interference, the AD converter is optimized against signal distortion.

Class Leading RMDR (Reciprocal Mixing Dynamic Range) & Phase Noise Characteristics
The IC-7300’s RMDR is improved to about 97dB* (typical value) and Phase Noise characteristics are improved about 15dB (at 1 kHz frequency separation) compared to the IC-7200. The superior Phase Noise characteristics reduce noise components in both receive and transmit signals.
* At 1 kHz frequency separation (received frequency: 14.2MHz, MODE: CW, IF BW: 500Hz)

Large Touch Screen Colour TFT LCD
The large 4.3 inch colour TFT touch LCD offers intuitive operation. Using the software keypad of the touch screen, you can easily set various functions and edit memory contents.

Multi-Dial Knob for Smooth Operation
The combination of the multi-dial knob and the touch screen offers quick and smooth operation. When you push the multi-dial knob, menu items are shown on the right side of the display. You can select an item with a touch of the screen and adjust levels by turning the multi-dial knob.

SD Memory Card Slot for Saving Data
The IC-7300 can store various contents into SD card such as received and transmitted audio, voice memories, RTTY/CW memories, RTTY decode logs and captured screen images. Personal and firmware updating data can also be stored to the SD card for easy setting.

15 Discrete Band-Pass Filters
The IC-7300 has 15 discrete RF band-pass filters. The RF signal is only passed through one of the band-pass filters, while any out of range signals are rejected. High Q factor coils are used to minimize the loss in the RF band-pass filters.

Built-In Automatic Antenna Tuner
The antenna tuner memorizes its settings based on your transmit frequency, so that it can rapidly tune when you change operating bands. The Enforced Tuning function* allows a wide range of temporary antennas to be tuned.
* Do not use the Enforced Tuning function except in case of an emergency. Transmission power may be reduced.

Superior Sound Quality
To offer superior sound quality, a new speaker unit has been incorporated and is allocated dedicated space in the aluminium die-cast chassis.

Other Features
• HM-219 hand microphone supplied
• Effective large cooling fan system
• A Multi-function meter
• 101 memory channels (99 regular, 2 scan edges)
• Optional RS-BA1 IP remote control software (the spectrum scope with the waterfall can be observed)
• CW functions: Full break-in, CW reverse, CW auto tuning

Following on from our initial ‘Introduction to the Icom IC-7300 HF/50/70MHz Transceiver’ video, we have put together a more in-depth, video called ‘Reviewing the IC-7300’.

With the help from Bob McCreadie (G0FGX) of TX Films, this video features Chris Ridley (G8GKC) who goes through the range of functions that the IC-7300, Icom's first Software Defined Radio (SDR) HF radio has to offer and goes on to explain why its recent introduction has been such a game changer.
