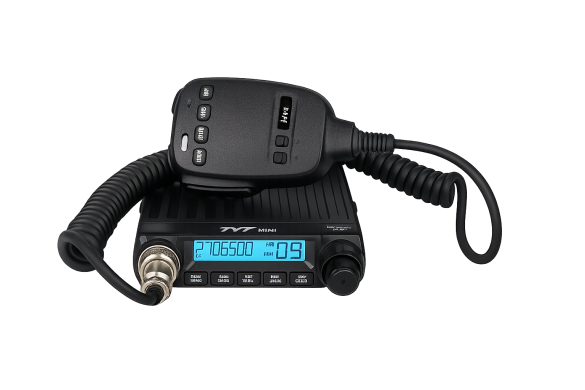

The TYT MINI SSB is a compact 10m AM/FM/SSB HF transceiver designed for operators who want a small-format radio with flexible operating modes, useful features, and a clear front-panel display.
Covering the 28.000MHz to 29.700MHz 10m amateur band, the TYT MINI SSB supports SSB, AM, and FM operation, making it suitable for 10m amateur radio use where permitted. It also supports the UK legal 27MHz CB bands, including the EU/CEPT band from 26.965-27.405MHz and the UK band from 27.60125-27.99125MHz.
Despite its compact size, it includes useful operating features such as RF gain adjustment, microphone gain adjustment, noise cancelling, scan, dual watch, roger beep, echo, and adjustable display backlighting.
With a standard SO-239 antenna connector, 13.8V DC input, and included mounting accessories, this is a practical choice for mobile, portable, or compact shack installations.
Key Features
- Compact 10m AM/FM/SSB HF transceiver
- Covers 28.000MHz to 29.700MHz for 10m amateur operation
- Also supports UK legal 27MHz CB band coverage
- EU/CEPT CB band: 26.965-27.405MHz
- UK CB band: 27.60125-27.99125MHz
- Supports SSB, AM, and FM modulation modes
- 4W FM output power
- 12W SSB output power
- High / low power selection
- RF gain adjustment
- Microphone gain adjustment
- Noise cancelling function
- ASQ / SQ squelch control
- Echo function
- Dual watch function
- Scan function
- TOT timer
- Mute function
- Roger beep
- Multiple backlight colour options
- Adjustable backlight brightness
- UHF / SO-239 antenna connector
- Compact 144.8 x 108.3 x 26.5mm body
Included Accessories
- Hand microphone
- DC power lead
- Mounting bracket
Important Note
This radio must only be used on frequencies, modes, and power levels that you are licensed and authorised to use.
Main Functions
| Function | Details |
|---|---|
| Modulation modes | SSB / AM / FM |
| 10m amateur coverage | 28.000-29.700MHz |
| EU/CEPT CB coverage | 26.965-27.405MHz |
| UK CB coverage | 27.60125-27.99125MHz |
| Power selection | High / low power select |
| Squelch | ASQ / SQ |
| Audio features | Noise cancelling, echo, mute, roger beep |
| Receive controls | RF gain adjustment |
| Transmit controls | Microphone gain adjustment |
| Scanning | Scan and dual watch |
| Timer | TOT |
| Display | Multiple backlight colours and brightness adjustment |
Specifications
| Specification | Details |
| Brand | TYT |
| Model | MINI SSB |
| Product type | 10m AM/FM/SSB HF transceiver |
| Modulation modes | SSB / AM / FM |
| 10m frequency range | 28.000-29.700MHz |
| EU/CEPT CB band | 26.965-27.405MHz |
| UK CB band | 27.60125-27.99125MHz |
| Frequency tolerance | ±5.0ppm |
| Channels | 40 |
| Power output | 4W FM / 12W SSB |
| Antenna connector | UHF / SO-239 |
| Input voltage | 13.8V DC |
| Dimensions | 144.8 x 108.3 x 26.5mm |
| Weight | 335.3g |
| Operating temperature range | -20°C to +50°C |
Receiver Specifications
| Specification | Details |
| Sensitivity | Less than 1µV for 10dB S+N/N |
| Image rejection | 70dB |
| Adjacent channel rejection | 60dB |
| IF frequencies | 1st: 10.695MHz / 2nd: 455kHz |
| AGC | Less than 10dB change in audio output for inputs from 10 to 50,000µV |
| Squelch | Less than 1µV |
| Audio output power | 2W |
| Audio frequency response | 300-3000Hz |
Transmitter Specifications
| Specification | Details |
| Power output | 4W FM / 12W SSB |
| Transmission interference | Less than 4nW |
| Frequency response | 300-3000Hz |
| Modulated signal distortion | Less than 5% |
| Output impedance | 50 ohms |
Current Drain
| Mode | Current Drain |
| Transmit | 2A max |
| Receive, squelched | 0.3A |
| Receive, volume maximum | 0.8A |
