MAT-Y200 ATU for Yaesu V2.1
SKU Part Number: MAT-Y200
MAT-TUNER MAT-Y200 200 Watt Yaesu Antenna Tuner MAT-TUNER MAT-Y200 200 Watt Yaesu Antenna Tuner is specially designed for Yaesu transceivers, for...
Read More
£214.96 £179.13
Pre Order
call

Seen this product cheaper elsewhere?

Call 0345 2300 599

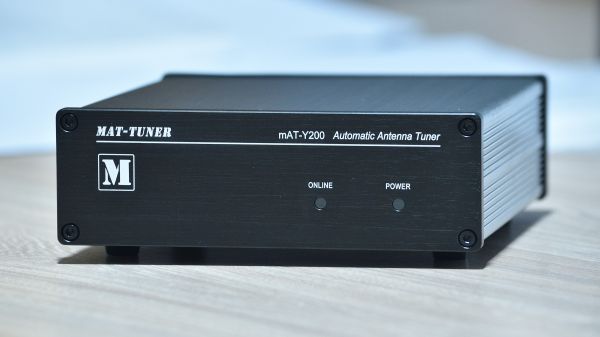

MAT-TUNER MAT-Y200 200 Watt Yaesu Antenna Tuner

MAT-TUNER MAT-Y200 200 Watt Yaesu Antenna Tuner is specially designed for Yaesu transceivers, for high power operations up to 200W SSB. The MAT-Y200 connects via the 8-pin mini-DIN Tuner port, labeled on some Yaesu transceivers as CAT/LINEAR or LIN/TUN (description varies by model) and is operated by the front panel of the radio. The included MAT-CY Interface Cable connects the radio to the tuner, which provides band data and 12 volts DC power.

The MAT-Y200 provides automatic antenna tuning across the entire HF spectrum at power levels up to 200 watts, plus 6 meters up to 100 watts max. It can tune dipoles, verticals, Yagis, long wires, or virtually any other coax-fed antenna. The impedance matching range of 5 to 1500 ohms far exceeds the capability of the transceiver's internal automatic antenna tuner and it features 16,000 frequency memories for instant recall of previously used settings. It has a superior build quality with a machined, black oxidized aluminum case and excellent multi-layer circuit boards.

The MAT-Y200 works with Yaesu transceivers that support the FC-30, FC-40 and FC-50 Yaesu external tuners. Here is a partial compatibility list: FT-100D, FT-857/D, FT-897/D, FT-450/D, FT-710, FT-710 AESS, FT-891, FT-950, FT-991, FT-991A, FTDX10, FTDX-1200, FTDX-3000, FTDX-101D, FTDX-101MP. (NOTE: The FTDX-101MP transceiver will automatically set the maximum RF power to 100W when using an external tuner.)

The FTDX-5000 and FT-2000 are not compatible with the MAT-Y200 because those transceivers do not have an external tuner port. The FT-847, which uses a different protocol, is not compatible with the MAT-Y200. For these transceivers choose the universal model MTU-MAT-125E with RF-sensed automatic tuning. The FT-817/818 transceivers are not compatible with the MAT-Y200 tuner.  Instead, choose the mAT-10 Tuner specially designed for the FT-817 and FT-818.


Features and Specifications of the MAT-Y200 200 Watt Yaesu Antenna Tuner:

  • 0.1 to 200 watts SSB and CW, 100 watts max. Digital Modes on HF 1.8-30 MHz; 100 watts SSB and CW, 50W Digital on 50 - 54 MHz

  • 1.8-54 MHz continuous coverage

  • 16,000 frequency memories

  • 5 to 1500 ohms matching range

  • Tuning time 0.1 to 5 seconds for full tuning cycle, 0.1 seconds to return to the previous memory setting

  • Control from Yaesu transceivers that have FC-30, FC-40, FC-50 interface capability via supplied cable

Brand:
MAT-TUNER
Manufacturer's Part Number:
MAT-Y200
Part Type:
Antenna Tuners
Product Line:
mAT-TUNER Automatic Antenna Tuners
DXE Part Number:
MTU-MAT-Y200
Antenna Tuner Type:
Automatic
Antenna Tuner Location:
Desktop
Weather-Resistant:
No
Mobile Whip Tuner:
No
Tuner Maximum Power Rating:
200 watts
Frequency Range:
1.8-54 MHz
Tuner Inductor Type:
Automatic
Tuner Capacitors:
Automatic
Tuner Bypass Switch:
Yes
Tuner Control Type:
External
Internal Dummy Load:
No
Internal Balun Type:
None
DC Power Required:
No
Tuner Width:
5.118 in.
Tuner Height:
1.575 in.
Tuner Depth:
7.874 in.
Tuner Weight:
1.75 lbs.
Quantity:
Sold individually.
Notes:
Includes MAT-CY interface cable.
Lowest Band of Operation:
160 meters
Highest Band of Operation:
6 meters
