MEASALL Digital Receiver Real-time Spectrum Analyser KC908V 6GHz

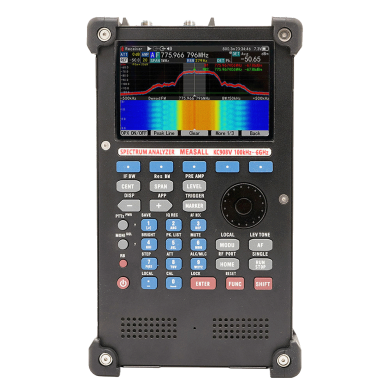

The KC908V is a compact, handheld real-time spectrum analyser and SDR-based digital receiver covering 100 kHz to 6 GHz. It's a “lite” version from the KC908 series, with one RF input and one source port. Model spans start below 100 kHz but depend on selected hardware variant—the V version supports up to 6 GHz
Key Capabilities
• Real‑time Spectrum Scanning
-
Fast sweep at up to 3 GHz per second with 10 kHz frequency precision, equivalent to monitoring some 120,000 channels in a 25 kHz bandwidth. Scans 300–500 MHz in under 0.1 seconds.
-
Effective real‑time bandwidth of 15 MHz, with automatic FFT‑based stitching for wider spans such as full‑band searches.
• Signal Monitoring & Demodulation
-
Supports analogue demodulation (FM, AM, SSB) and digital voice protocols like DMR, TETRA, P25, YSF (some modes may require option licenses)
-
Offers multiple squelch modes, high-volume audio output, and automatic detection/logging of strong or suspicious signals
• IQ Recording & Playback
-
Records raw IQ data and audio to a micro SD (TF) card for post‑analysis.
-
Can replay IQ files, and even act as a signal source to output CW or simple modulated waveforms. With GNURadio, more complex digital modulation/playback is possible.
• Signal Source Function
-
Can generate RF signals across the full 100 kHz to 6 GHz range with up to 90 dB amplitude control. Output via the dedicated port allows analogue modulation and IQ file replay control.
Technical Highlights
| Feature | Specification (Typical) |
|---|---|
| Frequency Range | 100 kHz – 6 GHz |
| Real-time BW | 15 MHz |
| Sweep Rate | Up to 3 GHz/sec |
| Frequency Resolution | Equivalent to 10 kHz RBW |
| Digital Demodulation | DMR, P25, TETRA, etc. |
| Storage | Micro SD (IQ/audio logs) |
| Signal Source Output | Up to +10 dBm with wideband modulation capability |
| Weight | ~900 g handheld |
| Battery Life | Around 4–5 hours depending on usage mode |
Other specs include noise floor below –120 dBm, dynamic range, default logarithmic power display (dBm), diverse detection modes (peak, sample, average), and pre‑selectors/attenuation for anti‑interference .
