Seeed SenseCAP MeshTracker X1 - Card-Sized Meshtastic GPS Tracker with Dual-Band GNSS
SKU Part Number: MESH-TRACKER-X1
Meshtastic GPS Tracker Seeed Studio SenseCAP MeshTracker X1 ...
Read More
£59.95
Pre Order
call

Seen this product cheaper elsewhere?

Call 0345 2300 599
Meshtastic GPS Tracker

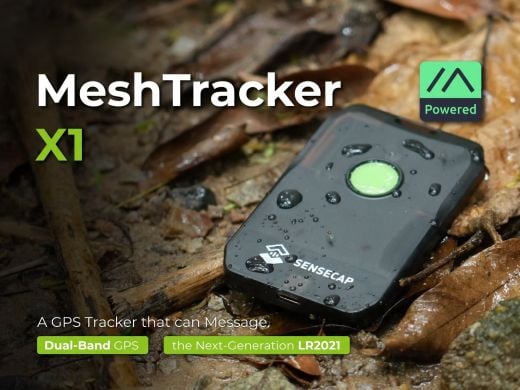

Seeed Studio SenseCAP MeshTracker X1

Card-sized Meshtastic device with dual-band L1 + L5 GNSS, Semtech LR2021 LoRa, IP66 protection, USB-C charging and up to 5 days of battery life.

The SenseCAP MeshTracker X1 is a compact Meshtastic GPS tracker designed for reliable off-grid communication and location sharing beyond mobile network coverage.

Seeed describes the X1 as the world's first card-sized Meshtastic device with dual-band GPS. Its slim 90 x 57 x 8mm body combines a dual-band L1 + L5 GNSS receiver, built-in barometer, Bluetooth 5.0 and the latest Semtech LR2021 LoRa chipset in a rugged IP66-rated enclosure.

With a built-in 1100mAh rechargeable battery, internal GNSS, LoRa and Bluetooth antennas, vibration and buzzer alerts, and USB-C connectivity, the MeshTracker X1 is designed to be easy to carry and ready for outdoor adventures, events, emergency communication and everyday Meshtastic use.

GNSS
Dual-Band L1 + L5

Dual-band satellite positioning is combined with a built-in barometer for more reliable location and altitude awareness.

LoRa
Semtech LR2021

Next-generation LoRa chipset supporting 863 to 928MHz operation with up to 22dBm transmit power.

BATTERY
Up to 5 Days

Integrated 1100mAh rechargeable battery provides up to five days of runtime depending on configuration and use.

PROTECTION
IP66 Rated

Dust and water protection for use in rain, dusty trails and other demanding outdoor environments.

Compact by Design

A Meshtastic Device You Can Actually Carry

At only 90 x 57 x 8mm and approximately 45g, the MeshTracker X1 is designed around genuine everyday portability rather than being another development board that needs a separate enclosure and battery.

It can be worn on a lanyard, attached to a backpack or bike bag, or simply carried in a pocket, making it suited to hiking, cycling, outdoor events and other situations where cellular coverage cannot be relied upon.

Position and Altitude

Dual-Band L1 + L5 GNSS

MeshTracker X1 uses dual-band L1 + L5 GNSS rather than a basic single-band receiver, providing more robust positioning capability for location sharing over a Meshtastic network.

A built-in air-pressure sensor adds barometric altitude information, while position data can be shared with other nodes through Meshtastic.

Next-Generation LoRa

Powered by Semtech LR2021

At the heart of the X1's radio system is the Semtech LR2021, supporting operation across 863 to 928MHz with a maximum transmit power of 22dBm.

Seeed specifies sensitivity down to -141dBm and FLRC data rates of up to 2.6Mbps. The newer radio platform is also intended to provide a foundation for possible future higher-data-rate features such as voice and image transmission.

In Seeed's 915MHz open line-of-sight testing, communication distances of up to 8km were achieved. Actual range will vary significantly with frequency, terrain, obstructions, antenna orientation, interference and network configuration.

Notifications

Vibration and Sound Alerts

A built-in vibration motor and buzzer provide flexible notification options for incoming activity and device status.

This allows the X1 to remain noticeable in noisy environments while also offering a temporary mute function when audible alerts are not appropriate.

Power and Connectivity

USB-C with 1100mAh Battery

The built-in 1100mAh rechargeable battery provides up to five days of runtime while keeping the device thin enough for everyday carry.

A standard USB Type-C connection is used for charging, firmware updates and debugging.

Highlights

Key Features

  • Card-sized Meshtastic GPS tracker
  • Dual-band L1 + L5 GNSS
  • Semtech LR2021 LoRa chipset
  • 863 to 928MHz hardware frequency range
  • Up to 22dBm transmit power
  • Bluetooth 5.0
  • Nordic nRF52840 main controller
  • Built-in barometric pressure sensor
  • Built-in vibration motor and buzzer
  • RGB status LED
  • Internal GNSS, LoRa and Bluetooth antennas
  • IP66 dust and water protection
  • 1100mAh rechargeable battery
  • Up to 5 days of battery life
  • USB-C charging and firmware interface
  • 90 x 57 x 8mm card-sized enclosure
  • Approx. 45g device weight
Applications

Designed for Off-Grid Communication

OUTDOORS
Hiking and Exploration

Share location and messages through a Meshtastic mesh where cellular coverage may be unavailable.

CYCLING
Lightweight Tracking

Compact dimensions and low weight make the X1 easy to attach to a pack or bike bag.

EVENTS
Group Communication

Useful for teams and groups operating across large sites where independent messaging and position sharing are valuable.

EMERGENCY
Independent Communications

Provides an additional off-grid communication option when conventional mobile infrastructure is unavailable.

Product Information

Seeed Studio SenseCAP MeshTracker X1

Specifications

General

Main Controller Nordic nRF52840
Bluetooth Bluetooth 5.0
LoRa Chipset Semtech LR2021
Frequency Range 863 to 928MHz
Maximum TX Power 22dBm
Specified Sensitivity Up to -141dBm
FLRC Data Rate Up to 2.6Mbps
GNSS Dual-band L1 + L5
Antenna Internal GNSS / LoRa / Bluetooth
Communication Distance Up to 8km in Seeed 915MHz open line-of-sight testing
IP Rating IP66
Dimensions 90 x 57 x 8mm
Device Weight 45g
Operating Temperature -20 to +60°C
Certification CE / FCC / RoHS / TELEC
Sensors

Barometer and Temperature

Air Pressure Range 300 to 1100hPa
Air Pressure Accuracy ±0.03hPa
Air Pressure Resolution 0.06Pa
Temperature Source Read from barometer
Temperature Range -40 to +85°C
Temperature Accuracy ±1°C
Temperature Resolution 0.0006°C
Power

Battery and Charging

Battery Rechargeable high-voltage battery
Capacity 1100mAh
Specified Battery Life Up to 5 days
Battery Monitoring Periodic uplink battery level
Charging Connection USB Type-C
Device Power Input 5V, 0.55A
Battery Power Input 4.4V, 0.22A
Fully Charged Cut-Off Voltage 4.37V
Charging Temperature +5 to +45°C
Interface

Controls and Alerts

RGB LED 1
Buzzer Built in
Vibration Motor DRV2605L
Button Single multifunction button
Operation

Button Functions

Press Once Power on
Press Twice Update node / location information
Press Three Times Switch GPS on / off
Four Clicks Temporarily mute / unmute
Hold for 5 Seconds Power off
Status

LED Indications

  • Green constant: device turning on
  • Green fast blinking: normally running
  • Green slow blinking: charging
  • Green constant while charging: fully charged
  • Red blinking: low power
  • White constant: DFU / bootloader mode
