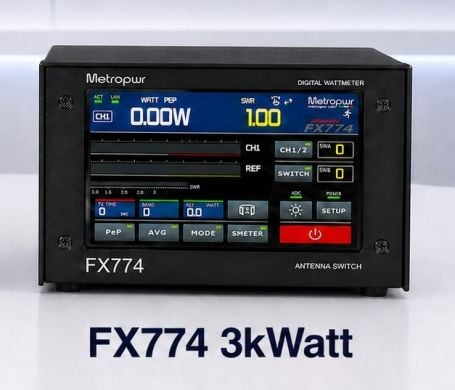

The MetroPWR FX774 is a high-quality digital SWR and power meter for HF and 6m operation, supplied with the Z3 3kW sensor and a built-in USB interface.
Covering 1.8-54MHz, the FX774 provides clear measurement of average power, PEP power, dBm, and SWR through a bright 5 inch TFT 16K colour touchscreen display. This makes it easy to keep an eye on station power, amplifier output, and antenna matching during operation.
The included Z3 sensor supports power measurement up to 3kW, making this package well suited to serious HF stations, amplifier users, and operators who want accurate, easy-to-read power and SWR monitoring.
The FX774 operates from a standard 13.8V DC supply and includes a USB interface, with LAN available as an optional extra.
Key Features
- Digital SWR and power meter for HF and 6m
- Supplied with Z3 3kW sensor
- Built-in USB interface
- LAN optional
- 1.8-54MHz coverage
- 5 inch TFT 16K colour touchscreen display
- Measures AVG power, PEP power, dBm, and SWR
- Approx. 5% power accuracy after calibration
- Approx. 5% SWR accuracy after calibration
- 30dB directional coupler directivity
- 13.8V DC operation
- Ideal for HF stations, amplifier setups, and accurate station monitoring
Specifications
| Specification | Details |
|---|---|
| Model | MetroPWR FX774 USB |
| Included sensor | Z3 3kW sensor |
| Frequency coverage | 1.8-54MHz / 160m-6m |
| Display | 5 inch TFT 16K colour touchscreen |
| Measurements | AVG power, PEP power, dBm, and SWR |
| Power range | Up to 3kW with included Z3 sensor |
| SWR accuracy | Approx. 5% after calibration |
| Power accuracy | Approx. 5% after calibration |
| Coupler directivity | 30dB |
| Interface | USB |
| Optional interface | LAN |
| Operating voltage | 13.8V DC |
| Dimensions | 200 x 120 x 110mm |
| Weight | Approx. 500g |
Package Includes
- 1 x MetroPWR FX774 digital SWR/power meter with USB interface
- 1 x MetroPWR Z3 3kW sensor
