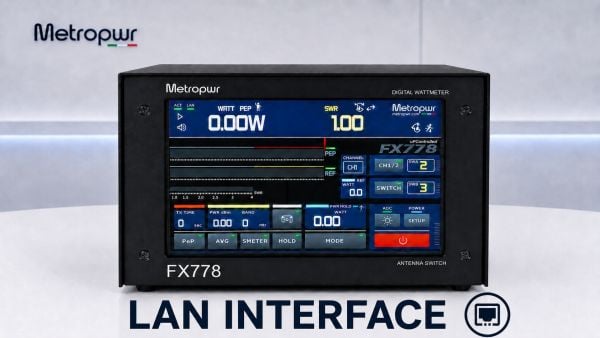

The MetroPWR FX778N is a high-quality digital SWR and power meter for HF and 6m operation, supplied with the Z3 3kW sensor and built-in LAN interface.
Covering 1.8-54MHz, the FX778N provides clear measurement of average power, PEP power, dBm, and SWR through a large 7 inch TFT colour touchscreen display. The bright 16K colour screen makes it easy to monitor station power and antenna matching at a glance.
The included Z3 sensor supports power measurement up to 3kW, making this package suitable for serious HF stations, amplifier users, and operators who want accurate, easy-to-read power and SWR monitoring.
With its LAN interface, the FX778N is ideal for more advanced station setups where network connectivity is required.
Key Features
- Digital SWR and power meter for HF and 6m
- Supplied with Z3 3kW sensor
- Built-in LAN interface
- 1.8-54MHz coverage
- Large 7 inch TFT 16K colour touchscreen display
- Measures AVG power, PEP power, dBm, and SWR
- Approx. 5% power accuracy after calibration
- Approx. 5% SWR accuracy after calibration
- 30dB directional coupler directivity
- 13.8V DC operation
- Ideal for HF stations, amplifier setups, and accurate station monitoring
Specifications
| Specification | Details |
|---|---|
| SKU | METROPWR-FX778N-3 |
| Model | MetroPWR FX778N |
| Included sensor | Z3 3kW sensor |
| Frequency coverage | 1.8-54MHz / 160m-6m |
| Display | 7 inch TFT 16K colour touchscreen |
| Measurements | AVG power, PEP power, dBm, and SWR |
| Power range | Up to 3kW with included Z3 sensor |
| SWR accuracy | Approx. 5% after calibration |
| Power accuracy | Approx. 5% after calibration |
| Coupler directivity | 30dB |
| Interface | LAN |
| Operating voltage | 13.8V DC |
| Dimensions | 200 x 120 x 110mm |
| Weight | Approx. 500g |
Package Includes
- 1 x MetroPWR FX778N digital SWR/power meter with LAN interface
- 1 x MetroPWR Z3 3kW sensor
