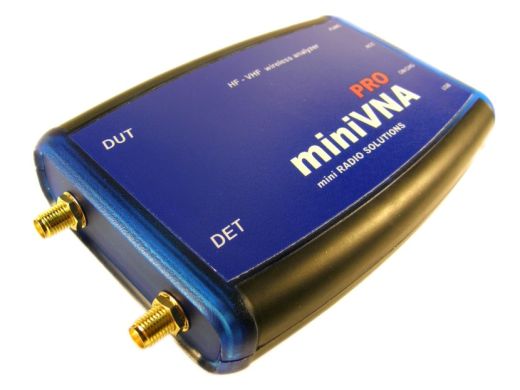

Mini-VNA PRO2 Antenna analyser - NEW VERSION
Improved specs over the standard PRO. Frequency range: 10kHz - 230MHz Improved Bluetooth connection. New 24bit ADC Up to 100db of Dynamic Range. The...
Read More
£469.96 £391.63
Availability: In stock

Seen this product cheaper elsewhere?

Call 0345 2300 599
Improved specs over the standard PRO.

Frequency range: 10kHz - 230MHz
Improved Bluetooth connection.
New 24bit ADC Up to 100db of Dynamic Range.

The miniVNA PRO, the big brother of the well-known miniVNA, is an extraordinary and unique handheld Vector Network Analyzer that makes available a multitude of features and capabilities which are perfect for checking antennas and RF circuits for hams and commercial users.Together with your PC/Laptop, you can add to your laboratory the further advantages of having this first-class VNA instrument.

This is the world’s first wireless analyzer capable of scanning and sending the data using an integrated Bluetooth module to a remote PC/Notebook/Tablet/Smartphone up to 100 meters from the miniVNA PRO’s location, as well as via USB.

This makes real-time antenna setup easy!

  • – I/Q DDS Generator 2 channels AD9958 by Analog Devices
  • – Two separate buffered RF output I/Q for SDR experiment and IMD test with independent 0-55 dB attenuator; Phase adjustment resolution of 1 degree.
  • – Full phase measurement
  • – Power save mode
  • – Accessory port for future optional interfaces
  • – SMA connectors for better isolation
  • – Calibration using open-short-load for accurate results
  • – Measurements of motional crystal parameters, cable length, & more
  • – Two ports VNA with S11 and S21; displayed and save results
  • – Export data in several formats like JPEG, EXCEL, ZPLOT, S2P, PDF
  • – Boot loader for future firmware upgrades
  • – User friendly interface for PC Windows Linux and Mac
  • – Integrated Smith chart in software
  • – Android app. for management via Smartphore or Tablet

Manual miniVNA PRO Hardware

Software for MiniVNA by DL2SBA
