Red Pitaya SDRlab 122-16 Internal Clock Starter Kit

Professional-grade SDR digitiser and processing platform, tailored for serious experimenters, RF engineers, and advanced amateur radio operators.

Internal Clock Version

This edition of the SDRlab 122-16 uses its own internal 122.88 MHz clock, allowing it to operate without requiring a separate external reference clock source.

The SDRlab 122-16 Internal Clock is based on Red Pitaya’s high-performance SDRlab platform and uses the on-board oscillator for normal operation.

This makes it a self-contained platform for demanding RF applications while retaining the processing performance and flexibility expected from the SDRlab range.

Key Features and Advantages

Designed for Experienced Users

Intended for those who understand SDR architecture, signal processing, and advanced radio experimentation.

Tailored for RF and Amateur Radio

Excellent for HF and 50 MHz SDR transceiver operation, spectrum analysis, and signal processing research.

Internal Clock Operation

Uses the on-board 122.88 MHz clock source, with no external clock required for normal operation.

HPSDR Compatible

Hardware integration with the widely used High-Performance Software Defined Radio project.

High-Performance ADC and DAC

2 x 16-bit ADC inputs, 50 Ohm, AC coupled, 122.88 MS/s
2 x 14-bit DAC outputs, 50 Ohm, AC coupled, 122.88 MS/s

Wide Frequency Coverage

Inputs

300 kHz to 550 MHz

Outputs

300 kHz to 60 MHz

Powerful Processing

Dual-core ARM Cortex-A9 with Xilinx Zynq 7020 FPGA for real-time DSP and SDR applications.

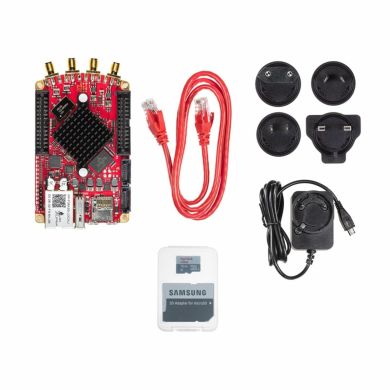

Kit Contents

Red Pitaya SDRlab 122-16 Internal Clock board, RED-SDRLAB-22-16
Compact protective enclosure
16 GB microSD card with Red Pitaya OS preloaded
5 V regulated power supply, EU or UK plug options may vary
Ethernet cable for direct or network connection
USB cable for PC interfacing
Quick start documentation

Quick Specs

Specification	Details
Clock	Internal 122.88 MHz
System Memory	MicroSD, up to 32 GB
Networking	1 Gbit Ethernet
USB	USB 2.0, Wi-Fi dongle supported
RF Inputs	2 ch, 16-bit ADC, 122.88 MS/s, 0.5 Vpp, -2 dBm, 50 Ohm
Input Bandwidth	300 kHz to 550 MHz
RF Outputs	2 ch, 14-bit DAC, 122.88 MS/s, 0.5 V, +4 dBm, 50 Ohm
Output Bandwidth	300 kHz to 60 MHz
Extension Connector	16 digital I/O, 4 analogue inputs, 12-bit, 4 analogue outputs, 12-bit
Interfaces	I2C, SPI, UART
Sync	Trigger via extension, daisy chain via SATA
Weight	0.4 kg
Dimensions	22 x 12 x 7 cm

Important Notice

This is not a plug-and-play device. It is intended for technically skilled users who understand SDR frameworks, networking, DSP and RF integration.
Always consult Red Pitaya’s technical documentation before connecting RF or I/O signals.
