MR1710 SuperWire Radial Set for 17-15-12-10 meters
SKU Part Number:
SUPERANT-MR1710
THIS IS: The model MR1710 SuperWire Radial Set by Super Antenna. It is for all Super Antenna MP1 portable HF antenna systems. Made by Super Antenna,...
Read More
Read More
£40.00
£33.33
Availability: In stock
Seen this product cheaper elsewhere?
Call 0345 2300 599THIS IS: The model MR1710 SuperWire Radial Set by Super Antenna. It is for all Super Antenna MP1 portable HF antenna systems. Made by Super Antenna, designed as part of the /backpack /base /travel /mobile /portable antenna system for Ham Radio. It is for transmitting and receiving on HF radio frequencies.
- SPECIFICATIONS: BANDS: Pre-tuned to 17 meters (18MHz), 15 meters (21MHz), 12 meters (24MHz), 10 meters (28MHz-29MHz). FREQUENCY RANGE: Covers 16.5 MHz to 30 MHz continuous. Also covers WARC bands, CAP, MARS, Marine, CB (26MHz-27MHz), and HF bands (when used with MP1 antenna system or similar vertical antennas). GAIN: +4.5dB over typical ground rod.
- COMPATIBILITY: Fully compatible with all Super Antenna MP1 Antennas and Equipment. Attaches by included push-on connector to Super Antenna mounts (mount not included, sold separately). Deploys in one minute by one person with no tools needed. Compatible with most other vertical antennas and ground planes. Includes spare mating connector for use with other types of antennas.
- SIZE: Packs down to a 6"x4" (15x10cm) compact roll for portability. Extends and fans out to 4 full size quarter-wave wires (1 wire for 17m band, 1 wire for 15m band, 1 wire for 12m/11m band, 1 wire for 10m band). Max wire length: 13 feet (4m). CONNECTOR: Standard push-on spade lug 1/4-inch (6mm) female and #8 Screw ring terminal with screw included. WIRE: Proprietary SuperWire 18AWG 41-Strand PTFE Stealth Teflon. LENGTH: Max wire length: 13 feet (4m).
- WEIGHT: 5 ounces (133grams). POWER RATING: 500W SSB, 300W CW/DATA. COLOR: Stealth Black.
MR1710 SuperWire Radial Set for 17-15-12-10m Bands Specifications
Contents of this product:
- Frequency Range 16.5MHz~39.9MHz
- Rated Power: 500W SSB; 300W CW / DIGITAL
- Portable for backpack, DXpedition, airline, vehicle travel, and Emcomm go-bags
- Small roll up for use with MP1B SuperStick antenna and SuperMounts
- Total Weight: < 0.2 pound (0.1kg)
- Push-on grounding terminals for connection to all SuperMounts
- For /Portable or Backpack, Emcomm, or Temporary use
- For /Pedestrian Mobile dragging wire counterpoise

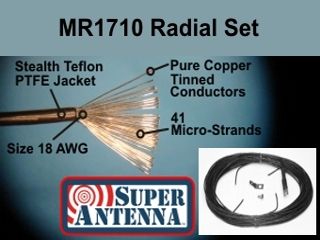

- 18 AWG 41-strand Stealth teflon PTFE SuperWire with black color
- Permanent installation not required, good for stealth or CC&Rs
Contents of this product:
- MR1710 Basic Counterpoise for Portable Vertical Antenna
- 4 SuperWire 18AWG Stealth Teflon PTFE 41-strand wires
- each wire is a fully pre-tuned quarter-wave length to match specified ham bands
- with a push on terminal connector for connection to SuperMount
