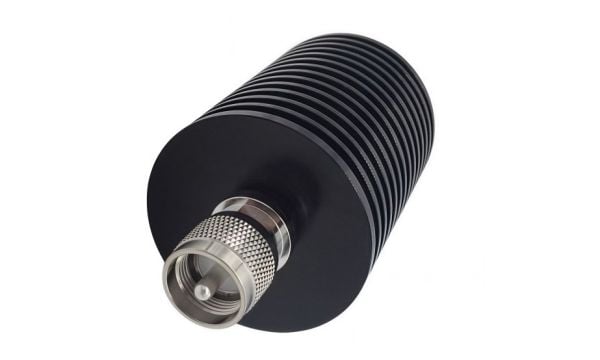

Chelegance JLoad-50 100W RF Dummy Load - PL-259
SKU Part Number:
CH0032527-M
The Chelegance JLoad is a compact and dependable 100 watt RF dummy load designed for safe transmitter testing, tuning and termination across a wide...
Read More
Read More
£25.99
Availability: In stock
Seen this product cheaper elsewhere?
Call 0345 2300 599The Chelegance JLoad is a compact and dependable 100 watt RF dummy load designed for safe transmitter testing, tuning and termination across a wide range of bands. Built around a 50-ohm air-cooled design with a low VSWR of 1.2 or better, it provides a stable and predictable load for both bench work and field use.
Two versions are available. The N type male model covers DC to 3 GHz for UHF and microwave applications, while the PL259 model covers DC to 520 MHz for HF, VHF and UHF use. Both versions offer continuous 50-watt handling and 100w for 5 Seconds. Solid construction and reliable long-term performance. This makes the JLoad-50 an ideal tool for amateur radio operators, engineers and anyone needing a safe way to test transmitters without radiating a signal.
Key Features
• 100 watt continuous power rating
• Two versions available
• N male version covers DC to 3 GHz
• PL259 version covers DC to 520 MHz
• 50 ohm impedance
• VSWR of 1.2 or better
• Passive air cooled design
• Nickel plated copper body
• Silver plated inner conductor
• Suitable for HF, VHF, UHF and microwave testing
Technical Details
• Model JLOAD-50
• Power rating 50 watts continuous 100w 5 Seconds
• Frequency range DC to 520 MHz or DC to 3 GHz depending on model
• Impedance 50 ohms
• VSWR 1.2 or better
• Connector types PL259 UHF male or N male
• Cooling passive air cooled
• Outer body nickel plated copper
• Inner conductor silver plated copper
• Operating temperature minus 55 to plus 125 degrees Celsius
