Grazioli HW10V Half Wave 26 to 30MHz Vertical Antenna
SKU Part Number:
GRAZ-8010020

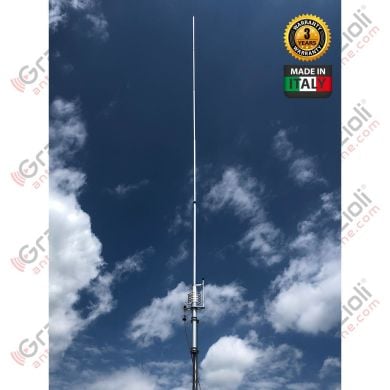

The Grazioli HW10V is a high-performance half wave vertical antenna designed for serious 26 to 30MHz operation. Tunable across the 10m and 11m range,...
Read More
Read More
£209.95
Availability: In stock
Seen this product cheaper elsewhere?
Call 0345 2300 599The Grazioli HW10V is a high-performance half wave vertical antenna designed for serious 26 to 30MHz operation. Tunable across the 10m and 11m range, it offers a strong combination of efficiency, mechanical strength and high power handling in a more compact format than larger 5/8 wave ground plane antennas.
This base-fed 1/2 wave vertical is tuned by adjusting the whip length, with fine adjustment carried out at the base using a PTFE-insulated high voltage variable capacitor. This makes the HW10V straightforward to set up while allowing accurate tuning for your required part of the band.
The antenna is built from cold-drawn AW6063-T66 aluminium alloy tubing, chosen for its excellent strength and precision. The tube sections are manufactured with accurate diameters and wall thicknesses, giving a secure fit with minimal play. Stainless steel AISI-304 and AISI-316 hardware is used throughout for long-term outdoor durability and rust resistance.
The HW10V uses a high Q LC matching circuit, with an air-wound coil and a PTFE-insulated variable capacitor rated for very high voltage. This efficient matching system supports up to 3kW continuous power in all modes, while the DC grounded coil helps reduce static build-up and atmospheric noise.
A custom Grazioli 50 ohm UHF female connector is fitted, using PTFE insulation and a 24K gold-plated centre pin for excellent reliability. The supplied G-Max stainless steel mounting bracket provides a strong mechanical lock to the support mast, making the HW10V a robust choice for fixed station installations.
Key Features
- Half wave vertical antenna for 26 to 30MHz
- Suitable for 10m and 11m operation
- Tunable by adjusting whip length
- Fine tuning at the base via PTFE-insulated variable capacitor
- Maximum power handling of 3kW continuous, all modes
- Omnidirectional vertical radiation pattern
- High Q LC matching circuit connected to DC ground
- Cold-drawn AW6063-T66 aluminium alloy construction
- AISI-304 and AISI-316 stainless steel hardware
- Custom 50 ohm UHF female connector
- PTFE insulation and gold-plated centre pin
- Rugged G-Max stainless steel mounting bracket
- Supplied with detailed assembly manual
- Serial number identifies production batch and construction data
Construction Details
The HW10V uses precision AW6063-T66 aluminium alloy tube sections, with fibreglass, brass and PTFE components used in the matching and insulating areas. The vertical sections include a 42 x 2mm anchor tube, followed by 29 x 1.5mm, 25.5 x 1.5mm, 22 x 1.25mm, 19 x 1.25mm and 16 x 1.25mm tube sections. The white fibreglass insulator measures 38mm diameter with a 4.2mm wall thickness.
Installation Notes
The Grazioli HW10V should be installed on a suitable mast with clear space around the antenna. As with all high-power vertical antennas, use good quality coax, secure mechanical mounting and proper weatherproofing for the best long-term performance.
Technical Specifications
| Specification | Details |
|---|---|
| Type | 1/2 wave end fed vertical dipole |
| Frequency range | Tunable from 26 to 30MHz |
| Impedance | 50 ohms unbalanced |
| Radiation pattern | Omnidirectional |
| Polarisation | Linear, vertical |
| Gain | 0dBd, 2.15dBi |
| SWR at resonance | 1.2:1 or better, typically 1.1:1 or better |
| Bandwidth at 2:1 SWR | 1.7MHz or better at 28MHz |
| Maximum power | 3000W continuous, all modes |
| Matching system | High Q LC circuit, DC grounded |
| Connector | UHF female, 50 ohm, PTFE insulator, gold-plated centre pin |
| Total height | 5.94m |
| Radiating element length | 5.38m |
| Mounting pole diameter | 40 to 54mm |
| Wind resistance | 130km/h without ice |
| Wind load at 130km/h | 19kgf |
| Net weight | 3.1kg |
| Packed dimensions | 14 x 14 x 145cm |
| Packed weight | 4.3kg |
