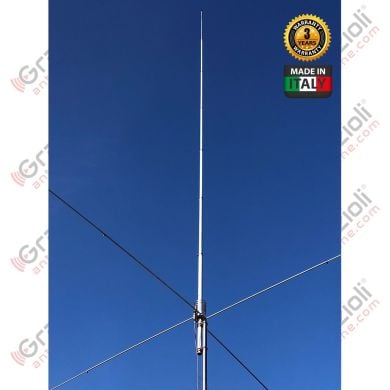

Grazioli FE10V 5/8 Wave 26 to 30MHz Vertical Antenna
SKU Part Number:
GRAZ-8010010
The Grazioli FE10V is a high-performance 26 to 30MHz vertical antenna designed for operators who need serious power handling, excellent mechanical...
Read More
Read More
£229.96
Pre Order
Seen this product cheaper elsewhere?
Call 0345 2300 599The Grazioli FE10V is a high-performance 26 to 30MHz vertical antenna designed for operators who need serious power handling, excellent mechanical strength and strong DX performance. Built as a 5/8 wave ground plane antenna with four full quarter-wave radials, the FE10V is ideal for demanding 10m and 11m installations where efficiency and durability matter.
Grazioli has engineered the FE10V using high quality AW6063-T66 aluminium alloy tubing, a material chosen for its strength, precision and long-term reliability. The cold-drawn tubular sections are manufactured with accurate diameters and wall thicknesses, giving a secure fit between sections with minimal play. All hardware is made from AISI-304 and AISI-316 stainless steel, with additional brass, PTFE and fibreglass components used where required.
The four 2.7m quarter-wave radials are made from sturdy telescopic aluminium sections and are designed to provide a resonant ground plane. This helps reduce the take-off angle compared with shorter non-resonant radial systems, making the antenna particularly effective for long-distance DX contacts.
At the heart of the FE10V is a high Q air-wound matching coil, designed for efficient impedance matching and low RF losses. The coil is DC grounded, helping to reduce static build-up and atmospheric noise. Combined with the antenna’s custom Grazioli UHF female connector, with PTFE insulation and a gold-plated centre pin, the FE10V is built to handle up to 5kW continuous power in all modes.
Key Features
- High-performance 5/8 wave vertical antenna for 26 to 30MHz
- Suitable for 10m and 11m operation
- Four full quarter-wave 2.7m radials
- Low radiation angle for improved DX performance
- Maximum power handling of 5kW continuous, all modes
- Tunable across 26 to 30MHz
- High Q air-filled matching coil connected to DC ground
- Rugged AW6063-T66 aluminium alloy tube construction
- AISI-304 and AISI-316 stainless steel hardware
- Custom 50 ohm UHF female connector with PTFE insulation
- Gold-plated centre pin for long-term reliability
- Supplied with fibreglass radial reinforcements
- Strong G-Max stainless steel mounting bracket
- Designed for long-term fixed outdoor installations
Construction Details
The FE10V is built from cold-drawn AW6063-T66 aluminium alloy tubing, chosen for its strength and precision. The antenna also uses fibreglass reinforcement, brass, PTFE and stainless steel components throughout. The radial system is secured using U-bolts and self-locking nuts, while the stainless steel G-Max bracket provides a strong mechanical fixing to the support mast.
Installation Notes
The FE10V should be installed on a suitable support mast with clear space around the antenna and radials. As with all high-power vertical antennas, careful installation, secure weatherproofing and good quality coaxial cable are important for best performance and long-term reliability.
Technical Specifications
| Specification | Details |
|---|---|
| Type | 5/8 wave ground plane with 4 quarter-wave radials |
| Frequency range | Tunable from 26 to 30MHz |
| Impedance | 50 ohms unbalanced |
| Radiation pattern | Omnidirectional |
| Polarisation | Linear, vertical |
| Gain | 1.5dBd, 3.65dBi |
| SWR at resonance | 1.2:1 or better, measured at connector |
| Bandwidth at 2:1 SWR | 1.4MHz or better at 26MHz, 1.6MHz or better at 30MHz |
| Maximum power | 5000W continuous, all modes |
| Matching system | High Q air-filled matching coil, DC grounded |
| Connector | UHF female, 50 ohm, PTFE insulator, gold-plated centre pin |
| Total height | 7.63m at 26MHz |
| Radial length | 2.7m each |
| Mounting pole diameter | 40 to 54mm |
| Wind resistance | 130km/h without ice |
| Wind load at 130km/h | 280N, 28.5kgf |
| Net weight | 6kg |
| Packed dimensions | 14 x 14 x 145cm |
| Packed weight | 7.3kg |
