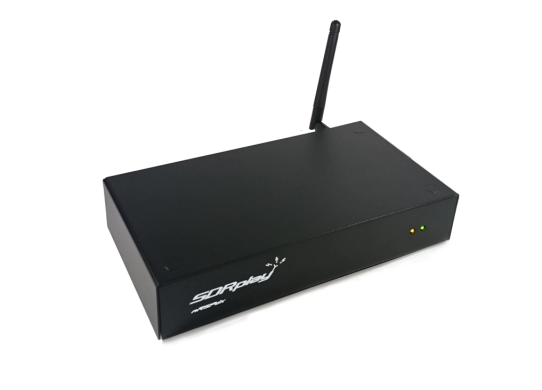

SDR Play nRSP-ST All-in-one, Plug-and-play Networked SDR Receiver
SKU Part Number: SDR-PLAY-NRSP-ST
Data Sheet Download The nRSP-ST is a networked general coverage radio receiver for frequencies from 1kHz to 2GHz with up to 10MHz of spectrum...
Read More
Special Price £399.00 Regular Price £409.00
Availability: In stock
call

Seen this product cheaper elsewhere?

Call 0345 2300 599

Data Sheet Download

The nRSP-ST is a networked general coverage radio receiver for frequencies from 1kHz to 2GHz with up to 10MHz of spectrum visibility.  The nRSP-ST is your own personal remotely accessible SDR which can also be shared with a small number of trusted friends or colleagues.

The nRSP-ST addresses the needs of radio enthusiasts who want a ‘plug-and-play’ solution for remote reception.  As well as achieving this, we have addressed typical internet bandwidth limitations with the creation of a novel “IQ Lite” mode, which efficiently delivers channels of IQ data. We are also introducing the ability to control and store IQ recordings at the remote location.  The nRSP-ST is ideal for anyone wanting a wideband remote receiver without needing computer skills and hours of set-up time and ongoing maintenance at the remote location.

Note to new nRSP-ST users – please go to the special nRSP-ST start page: https://www.sdrplay.com/nRSPstart

The nRSP-ST is a networked general coverage radio receiver for frequencies from 1kHz to 2GHz with up to 10MHz of spectrum visibility.  The nRSP-ST is your own personal remotely accessible SDR which can also be shared with a small number of trusted friends or colleagues.

The nRSP-ST key features:

  • A truly “plug and play” integrated, networked general coverage receiver:
    • Combines a receiver, a host computer and a whole lot more – all in one box!
    • Apply power and connect to the internet (Ethernet or Wi-Fi) and the nRSP-ST is easily accessible from anywhere
    • An Admin tool to provide access to friends or club members, with user IDs, passwords and timeouts
    • Designed for long term continuous usage (no noisy or unreliable cooling fan)
  • The 14-bit ADC full featured wideband SDR receiver covers all frequencies from 1kHz through VLF, LF, MW, HF, VHF, UHF and L-band to 2GHz, with no gaps
  • Remotely monitor up to 10MHz of spectrum at a time from a choice of 3 antennas
  • Multi-platform SDRconnectTM software supports local operation or remote access on Windows, MacOS or Linux platforms
  • The nRSP-ST & SDRconnectTM are configurable for available network bandwidth:
    • In “Full IQ” mode, the nRSP-ST provides IQ data transfer of the visible spectrum bandwidth (e.g. for high-speed LAN or superfast internet connectivity)
    • In “IQ Lite” mode, the nRSP-ST provides IQ data of channels up to 192kHz wide (e.g. for digital decoding by the client)
    • In “Compact” mode the nRSP-ST provides compressed audio and visual display (ideal for slower internet connections)
    • Supports multiple client connections with a simultaneous mixture of connection modes – an admin tool allows you to assign usernames and timeouts to trusted friends or colleagues.
    • All modes support visualization of up to 10MHz spectrum bandwidth
  • Two remote connection options:
    • Use a remote SDRconnect client or
    • Use the built-in web-server for remote access from most up-to-date browsing capable devices, including Android/iOS tablets and phones
  • The nRSP-ST offers the ability to record IQ and audio files to a NAS (network attached storage) device if available on the LAN.
  • Flash upgradable for future feature enhancements

Brochure

nRSP-ST Networked 1kHz - 2GHz Receiver

The nRSP-ST is a truly “plug and play” integrated, networked general coverage receiver that combines a receiver, a host computer, and much more in one unit. Simply apply power and connect to the internet, and the nRSP-ST becomes accessible from anywhere.

The receiver includes a full-featured 14-bit software-defined radio, providing up to 10MHz of spectrum visibility between 1kHz and 2GHz. Ideal for remote operation, it can connect via Ethernet or WiFi, supporting three data transport modes to suit available network bandwidth for LAN or WAN use. The unit is perfect for low-noise environments or locations with access to large outdoor antennas, with ample storage options for large IQ files. SDRplay offers free SDRconnect™ software for Windows, MacOS, and Linux, with the nRSP-ST's built-in web server allowing remote access from any web browser, including on Android/iOS devices.


General Specifications:

  • Product Name: nRSP-ST
  • Dimensions: 200mm x 105mm x 40mm
  • Weight: 800g
  • Frequency Coverage: 1kHz to 2GHz Continuous
  • Ambient Temperature: 25°C; Useable Temperature Range: -10°C to +60°C
  • Environment: Indoor Use

Power Specifications:

  • Typical Current Consumption:
    • USB: 490mA
    • Ethernet: 600mA
    • WiFi: 500mA
  • Supplied Power Supply:
    • Input Voltage Range: 90V AC to 264V AC
    • Frequency Range: 47Hz to 63Hz
    • Output Voltage: +5.1V DC, 3A Max (15.3W)
    • Supplied Power Supply: Multicomp MP001636, USB C connector

Antenna Connections:

  • Antenna A: 1kHz to 2GHz, 50Ω SMA
  • Antenna B: 1kHz to 2GHz, 50Ω SMA, Bias-T specification: 4.7V, 100mA max
  • Antenna C: 1kHz to 200MHz, 50Ω BNC
  • Isolation: 40dB unselected port isolation

Features:

  • Plug-and-play remote access 14-bit SDR receiver covering 1kHz–2GHz
  • Local USB interface or internet (Ethernet/Wi-Fi) connection with various connectivity modes
  • Receive, monitor, and record up to 10MHz of spectrum at a time
  • Three selectable antenna ports and external clock input for frequency accuracy
  • Choice of SDRconnect™ data connectivity modes and simultaneous multi-client connections
  • Access via SDRconnect™ remote client or built-in web-server for devices with a browser
  • Capability to record IQ and audio files to a NAS device if available

Connectivity:

  • Direct USB Connection: USB 2.0 compliant
  • Ethernet: Gigabit, IEEE 1588-2008 compliant with MDI crossover and correction
  • WiFi: 2.4GHz and 5.0GHz, IEEE 802.11b/g/n/ac certified
  • Receiver Reference: 24MHz with 0.5ppm stability from -30°C to +85°C, MCX connector

Compute Engine:

  • Processor: 64-bit Quad Core SoC 1.5GHz
  • Memory: 2GB LPDDR4-3200 SDRAM
  • Storage: 8GB eMMC

Technical Specifications:

  • Maximum Input Power (continuous): 0dBm; (burst): +10dBm
  • Noise Figure: Ranges from 19dB at 300kHz to 5.0dB at 1800MHz
  • Band Filtering & Notch Filters: Selectable MW, FM, and DAB notch filters

Note: PoE (Power over Ethernet) is not provided. An external PoE splitter (Type C Port PoE Splitter Gigabit 5V/2.4A) would be required for this functionality.
