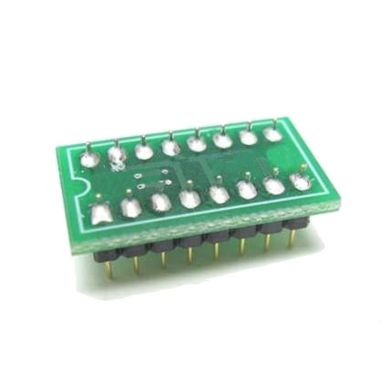

Plug&Play Module SL-MOD-8RY
SKU Part Number: SL-MOD-8RY
This jumper module is compatible with virtually all YAESU radios that use an 8-pin round type Mic jack. For a list of compatible radios please click...
Read More
£9.95 £8.29
Availability: In stock
call

Seen this product cheaper elseware?

Call 0345 2300 599

This jumper module is compatible with virtually all YAESU radios that use an 8-pin round type Mic jack. For a list of compatible radios please click more info.
SLMOD8RY - This jumper module is compatible with virtually all YAESU radios that use an 8-pin round type Mic jack. This includes but is not limited to the radios listed below. Be sure to see the "G1 / G2 Jumper Settings" note below as this may apply to your radio.

Please note that Yaesu 8-pin round type Mic jacks do not provide Speaker Audio, so you'll need to connect an audio cable between the radio and the SignaLink as described in the SignaLink Installation Manual. This cable must be used or you will not be able to receive!

YAESU
FT-107/107M
FT-736/736R
FT-747/757
FT-757GX/767GX
FT-840
FT-847
FT-890
FT-920
FT-950
FT-980
FT-990
FT-1000/1000D
FT-1000MP
FT-2200
FT-5100

G1 / G2 Jumper Settings - To maintain compatibility with as many radios as possible, this jumper module has two small jumpers that can be set to provide additional Ground ("G") connections needed by some radios (see below). These two jumpers should be installed as follows for the following radios only. Do *NOT* install either jumper if your radio isn't listed below:

Both jumpers "G1" and "G2" should be installed for the FT-890, FT-980, FT-990, FT-1000 and the FT-1000D.

Only jumper "G1" should be installed for the FT-847, FT-920, FT-950 and FT-1000MP.
