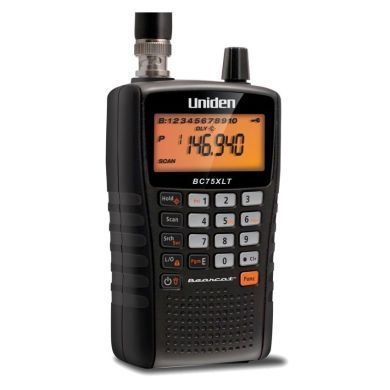

Uniden UBC-75XLT 25 - 88MHZ - 108-174MHZ 400-512 Handheld Scanner
SKU Part Number: UBC-75XLT
Uniden UBC-75XLT (Built in USB Charger) 300 memory programmable channels, close call RF capture with Do-Not-Disturb, automatic close call detection...
Read More
£119.95 £99.96
Pre Order
call

Seen this product cheaper elseware?

Call 0345 2300 599

Uniden UBC-75XLT (Built in USB Charger) 300 memory programmable channels, close call RF capture with Do-Not-Disturb, automatic close call detection and tune into nearby transmission, 10 pre-programmed service searches, 10 custom search ranges, channel priority with Do-Not-Disturb, temporary lockout, PC programming, battery save and low battery alert, scan/search delay/resume options, quick and turbo search facility, triple conversation circuit, key confirmation tones, three power options and many more.

Key Features/Specifications:

  • Channels: 300 Channels
  • Frequency Range: 25 - 512MHz
  • Frequency Steps: 5/6.25/8.33/10/12.5
  • Banks: 10 (30 channels each)
  • Sensitivity: SINAD 12dB, Nominal
  • Operating Temperature: Normal: -20°C to +60°C : -10°C to +50°C
  • Scan Rate: 90 channels per second
  • Search Rate: Normal: 90 steps per second Hyper: 270 steps per second
  • Close call feature
  • Priority Sampling: 2 seconds
  • Scan Delay: 2 seconds
  • IF Rejection (at 453.25MHz): 80dB
  • Internal Speaker: 24 ohm, 0.8W Max
  • Audio Output: Internal Speaker: 360mW nominal (24ohm)
  • Headphone (L-ch): 4mW nominal (32ohm)
  • Current Drain: Squelched: 120mA
  • Full Output: 280mA
  • Power Requirements: 2 x AA Alkaline Batteries (3VDC) or 2 x AA Rechargeable Ni-MH Batteries (2.4V DC) or Connect to PC with USB cable (5.0V DC 500mA)
  • Antenna: 50 ohms (Impedance)
  • External Jacks: Antenna Jack (BNC Type)
  • Phone Jack (3.5mm)
  • USB Jack (5pin Mini USB B Type)
  • Dimensions: 67mm(W) x 32.7mm(D) x 115mm(H)
  • Weight: 175g (without antenna and battery)
