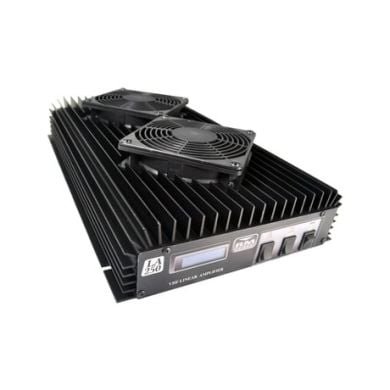

RM Italy LA250V 140-150MHz 200W Linear Amplifier
SKU Part Number:
RM-LA 250V
The RM Italy LA250V is a high-power VHF linear amplifier designed for operation across 140-150MHz, covering the 2m amateur VHF band. With an output...
Read More
Read More
£699.95
Pre Order
Seen this product cheaper elsewhere?
Call 0345 2300 599
The RM Italy LA250V is a high-power VHF linear amplifier designed for operation across 140-150MHz, covering the 2m amateur VHF band. With an output power of up to 200W and an input drive range of 1-15W, 20W maximum, it is suitable for operators who require additional VHF power for SSB, CW, AM, FM and narrowband data modes.
The amplifier uses four Mitsubishi RD70HVF1 MOSFETs mounted on a copper heat spreader for efficient thermal transfer and reliable performance. It can be keyed via the external PTT input, or operated without a direct PTT connection using the built-in HF-VOX system.
The front panel LCD display provides useful live operating information, including input power, output power, heatsink temperature and output VSWR. The display backlight intensity can also be adjusted to suit the operating environment.
For protection and diagnostics, the internal CPU monitors input power, temperature and VSWR. If a fault condition is detected, the amplifier can automatically prevent transmission to protect the unit. Faults are also recorded for later recall and diagnostic use by the manufacturer or distributor.
Please note that a DC power cable is not included with this amplifier. The LA250V accepts DC wire with stripped ends, so no plug fitting is required. Any suitable twin DC cable may be used, and a compatible DC cable is available separately in the product accessories section.
Key Features
- 140-150MHz VHF linear amplifier
- Suitable for the 2m amateur VHF band
- Up to 200W maximum output power
- 1-15W RF input drive, 20W maximum
- Suitable for SSB, CW, AM, FM and narrowband data modes
- Uses 4 x Mitsubishi RD70HVF1 MOSFETs
- Copper heat spreader for improved thermal performance
- External PTT input
- Built-in HF-VOX operation
- LCD display showing input power, output power, heatsink temperature and output VSWR
- Adjustable LCD backlight intensity
- CPU-controlled protection system
- Fault recording for diagnostic recall
Specifications
| Specification | Details |
|---|---|
| Model | RM Italy LA250V |
| Frequency range | 140-150MHz |
| Band coverage | 2m amateur VHF band |
| Output power | 30-210W nominal, 200W maximum AM/FM/CW |
| Input power | 1-15W, 20W maximum |
| Modulation modes | SSB, CW, AM, FM, data and other narrowband modes |
| Transistors | 4 x Mitsubishi RD70HVF1 |
| Power supply | 13V DC +/- 1V, 40A |
| Internal input fuses | 3 x 10A, 5 x 20mm fast blow |
| Maximum bypass power | 50W with amplifier off |
| Input VSWR | 1.1-1.5:1 |
| Maximum output VSWR | 2.8:1 |
| Protection | Reverse polarity, high temperature, load VSWR and excessive input power |
Important Warranty Notice
Do not exceed the maximum input power. RM Italy do not repair amplifiers under warranty where the unit has been damaged by being overdriven, and repair charges can be expensive. If you are unsure whether this amplifier is suitable for your radio or setup, please contact us before use.
