Nooelec NESDR SMArt v5 Bundle - HF/VHF/UHF (100kHz-1.75GHz) RTL-SDR Kit with 3 Antennas. RTL2832U & R820T2-Based Software Defined Radio
SKU Part Number:
NESDR-SMART-KIT
This premium RTL-SDR was designed, developed and fabricated by Nooelec in the USA and Canada. It allows you to turn your computer, phone or tablet...
Read More
Read More
£62.00
Availability: In stock
Seen this product cheaper elsewhere?
Call 0345 2300 599
This premium RTL-SDR was designed, developed and fabricated by Nooelec in the USA and Canada. It allows you to turn your computer, phone or tablet into a radio scanner/ham radio receiver that can receive nearly all RF signals! Compatible with Windows, Mac OS, Linux, and Android.
NESDR SMArt RTL-SDR v5 can be used for the reception of broadcast AM radio, broadcast FM radio, shortwave radio, CB radio, public security radio, trunked radio, air traffic control, ACARS (plane-ground communications), ADS-B (plane tracking), AIS (ship tracking), POCSAG (pagers), NOAA and GOES weather satellites (weather images), weather balloons, radiosondes, DAB radio, DVB-T video, Inmarsat, Iridium, and so much more!
The best-performing low-cost RTL-SDR available anywhere! Compared with RTL-SDR v3, HF SNR is improved by up to 15dB, VHF & UHF SNR is improved by up to 6dB, tuning accuracy is improved by an average of 4x, and the frequency range is expanded all the way down to 100kHz.
v5 has a frequency capability of 100kHz to 1.75GHz and up to 3.2MHz of instantaneous bandwidth. HF reception below 25MHz is accomplished with direct sampling and requires a suitable antenna. We recommend using a Balun One Nine to make a DIY long wire or dipole antenna (sold separately).
Though the direct sampling implementation of NESDR SMArt v5 is much better than any other RTL-SDR, we still recommend using an upconverter like the Ham It Up for a more fulfilling HF experience (sold separately).
With a much narrower form factor than RTL-SDR v3, you can run multiple NESDR SMArt v5 side-by-side with any USB-compliant device, including tightly-spaced embedded devices like the Raspberry Pi.

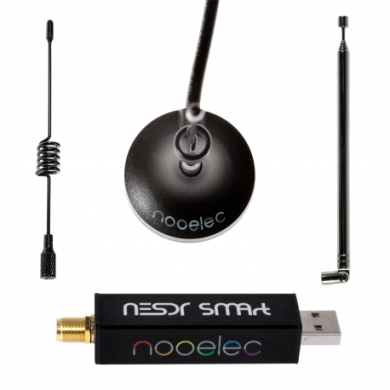

Included:
✔ NESDR SMArt SDR in black brushed aluminum enclosure
✔ Antenna base w/ 2m RG58 cable
✔ Telescopic antenna mast (variable frequency)
✔ 433MHz (ISM) antenna mast (fixed frequency)
✔ UHF antenna mast (fixed frequency)
SDR Specifications:
✔ RTL2832U Demodulator/USB interface IC
✔ R820T2/R860 tuner IC
✔ 0.5PPM, ultra-low phase noise TCXO
✔ RF-suitable voltage regulator
✔ Shielded primary inductor
✔ Integrated custom heatsink
✔ Female SMA antenna input
✔ High-quality black brushed aluminium enclosure
Antenna Specifications:
✔ Wide base with super-strong magnet within base for easy mounting
✔ Low-loss RG58 feed cable
✔ 2m (6.5') cable, twice as long as most low-cost SDR antennas
✔ Male SMA connector for direct connection to the SDR or our other SMA-connected accessories
TCXO Specifications:
✔ Frequency stability: 0.5PPM (max)
✔ Phase noise @1kHz offset: -138dBc/Hz (or better)
✔ Phase noise @10kHz: -150dBc/Hz (or better)
✔ Phase noise @100kHz: -152dBc/Hz (or better)
IMPORTANT NOTES******
Most of you will be using your new device as a software-defined radio (SDR), and not to receive DVB-T video. It is important for you to know that the drivers for using a DVB-T receiver differ from those used for SDR.
As such, if you plan on using as an SDR, you should NOT install any software which may have been shipped with your device, it will be for using the device as a video receiver. Further, any drivers which install automatically (for example, through Windows Update) will not be for SDR purposes and will be incompatible with SDR software.
Specific installation procedures are required for use as an SDR. If you are new to NESDRs, we would recommend taking a quick look at the following guide, HERE
