PTRX7300MK2 RF Interface Module for Icom IC-7300MK2
SKU Part Number:
PTRX7300MK2
The PTRX7300MK2 is a dedicated high impedance RF signal probing module designed specifically for the Icom IC-7300MK2. It provides a clean and...
Read More
Read More
£259.96
Pre Order
Seen this product cheaper elsewhere?
Call 0345 2300 599

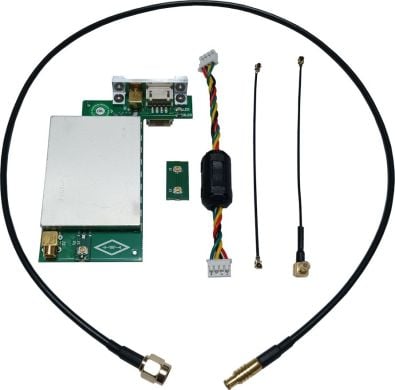

The PTRX7300MK2 is a dedicated high impedance RF signal probing module designed specifically for the Icom IC-7300MK2. It provides a clean and convenient RF output for connecting external SDR receivers, allowing IC-7300MK2 users to enjoy enhanced panadapter and SDR functionality without permanently modifying the radio.
The IC-7300MK2 is already a highly capable HF transceiver, but it does not include a dedicated RF output for use with external SDR receivers. For operators using software such as HDSDR, SDRuno, SDR Sharp, GNURadio, or receivers such as AirSpy, SDRplay, RTL-SDR, or HackRF, the PTRX7300MK2 provides a neat and technically advanced solution.
Building on the success of the original PTRX7300, the PTRX7300MK2 uses an active high impedance current feedback probing technique to sample the bidirectional TX and RX signal line of the IC-7300MK2. Unlike passive splitting methods, this avoids the typical 3 dB insertion loss and does not place a meaningful load on the radio signal path, helping to preserve the radio’s receive and transmit performance.
The PTRX7300MK2 is also designed to preserve external tuner functionality. It uses the external tuner cable connection for power and signal bypassing, allowing users to continue using their compatible external tuner. The unit draws only up to 30 mA from the 13.8 V DC tuner supply, so it does not interfere with normal tuner operation and does not require a separate power supply.
High quality components and carefully selected MCX connectors help maintain clean signal transfer with minimal distortion or attenuation. The result is a compact, purpose built upgrade for IC-7300MK2 owners who want SDR output capability without drilling, cutting, soldering, or making permanent changes to their transceiver.
Key Features
- Designed specifically for the Icom IC-7300MK2
- Provides an RF output for use with external SDR receivers
- Ideal for panadapter and SDR software integration
- Active high impedance current feedback probing design
- No typical 3 dB insertion loss associated with passive splitter methods
- No permanent modification to the radio required
- Preserves external tuner functionality
- Uses the external tuner cable power rail
- Low current consumption of up to 30 mA
- Flat response tested across a wide frequency range
- Suitable for use with SDRplay, AirSpy, RTL-SDR, HackRF, and similar SDR receivers
- Compatible with HDSDR, SDRuno, SDR Sharp, GNURadio, and OmniRig based CAT synchronisation
Ideal For
- IC-7300MK2 owners wanting SDR output functionality
- Operators who want a clean panadapter setup
- Users of external SDR receivers
- Stations using HDSDR, SDRuno, SDR Sharp, GNURadio, or similar SDR software
- Anyone wanting SDR integration without permanently modifying the radio
Technical Specifications
| Specification | Details |
|---|---|
| Model | PTRX7300MK2 |
| Compatible Radio | Icom IC-7300MK2 |
| Function | High impedance RF signal probe and SDR output module |
| Signal Line | IC-7300MK2 TX and RX bidirectional line at J1431 |
| Probe Type | Active high impedance current feedback |
| Radio Modification Required | No permanent modification required |
| Insertion Loss | No typical 3 dB splitter loss |
| Power Requirement | 13.8 V DC via external tuner cable |
| Current Consumption | Up to 30 mA |
| Tested Frequency Range | 30 kHz to 120 MHz |
| IC-7300MK2 Operating Signal Range Referenced | 30 kHz to 74.8 MHz |
| Connector Type | MCX |
| External Tuner Support | Retained through tuner cable bypass design |
| Software Testing | HDSDR with OmniRig CAT control synchronisation |
