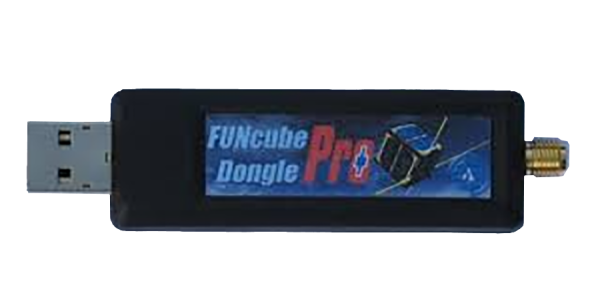

FUNcube Dongle Pro+
SKU Part Number: FUNCUBE-PRO-PLUS
Specifications Guaranteed frequency range: 150kHz to 240MHz and 420MHz to 1.9GHz Typical frequency coverage: 150kHz to 260MHz and 410MHz to...
Read More
£179.99 £149.99
Availability: In stock
call

Seen this product cheaper elsewhere?

Call 0345 2300 599

Specifications

  • Guaranteed frequency range: 150kHz to 240MHz and 420MHz to 1.9GHz
  • Typical frequency coverage: 150kHz to 260MHz and 410MHz to 2.05GHz
  • TCXO specified at 0.5ppm (in practice about 1.5ppm)
  • 192kHz sampling rate
  • Extremely simple hardware setup, just two connections, an “in” and an “out”:
    • Standard SMA female antenna port
    • USB 1.x type A male connection
  • Eleven discrete hardware front end filters including:
    • 6MHz 3dB bandwidth (10MHz at -40dB) SAW filter for the 2m band.
    • 20MHz 3dB bandwidth (42MHz at -40dB) SAW filter for the 70cm band
    • Third- and fifth-order LC bandpass filters for other bands
  • Front end LNA OIP3 30dB
  • Typical noise figures:
    • 50MHz 2.5dB
    • 145MHz 3.5dB
    • 435MHz 3.5dB
    • 1296MHz 5.5dB
  • Typical NFM 12dB SINAD measurements:
    • 145MHz 0.15uV
    • 435MHz 0.15uV
  • No additional drivers required for Linux, OSX or Windows
  • Integrated 5V bias T switchable from software



As part of AMSAT-UK's FUNcube satellite project, the FUNcube Dongle Pro+ is the "ground segment", or a radio receiver designed to allow anyone to try their hand at reception of satellites like FUNcube anywhere on Earth as part of a global educational collaboration project collecting information from space.  The FUNcube Dongle Pro+ isn't just an enhancement it's a total re-design from the ground up.

The NEW  FUNcube Dongle Pro+  plugs into your computer's USB port. It's compatible with many radio reception programs like Rocky, M0KGK, Spectravue and LinRad. The FUNcube Dongle also works with Windows XP, Vista and Windows 7 both x86 and x64. In addition, it is compatible with Linux and MacOS as it uses standard USB drivers already integrated into the operating system.

The new Pro+ gives unlimited access to the frequency range 150kHz to 1900MHz. (250-410MHz ommitted)

It's also all-mode: this means that it's not just limited to narrow band FM reception. As well as data, the FUNcube Dongle Pro+ will also receive many other narrow band signals including AM, FM and SSB. It now has amazing performance on 2m & 70cm thanks to high performance (and expensive SAW filters fitted on board.)
