SO9I Controller 6x1 for 6x1 Antenna Switches
SKU Part Number: SO9I-CTL-6X1
Manual Antenna Switch Controller SO9I Controller 6×1 A compact manual controller for SO9I 6×1 remote antenna switches,...
Read More
£89.95
Availability: In stock
call

Seen this product cheaper elsewhere?

Call 0345 2300 599
Manual Antenna Switch Controller

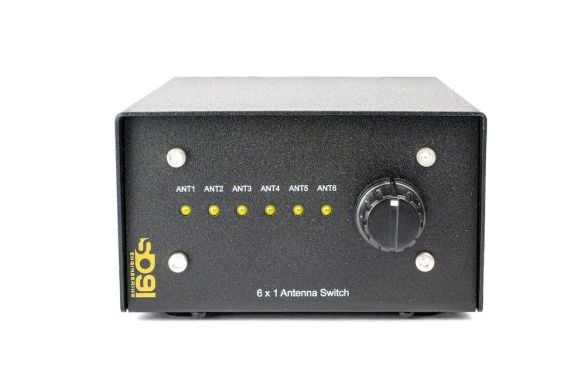

SO9I Controller 6×1

A compact manual controller for SO9I 6×1 remote antenna switches, giving you fast six-position antenna selection and clear front-panel confirmation directly from the operating desk.

Important

Controller Only - DB9 Control Cable Not Included

This listing is for the SO9I Controller 6×1 only. The antenna switch, control cable, power supply, coaxial cables and antennas are not included.

Connection to the antenna switch is made using a standard DB9 control cable, so no proprietary or specialised controller lead is required.

ANTENNAS
6 Positions
Select any one of up to six antennas connected to the compatible remote switch.
CONTROL
Rotary Selector
Move between antenna positions immediately with a simple front-panel rotary control.
INDICATION
LED Confirmation
Clear visual feedback confirms the selected antenna position from the shack.
CONNECTION
D-Sub 9-Pin
Uses a conventional DB9 control connection between the shack controller and antenna switch.
Remote Antenna Selection

Choose the Antenna Without Leaving the Shack

The SO9I Controller 6×1 is designed to operate SO9I's remotely mounted 6×1 antenna switches, allowing one transceiver or feedline to select between as many as six antennas.

Instead of manually changing coaxial cables or walking outside to operate a switch, simply turn the selector on the desktop controller to the antenna you want.

Front-panel LED indication provides an immediate visual check of the selected position, helping keep operation simple and unambiguous.

Six Active Positions

Straightforward One-of-Six Selection

ANT 1
ANT 2
ANT 3
ANT 4
ANT 5
ANT 6
ROTARY CONTROL

Instant Antenna Selection

The controller uses an eight-position rotary switch, with six positions used for antenna selection. Turn the knob to the required antenna and the connected SO9I switch changes to the corresponding port.

LED FEEDBACK

Clear Position Confirmation

The front-panel indication gives you a clear visual check of the selected antenna position, removing uncertainty about whether the remote switch has changed as intended.

Standard Control Connection

Standard DB9 Cable - No Proprietary Lead

The controller connects to the antenna switch through its D-Sub 9-pin socket using a standard DB9 control cable.

The control cable is not included, but the use of a standard connection means there is no need for a dedicated proprietary SO9I cable.

12V DC Operation

Easy to Integrate into the Shack

Power is supplied from 12V DC through a 5.5/2.5mm DC socket, making the Controller 6×1 straightforward to incorporate into a typical amateur-radio station power system.

Useful Upgrade Path

Two Controllers Can Operate a 6×2 Switch

Two Controller 6×1 units can be used together to operate an SO9I 6×2 antenna switch.

This can be useful if you already own a Controller 6×1 and later expand to a two-radio antenna system, or if you simply prefer separate physical controllers for each radio.

Compatible SO9I Switches

Build the System to Suit Your Installation

ML&S SKU Switch Application
SO9I-AS-6X1 Standard 6×1 One radio, up to six antennas
SO9I-EAS-6X1 Outdoor 6×1 Outdoor or mast-mounted installations
SO9I-AS-6X2 6×2 Two radios and up to six shared antennas, using two Controller 6×1 units
COMPACT

155 × 107 × 63mm

Small enough to sit alongside the transceiver, amplifier and other station controls without taking over the operating desk.

DESKTOP WEIGHT

550g

The controller has enough weight to remain stable on the operating desk while still being easy to position where required.

Please Note

Controller Only

This product includes the SO9I Controller 6×1 only. Antenna switch, coaxial cables, DB9 control cable, 12V power supply, antennas and other station accessories are not included unless specifically stated otherwise.

Product Information

SO9I Controller 6×1 Technical Specifications

General

Controller

Manufacturer SO9I
Product Controller 6×1
ML&S SKU SO9I-CTL-6X1
Controller Type Manual remote antenna switch controller
Total Switch Positions 8
Used Switch Positions 6
Control

Antenna Selection

Selection Method Rotary selector
Selectable Antenna Positions 6
Position Indication Front-panel LED indication
Connections

Control & Power

Output Socket D-Sub 9-pin
Control Cable Standard DB9 cable
Control Cable Included No
Supply Voltage 12V DC
Power Socket 5.5/2.5mm DC
DB9 Cable Required

The controller is supplied without the control cable. A suitable standard DB9 cable is required between the controller and compatible SO9I antenna switch.

Compatibility

Compatible Antenna Switches

SO9I-AS-6X1 Standard 6×1 remote antenna switch
SO9I-EAS-6X1 Outdoor 6×1 remote antenna switch
SO9I-AS-6X2 Two Controller 6×1 units may be used together with the 6×2 switch
Physical

Dimensions & Weight

Dimensions 155 × 107 × 63mm
Unit Weight 550g
Boxed Weight 670g
Important

Controller Only

Antenna switch, coaxial cables, DB9 control cable, 12V power supply, antennas and other station accessories are not included unless specifically stated otherwise.
