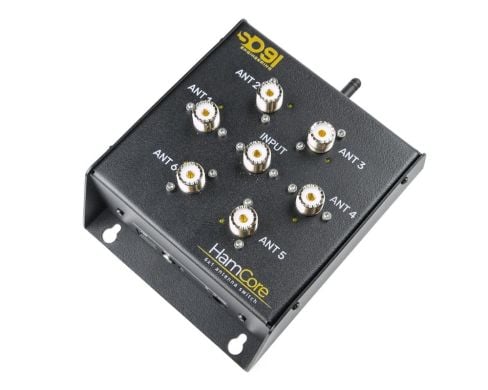

The SO9I HamCore 6x1 Switch is a networked antenna switch designed for automatic selection of up to 6 antennas from a single transceiver.
It offers the same practical antenna-switching convenience as a standard 6x1 switch, but with the control system built in. There is no separate controller required and no additional control cabling to run back to the shack. Simply connect power, connect HamCore to your network, and control it from your browser.
HamCore can be used from almost any modern device, including Windows PCs, MacBooks, iPhones, Android devices, Linux computers, tablets, and smartphones. No dedicated application is required — just use a web browser.
Key Features
- Networked 6x1 antenna switch
- Automatically switches up to 6 antennas from a single transceiver
- No separate controller required
- No additional control cabling required
- Control from any modern web browser
- Works with Windows, macOS, iPhone, Android, Linux, tablets, and smartphones
- Ethernet, Wi-Fi, and Access Point connection modes
- Integrates with FlexRadio, N1MM+, and DXLog
- Antennas can be named and assigned to specific bands
- Supports automatic antenna selection when changing bands
- Separate TX and RX antenna configuration
- PTT protection against hot switching
- PTT input via FlexRadio network connection or RCA connection from a transceiver
- Unused antennas are automatically grounded
- Reinforced copper layer on PCB for improved reliability
- Designed for high-power operation up to 4kW
- Available with UHF connectors
Easy Network Setup
HamCore gives you three connection options, so you can choose the most suitable setup for your station.
| Connection Mode | Details |
|---|---|
| Ethernet | Connects by LAN cable to your router for the most stable operation |
| Wi-Fi | Connects wirelessly to your existing home network |
| Access Point | Creates its own Wi-Fi network for direct connection, ideal where no existing network is available |
Browser-Based Control
HamCore does not require a dedicated control application. Once connected, it can be controlled from a standard web browser on a computer, tablet, or smartphone.
This makes it easy to operate from almost any device without needing special drivers, software, or a particular operating system.
Automatic Antenna Selection
Each antenna can be given a dedicated name and assigned to specific bands. This allows HamCore to automatically select the correct antenna when you change operating band.
Receiving antennas can also be included in the configuration, allowing separate receive and transmit antenna setups where required.
TX and RX Antenna Operation
HamCore supports separate TX antenna and RX antenna configuration.
This is useful for stations that use one antenna for transmitting and another for receiving. Reception can take place on a chosen receive antenna, while the system automatically switches to the selected transmit antenna when the transmitter is keyed.
Integration
HamCore is designed for station automation and can work with:
- FlexRadio
- N1MM+
- DXLog
This allows the switch to acquire operating frequency information and use it for automatic antenna selection.
Protection Against Hot Switching
HamCore includes protection against hot switching. It can receive the PTT signal wirelessly from a FlexRadio system or via RCA connection from another transceiver.
This safeguard helps prevent the antenna switch from changing antenna while RF is being transmitted.
Antenna Grounding
Unused antenna ports are automatically grounded. This helps reduce static build-up and provides an additional layer of protection for your station installation.
As with all antenna systems, this should not be considered a replacement for a properly designed grounding and lightning protection system.
Technical Data
| Specification | Details |
| Product | SO9I HamCore 6x1 Switch |
| Switch type | Networked 6x1 antenna switch |
| Antenna ports | Up to 6 |
| Radio ports | 1 |
| Control method | Browser-based network control |
| Controller required | No |
| Network modes | Ethernet, Wi-Fi, Access Point |
| Compatible control devices | Windows, macOS, iOS, Android, Linux, tablets, and smartphones |
| Software integration | FlexRadio, N1MM+, DXLog |
| Hot switching protection | PTT via FlexRadio or RCA input |
| Connector option | UHF |
| Maximum power | Up to 4kW |
| Antenna grounding | Unused antennas automatically grounded |
Important Note
This listing is for the SO9I HamCore 6x1 Networked Antenna Switch only. Coaxial cables, antennas, network cable, power supply, grounding accessories, and other station equipment are not included unless stated otherwise.
A separate 6x1 controller is not required for HamCore operation.
