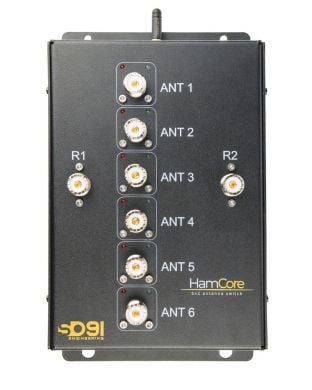

Call 0345 2300 599The SO9I HamCore 6x2 Switch is a networked antenna switch designed for operating 2 transceivers with up to 6 shared antennas.
It is ideal for SO2R and Multi-Operator station setups, where two radios need to access the same antenna system safely and efficiently. Each station has its own independent antenna selection, while built-in protection helps prevent one radio from accidentally taking over an antenna already in use by the other.
Unlike a standard manual antenna switch, HamCore does not require a separate controller. Simply connect power, connect HamCore to your network, configure your antennas, and control the switch from a web browser.
Key Features
- Networked 6x2 antenna switch
- Allows 2 transceivers to share up to 6 antennas
- Ideal for SO2R and Multi-Operator operation
- No separate controller required
- Browser-based control from computer, tablet, or smartphone
- Works with Windows, macOS, iOS, Android, and Linux devices
- Ethernet, Wi-Fi, and Access Point connection modes
- Red and green indication for radio/antenna status
- Protection against accidental antenna hijacking between radios
- Automatic antenna selection based on configured bands
- Supports separate TX and RX antenna configuration
- Integrates with FlexRadio, N1MM+, and DXLog
- PTT protection against hot switching
- Unused antennas are automatically grounded
- Reinforced copper layer on PCB for improved reliability
- Designed for high-power operation up to 4kW
- Available with UHF connectors
Easy Network Setup
HamCore gives you three connection options, allowing it to suit different station layouts.
| Connection Mode | Details |
|---|---|
| Ethernet | Connects by LAN cable to your router for the most stable operation |
| Wi-Fi | Connects wirelessly to your existing home network |
| Access Point | Creates its own Wi-Fi network for direct connection, useful where no network infrastructure is available |
Browser-Based Control
HamCore can be controlled from any modern web browser, with no dedicated application required.
This allows control from a Windows PC, MacBook, iPhone, Android phone, Linux computer, tablet, or smartphone. There are no additional drivers or special control cables required for normal network operation.
Two-Radio Operation
The HamCore 6x2 is designed for two transceivers operating with a shared antenna system.
Each radio can select from the available antennas, while the switch protects against both radios trying to use the same antenna at the same time. This makes it particularly useful for SO2R and Multi-Operator stations where clear and reliable antenna allocation is essential.
Antenna Hijacking Protection
Each station has protection against accidental antenna hijacking by the other radio.
If one radio is already using an antenna, the other radio cannot simply take it over. This helps protect your equipment and keeps operation predictable, especially in busy contest or multi-operator environments.
Automatic Antenna Selection
Each antenna can be assigned a dedicated name and linked to specific bands. This allows HamCore to automatically choose the correct antenna when the operating frequency or band changes.
Receiving antennas can also be included in the configuration, allowing separate receive and transmit antenna setups where required.
TX and RX Antenna Operation
HamCore supports separate TX antenna and RX antenna configuration.
This is useful for stations that use one antenna for transmitting and another for receiving. Reception can take place on a chosen receive antenna, while the system automatically switches to the selected transmit antenna when the transmitter is keyed.
Integration
HamCore is designed for automated station operation and can work with:
- FlexRadio
- N1MM+
- DXLog
This allows the switch to acquire operating frequency information and use it for automatic antenna selection.
Protection Against Hot Switching
HamCore includes protection against hot switching. It can receive the PTT signal wirelessly from a FlexRadio system or via RCA connection from a transceiver.
This safeguard helps prevent the antenna switch from changing antenna while RF is being transmitted.
Antenna Grounding
Unused antenna ports are automatically grounded. This helps reduce static build-up and provides an additional layer of protection for your station installation.
As with all antenna systems, this should not be considered a replacement for a properly designed grounding and lightning protection system.
Technical Data
| Specification | Details |
| Product | SO9I HamCore 6x2 Switch |
| Switch type | Networked 6x2 antenna switch |
| Antenna ports | Up to 6 |
| Radio ports | 2 |
| Control method | Browser-based network control |
| Controller required | No |
| Network modes | Ethernet, Wi-Fi, Access Point |
| Compatible control devices | Windows, macOS, iOS, Android, Linux, tablets, and smartphones |
| Software integration | FlexRadio, N1MM+, DXLog |
| Hot switching protection | PTT via FlexRadio or RCA input |
| Connector option | UHF |
| Maximum power | Up to 4kW |
| Antenna grounding | Unused antennas automatically grounded |
Important Note
This listing is for the SO9I HamCore 6x2 Networked Antenna Switch only. Coaxial cables, antennas, network cable, power supply, grounding accessories, and other station equipment are not included unless stated otherwise.
A separate 6x2 controller is not required for HamCore operation.
