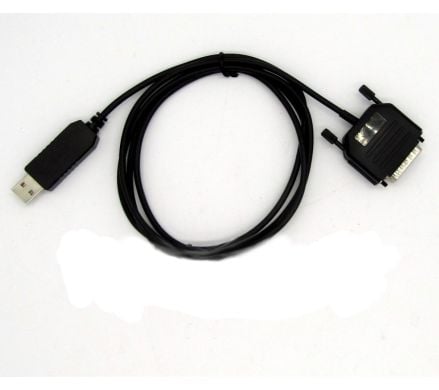

main product photo
FTDI USB CAT Cable for SPE Expert Amplifiers and PC SDR Software
SKU Part Number: SPECATUSB-F
This high quality FTDI USB CAT cable is designed to provide reliable frequency data between your PC SDR software and compatible SPE Expert linear...
Read More
£35.95
Availability: In stock
call

Seen this product cheaper elsewhere?

Call 0345 2300 599

This high quality FTDI USB CAT cable is designed to provide reliable frequency data between your PC SDR software and compatible SPE Expert linear amplifiers. Originally designed for use with Flex transceivers running SmartSDR PC software, it is also suitable for other PC SDR applications that support USB serial CAT control.

The cable allows your SPE amplifier to determine the exact frequency your SDR software is tuned to. The amplifier can then automatically switch to the correct band and, where the amplifier has an internal ATU fitted, recall the appropriate ATU setting from memory.

One end of the cable is fitted with a DB-15 male connector, which plugs into the CAT connector on the SPE Expert amplifier. The other end is fitted with a USB plug for connection to a USB port on your PC. The cable contains a built-in USB to serial converter, so it appears on the computer as a COM, or serial, port.

This cable uses the highly regarded FTDI chipset, known for dependable compatibility with all current versions of Windows and most Linux distributions, although Linux compatibility may vary depending on your system and configuration.

The cable is high quality and screened, also known as shielded, to help reduce interference and maintain reliable communication between your computer and amplifier.

Please note that this cable provides frequency information only. You will also need suitable PTT switching and ALC cables between your transceiver and amplifier.

For amplifier setup, please refer to your SPE Expert amplifier manual or contact SPE support. For PC SDR software CAT setup, please refer to your software manual or contact the software vendor.

Key Features

  • FTDI USB CAT cable for SPE Expert linear amplifiers
  • DB-15 male connector to USB
  • Allows the amplifier to read the frequency from compatible PC SDR software
  • Enables automatic band switching on supported SPE Expert amplifiers
  • Allows ATU equipped amplifiers to recall stored ATU settings from memory
  • Built-in USB to serial converter
  • Appears as a COM, or serial, port on the PC
  • Uses the highly regarded FTDI chipset
  • Compatible with current versions of Windows
  • Suitable for most Linux distributions, depending on configuration
  • Originally designed for Flex transceivers using SmartSDR PC software
  • Also suitable for other PC SDR software with USB serial CAT support
  • High quality screened, shielded cable
  • Approximate length, 1.5m, 4ft 10ins

Compatibility

Suitable for the following SPE Expert linear amplifier models:

  • SPE Expert 1K-FA
  • SPE Expert 1.3K-FA
  • SPE Expert 1.5K-FA
  • SPE Expert 2K-FA

Important Note

This cable only provides frequency information to the amplifier. It does not provide PTT switching or ALC control. Separate PTT and ALC cables are required between your transceiver and amplifier.
