Transceiver Interface Cable for SteppIR
SKU Part Number: 21-60-CONFIG
Use the transceiver compatibility guide below to determine the correct cable for your application. The available cable options are located in the...
Read More
As low as £29.95 £24.96
Availability: In stock
call

Seen this product cheaper elseware?

Call 0345 2300 599

Use the transceiver compatibility guide below to determine the correct cable for your application. The available cable options are located in the Cable Type drop down above. Transceiver Interface required.

  • Transceiver Compatibility Guide

    ICOM


    Radio Model Part Number Cable Type Plug Type Interface Port Notes

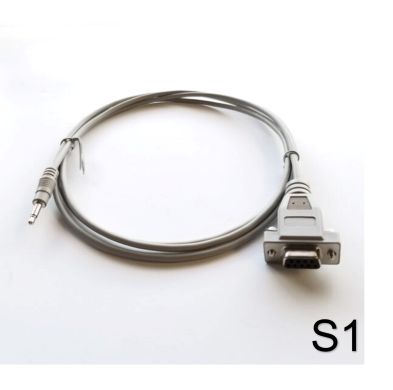

    All ICOM 21-6001-01 S01 3.5mm Phono CI-V logging

    Kenwood


    Radio Model Part Number Cable Type Plug Type Interface Port Notes
    TS850S 21-6015-01 S15 6 pin din ACC1
    TS940S 21-6015-01 S15 6 pin din ACC1 Requires optional IF-10B
    TS950S 21-6015-01 S15 6 pin din ACC1
    TS680S 21-6015-01 S15 6 pin din ACC1 Requires optional IF-10C
    TS690S 21-6015-01 S15 6 pin din ACC1
    TS440S 21-6015-01 S15 6 pin din ACC1 Requires optional IC-10C
    TS450S 21-6015-01 S15 6 pin din ACC1
    TS140S 21-6015-01 S15 6 pin din ACC1 Requires optional IF-10C
    TS711S 21-6015-01 S15 6 pin din ACC1 Requires optional IF-10A
    TS790S 21-6015-01 S15 6 pin din ACC1
    TS811A 21-6015-01 S15 6 pin din ACC1 Requires optional IF-10A
    R5000 21-6015-01 S15 6 pin din ACC1 Requires optional IC-10
    TS570 21-6018-01 S18 9 pin male cross
    TS870 21-6018-01  S18 9 pin male RTS    Requires Kenwood Cable
    TS2000 21-6018-01  S18  9 pin male RTS
     TS50S 21-6018-01  S12  9 pin male cross    Requires optional IF-10D
    TS480 21-6018-01  S18  9 pin male RTS
    TS450D 21-6018-01  S18  9 pin male RTS
    TS990  21-6018-01  S18  9 pin male RTS
    TS590S 21-6018-01 S18 9 pin male cross

    Yaesu


    Radio Model Part Number Cable Type Plug Type Interface Port Notes
    FT847 21-6012-01 S12 9 pin male cross CAT
     FT897 21-6013-01 S13 9 pin M to F

    CAT

     Requires CT-62
    FT857 21-6013-01 S13 9 pin M to F  CAT
    FT920 21-6018-01 S18 9 pin CAT May require S00 in some cases
    FT990 21-6013-01 S13  9 pin CAT May require S00 in some cases
    FT991 21-6018-01  S18  9 pin male RTS  CAT Requires transceiver interface firmware 9E or later. Select "FT9000D" in the transceiver setup menu.
    FT950  21-6018-01 S18  9 pin  CAT ROM of version -04 or later ONLY
    FT1000D  21-6013-01 S13  9 pin  CAT Requires FIF-232 interface; may use the S19 25 pin in some cases
    FT1000MP  21-6018-01  S18  9 pin  CAT Same with FIELD models; may use s00 in some cases
    FT2000  21-6018-01  S18  9 pin male RTS  CAT
    FT5000  21-6018-01  S18  9 pin male RTS  CAT
    FT9000DX 21-6018-01  S18  9 pin male RTS  CAT
    FTDX101D 21-6018-01  S18  9 pin male RTS  CAT Requires transceiver interface firmware 9E or later. Select "FT9000D" in the transceiver setup menu.

    Elecraft


    Radio Model Part Number Cable Type Plug Type Interface Port Notes
     K2 21-6026-01 S26  9 pin M to F    Needs K2 serial kit
    K2 + ser kit  21-6026-01 S26  9 pin M to F    Select Kenwood 4800 baud
    K3  21-6026-01 S26  9 pin M to F
    KX3  21-6028-01 S28  3.5 mm phono

    Ten Tec


    Radio Model Part Number Cable Type Plug Type Interface Port Notes
    Omni 5  NA NA NA NA Does not work
    Omni 6 21-6001-01

     S01

    3.5 mm phono    Has Icom interface; may use the S13
    Omni 7 21-6001-01 S01  3.5 mm phono   Has Icom interface; may use the S13

    Orion

    21-6026-01 S13  9 pin M to F      Requires 57.6 baud; new crystal
    Orion II  21-6013-01 S13  9 pin M to F    Need latest Orion flash
    Pegasus  21-6013-01 S13  9 pin M to F    Not tested. Similar to Orion
    Jupiter  21-6001-01 S01  3.5 mm phono   Has Icom interface; may use the S13

    Flex


    Radio Model Part Number Cable Type Plug Type Interface Port Notes
     All Models  21-6012-01 S12  9 pin male cross   Need a USB-Serial Converter

    Misc


    Radio Model Part Number Cable Type Plug Type Interface Port Notes
     Microham 21-6012-01 S12 9 pin female cross

    Models: Stationmaster & MK2R; may also use s12

    SteppIR 21-6012-01 S12 9 pin female cross    Used for slaving controllers or computer
     Y-Cable 21-6014-01 S14     One XCVR data port to two 9 pin (SteppIR and a computer)
