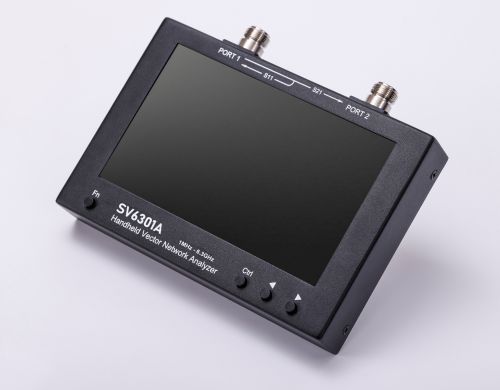

JNCRADIO SV6301A 6G VNA WITH 7'' CAPACITIVE TOUCHSCREEN 1Mhz - 6.3Ghz
SKU Part Number: CH0010011
The SV6301A is a handheld Vector Network Analyzer (VNA) with frequency range of 1Mhz - 6.3Ghz . Software and instuctions...
Read More
Special Price £649.00 £540.83 Regular Price £789.95 £658.29
Availability: In stock
call

Seen this product cheaper elsewhere?

Call 0345 2300 599

The SV6301A is a handheld Vector Network Analyzer (VNA) with frequency range of 1Mhz - 6.3Ghz .

Software and instuctions here:

https://chelegance.github.io/WIKI/METER/SV6301A/SV6301A/



0.5.9 Firmware can be found here

Parameter

Specification

Remark

Frequency range

1MHz ~ 6GHz



RF power out

-40dBm ~ -10dBm

Step: 1dB

RF Connectors

N-type female

Come with N to SMA adaptors

RF power in

-10dBm (Max)

DC<5V

Frequency accuracy

<±5kHz



S21 Dynamic range1

75dB

< 3GHz

65dB

> 3GHz

S11 Dynamic range1

50dB

< 3GHz

40dB

> 3GHz

Scan points

1001

Can be set to 101-1001

Scan speed

500 pts/s

frequency > 25MHz

IFBW

12.5kHz(default)

6.25k/3.12k/1k/300Hz/100Hz/30Hz

Smoothing

Arithmetic mean

Average: 1 ~ 25

Traces

7

4 data traces, 2 reference traces, 1 TDR trace

Markers

8



Calibration state storages

18

Calibration states can be stored as files to the built-in memory card

Storage capacity

8GB

Built-in memory card

Display

7-inch IPS LCD

Resolution: 1024x600

Operation mode

Capacitive touch and physical buttons



Screenshot

On device



Power consumption

6.5W
