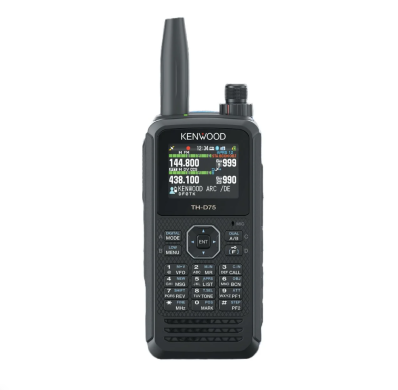

Kenwood TH-D75
SKU Part Number:
TH-D75
The new TH-D75E is the logical evolution of Kenwood's popular TH-D74E duobander. Not only the housing design of the TH-D75E is reminiscent of its...
Read More
Read More
£778.99
£649.16
Availability: In stock
Seen this product cheaper elsewhere?
Call 0345 2300 599
The new TH-D75E is the logical evolution of Kenwood's popular TH-D74E duobander. Not only the housing design of the TH-D75E is reminiscent of its predecessor, but also the UI design and user guidance largely follow the proven concept.
Main Features:
- Integrated digipeater: One of the outstanding features of the KENWOOD TH-D75E is its integrated digipeater. This allows the transceiver to act as a packet data repeater, which is especially useful in situations where the communication range needs to be extended.
- Dual Watch Digital Voice: The TH-D75E offers the Dual Watch Digital Voice (D-STAR) feature, which means you can monitor two digital frequencies simultaneously. This allows you to keep track of multiple important conversations or communication channels without missing important information.
- Wideband Receiver (HF): An exciting feature of the TH-D75E is its wideband receiver, which extends listening capabilities beyond the VHF-UHF bands. You can now explore and tune in to shortwave (HF) frequencies, allowing you to enjoy a wider variety of communication options and experience new aspects of amateur radio.
- Multimode and IF Shift: The TH-D75E is a multimode transceiver, which means it supports multiple communication modes, including analog FM and various digital modes. This gives you the flexibility to adapt to different environments and communication preferences. In addition, the IF shift function allows you to adjust the receive frequency to eliminate interference and improve signal quality.
- Analog and digital APRS: Another highlight is the APRS (Automatic Packet Reporting System) capability of the KENWOOD TH-D75E. In both analog and digital modes, you can use APRS to send and receive position information, text messages, and other data. This feature is especially useful during outdoor activities, emergencies, and search and rescue operations.
- Connectivity and Power: The TH-D75E has a USB-C port that facilitates convenient charging (even on the go with a power bank, for example) and connection to other devices. It also has a built-in TNC (Terminal Node Controller) that allows you to easily connect to APRS systems or other data networks. With an adjustable power from 5W to 100mW, you can adjust the transmit power to suit the situation as needed.
After a long wait, Kenwood has introduced the TH-D75E, a VHF/UHF handset that promises to take amateur radio communications to a new level. Featuring integrated digipeater, dual receive, wideband capability, multimode.
The device complies with IP54/55 standards and is thus protected against the ingress of dust or rainwater, for example.
Technical Data:
| Product Name | TH-D75E |
|---|---|
| TX Power [W] | 5 W |
| Supported Bands | 2m, 70cm |
| Brand | Kenwood |
| Antenna Connector | SMA plug |
| Bluetooth Interface | Yes |
The new TH-D75E is the logical evolution of Kenwood's popular TH-D74E duobander. Not only the housing design of the TH-D75E is reminiscent of its predecessor, but also the UI design and user guidance largely follow the proven concept.
Key Features
| Compatible with the APRS communication protocol, which allows real-time two-way data transmission by using packet communications. The NEW added stand-alone digipeater function enables the TH-D75E to operate as a temporary digipeater station in the fields, allowing APRS coverage to be expanded even in mountainous locations. |
| Compatible with D-STAR amateur radio communications network, developed by the Japan Amateur Radio League (JARL). New is the simultaneous reception of 2 D-STAR signals (one on BAND A, one on Band B). |
| NEW - Reflector Terminal mode for more convenient communications via D-STAR reflectors. |
| Wideband and multimode reception. |
| IF filters for reduced reception interference. |
| IF output mode. |
| Enhanced voice guidance. |
| KENWOOD sound quality. |
| NEW - USB Type-C port. |
Key Features
| Compatible with the APRS communication protocol, which allows real-time two-way data transmission by using packet communications. The NEW added stand-alone digipeater function enables the TH-D75E to operate as a temporary digipeater station in the fields, allowing APRS coverage to be expanded even in mountainous locations. |
| Compatible with D-STAR amateur radio communications network, developed by the Japan Amateur Radio League (JARL). New is the simultaneous reception of 2 D-STAR signals (one on BAND A, one on Band B). |
| NEW - Reflector Terminal mode for more convenient communications via D-STAR reflectors. |
| Wideband and multimode reception. |
| IF filters for reduced reception interference. |
| IF output mode. |
| Enhanced voice guidance. |
| KENWOOD sound quality. |
| NEW - USB Type-C port. |
Supplied With
| Antenna | Yes, , Ferrite Bar Antenna suitable for receiving mid- and low-HF bands |
| Battery | Yes, , KNB-75LA - Li-ion battery (1820 mAh) |
| Belt Clip | Yes |
| Charger | Yes, , supplied with UK (3-pin) for T-type and EU (2-pin) for E-type. |
| Instruction Manual | Yes, , Printed "Basic operations" manual in English, German, French, Italian, Spanish & Dutch |
| Screw Set | Yes, , for belt clip |
Amateur Radio General Features
| 1750 Hz Tone Burst Function. | Yes |
| 8.33KHz spacing on Air Band | Yes |
| Alphanumeric LCD Display | Yes |
| Antenna Socket | SMA |
| APRS Function (via built-in TNC) | Yes |
| Auto Power Off | Yes |
| Automatic Repeater Offset (VHF) | Yes |
| Built-in Packet TNC 1200/9600 bps | Yes, , KISS TNC |
| Built-in GPS | Yes |
| Built-in microSD/SDHC | Yes |
| Built-in USB Type-C | Yes, , USB Serial, USB Audio Output, Mass Storage |
| Built-in Bluetooth | Yes, , HSP, SPP |
| Clock | Yes, , Time/Date Function |
| CTCSS Encoder/Decoder | Yes, , Choice of 50 tones |
| CW Band Width | Yes |
| CW Pitch Frequency | Yes |
| CW Reverse | Yes |
| D-STAR | Yes |
| DCS Encoder/Decoder | Yes, , Choice of 104 digital tones |
| Detect Signal Output | Yes |
| Direct Frequency Entry | Yes |
| DTMF Memory | Yes, , 10 channels, 16 digits |
| Dual Receive | Yes, , VHFxUHF, VHFxVHF or UHFxUHF |
| ECHOLINK Memory Dialer Channels | Yes |
| Firmware Upgradeable via USB Port | Yes |
| FM Radio | Yes |
| Front Panel KeyPad | Yes |
| High-Quality Front Speaker | Yes |
| IF 12 kHz Output | Yes, , to USB Audio |
| Key Beep On/Off | Yes |
| Key Lock | Yes |
| LCD Background Color | Yes, , B/W |
| Memory Channel Lock-out | Yes |
| Memory Channels with Alpha-tagging | 1000 Memory Channels |
| Memory Shift Function | Yes |
| Menu System for individual set-up | Yes |
| Meter Type | Yes, , 3 types |
| Monitor Function | Yes |
| Multiple Scan Functions | Yes |
| Multi-scroll Key | Yes |
| Packet Operation - AX25 and KISS Mode | Yes, , KISS mode only |
| PC Programmable Memories | Yes |
| PC Radio Control Program (Option) | Yes |
| Power-On Message | Yes |
| Programmable Function Keys | Yes, , 2 keys (PF1, PF2) |
| QSO Log | Yes |
| RX Audio Equalizer | Yes, , 5 bands |
| Selectable Repeater Offsets | Yes |
| Separate Squelch for A and B Bands | Yes |
| SSB/CW/AM Reception | Yes |
| SSB Hi-cut Filter | Yes |
| AM Hi-cut Filter | Yes |
| Simultaneous 2 frequency RX | Yes |
| Time-Out Timer | Yes |
| TX Audio Equalizer | Yes, , 4 bands |
| TX/RX Audio Recording | Yes, , microSD/SDHC |
| VOX | Yes |
| Voice Message Memory | Yes |
| Voice Guidance | Yes, (Selectable 4 speeds) |
| Wide/Narrow Deviation Selection | Yes |
| Wide Band Reception | Yes |
Amateur Portable Specification
| RF Output Power (approx.) - High | 5 W |
| RF Output Power (approx.) - Mid | 2 W |
| RF Output Power (approx.) - Low | 0.5 W |
| RF Output Power (approx.) - E. Low | 0.05 W |
| Frequency Range - TX - VHF | 144 - 146 MHz |
| Frequency Range - TX - UHF | 430 - 440 MHz |
| Frequency Range - TX | 144 - 146 MHz, 430 - 440 MHz |
| Frequency Range - Band A | 136 - 174 MHz, 216 - 260 MHz, 410 - 470 MHz |
| Frequency Range - Band B | 0.1 - 76 MHz / 108 - 524 MHz |
| Frequency Range - Band B - FM - W | 76 - 108 MHz |
| Number of Channels | Total 1000 Channels |
| Mode | TX: F3E, F2D, F1D, F7W RX: F3E, F2D, F1D, F7W, J3E, A3E, A1A |
| Mode - Band A | F3E, F1D, F2D, F7W |
| Mode - Band B | F3E, F2D, F1D, F7W, A1A, A3E, J3E, F7W |
| Frequency Stability | +/- 2.0 ppm |
| 13.8 V DC-In Facility | Yes, (use PG-2W or PG-3J) |
| Antenna Impedance - 50 Ohm | Yes |
| Microphone Impedance | 2 kOhm |
| Operating Temperature Range | -10 °C to +50 °C with standard battery |
| Operating Voltage | DC-IN: DC 11.0 - 15.9 V (STD: DC 13.8 V) BATT: DC 6.0 - 9.6 V (STD: DC 7.4 V) |
| Receiver Circuitry | F3E, F2D, F1D, F7W: Double Super Heterodyne J3E, A3E, A1A: Triple Super Heterodyne |
| Receiver Intermediate Frequency - Band-A - 1st IF | 57.15 MHz |
| Receiver Intermediate Frequency - Band-A - 2nd IF | 450 kHz |
| Receiver Intermediate Frequency - Band-B - 1st IF | 58.05 MHz |
| Receiver Intermediate Frequency - Band-B - 2nd IF | 450 kHz |
| Receiver Intermediate Frequency - Band-B - 3rd IF | J3E, A3E, A1A: 10.8 kHz |
| Receiver Sensitivity - A & B Bands | Amateur Band FM 12 dB SINAD FM / NFM 144 MHz Band-A: 0.18 / 0.22 uV FM / NFM 144 MHz Band-B: 0.19 / 0.24 uV FM / NFM 430 MHz Band-A: 0.18 / 0.22 uV FM / NFM 430 MHz Band-A: 0.20 / 0.25 uV DV PN9 / GMSK 4.8 kbps, BER 1% 144 MHz Band-A: 0.20 uV / 0.22 uV DV PN9 / GMSK 4.8 kbps, BER 1% 430 MHz Band-B: 0.22 uV / 0.24 uV SSB 10 dB S/N Band-A: 0.16 uV AM 10 dB S/N Band-B: 0.50 uV |
| Receiver Squelch | Band-A: 0.18 uV Band-B: 0.25uV |
| Receiver Spurious Rejection | 144 MHz - Band-A: 50 dB or more 430 MHZ - Band-A: 50 dB or more 144 MHz - Band-B: 45 dB or more 430 MHz - Band-B: 40 dB or more |
| Receiver IF Rejection | Band-A: 60 dB or more Band-B: 55 dB or more |
| Receiver Channel Selectivity | -6 dB: 12 kHz or more -50 dB: 30 kHz or less |
| Receiver Audio Output | 7.4 V, 10% Dist. 400 mW or more / 8 Ohm |
| Transmitter Maximum Frequency Deviation | FM: +/- 5.0 kHz |
| Transmitter Modulation | FM: Reactance Modulation DV: GMSK Reactance Modulation |
| Transmitter Modulation Deviation | FM: +/- 5.0 kHz NFM: +/- 2.5 kHz |
| Transmitter Spurious Emissions | HI / MID: -60 dBc or less L: -50 dBc or less EL: -40 dBc or less |
| Dimensions | W x H x D with KNB-75L: 56.0 x 121.95 x 32.5 mm - Projections not included - |
| Weight (with battery) | with KNB-75L: 340 g (net) |
APRS Features
| Alert on Special Call | Yes |
| APRS Data Output | Yes, , to a PC via the USB Port or Bluetooth |
| Auto Message Reply | Yes |
| Decay Algorithm | Yes |
| Digipeat Function | Yes |
| Message Memory | Yes, , 100 Messages |
| New-N Paradigm | Yes |
| Packet Data Output | Yes, Yes, to a PC via the USB Port or Bluetooth |
| Proportional Pathing | Yes |
| QSY Function | Yes |
| Received Packet Data Pop-ups | Yes |
| Relay Path Display | Yes |
| SmartBeaconing ™ | Yes |
| State/Section /Region Pathing | Yes |
| Station List Memory | Yes, , lists up to 100 Stations, with filtering and sorting options |
| TX Object, Item Packet | Yes |
| User Phrases | Yes |
| Visible Message Notifications | Yes |
D-STAR Features
| DV Mode | Yes |
| DV Fast Mode | Yes, , USB Interface or Bluetooth |
| DR Mode | Yes |
| Communication Mode | Yes |
| Communication Mode - Direct | Yes |
| Communication Mode - Single Repeater | Yes |
| Communication Mode - Zone | Yes |
| Communication Mode - Gateway | Yes |
| Communication Mode - Refrector | Yes |
| Repeater List, Import/Export | Yes |
| Repeater Information | Yes |
| Callsign List, Import/Export | Yes |
| Near Repeater Stattion Select/Scan | Yes |
| Access Repeater Select | Yes |
| Gateway Route Select | Yes |
| Select TO Station | Yes |
| TX Message | Yes |
| GPS TX Mode | Yes |
| GPS Sentense TX Select | Yes |
| GPS Auto TX for Target Station | Yes |
| Detect FM on DV Mode | Yes |
| RX Popup Message | Yes |
| Direct Reply | Yes |
| Standby Beep | Yes |
| Code SQ | Yes |
| Auto Reply | Yes |
| Auto Reply Voice Select | Yes |
| EMR | Yes |
| RX History | Yes |
| TX History | Yes |
| Late Entry Receive | Yes |
| Packet Loss Display | Yes |
| D-STAR RX AFC | Yes |
| Digital Monitor (MONI Key) | Yes |
| Car Chank Display | Yes |
