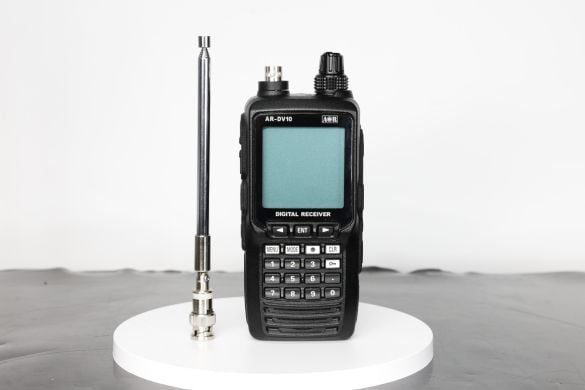

AOR AR-DV10 (USED)
SKU Part Number:
U21036
The product is in good condition, including manual, antenna, battery (the battery is not included in the product warranty), battery charger and...
Read More
Read More
£699.00
Availability: In stock

Seen this product cheaper elsewhere?
Call 0345 2300 599The product is in good condition, including manual, antenna, battery (the battery is not included in the product warranty), battery charger and box.
SPECIFICATIONS
| GENERAL | ||||||||||||||||||||||||||||
| Type: | HF/VHF/UHF receiver/scanner | |||||||||||||||||||||||||||
| Frequency range: | 0.1-1300 MHz (Cellular blocked in the US) | |||||||||||||||||||||||||||
| Tuning steps: | 10 / 50 / 100 / 500 Hz 1 / 2 / 5 / 6.25 / 7.5 / 8.33 / 9 / 10 / 12.5 / 15 / 20 / 25 / 30 / 50 / 100 / 500 KHz |
|||||||||||||||||||||||||||
| Frequency stability: | ±5 ppm @ -10 to +50°C (14 to 122°F) | |||||||||||||||||||||||||||
| Mode: | Analog: AM / FM / NFM / WFM / SSB / CW DV modes:
|
|||||||||||||||||||||||||||
| Channels / memory management: | 2000 regular in 40 banks 40 search banks 1 priority 50 pass per bank or VFO |
|||||||||||||||||||||||||||
| Power supply: | 7-9 VDC (BP-10 or BT-10) or 6.5-10.5 VDC external | |||||||||||||||||||||||||||
| Current drain / power consumption: | 240 mA (Typical), 500 mA (Max) | |||||||||||||||||||||||||||
| Antenna impedance / connector: | 50 ohm / BNC | |||||||||||||||||||||||||||
| Dimensions (W*H*D): | 65*137*41 mm (2.56*5.39*1.61") | |||||||||||||||||||||||||||
| Weight: | 420 g (14.82 oz), with battery pack, antenna & belt clip | |||||||||||||||||||||||||||
| Other features: | Micro-SD card. Digimode autodetect. 10 dB attenuator. Audio recording. IPX5 water resistant. Voice descrambler (Not available for US version). |
|||||||||||||||||||||||||||
| RECEIVER SECTION | ||||||||||||||||||||||||||||
| Receiver system: | Single conversion superheterodyne IF: 47.25 MHz SDR Direct sampling AM, 0.52-1.71 MHz: SDR Direct conversion WFM, 64-108 MHz: SDR Direct conversion |
|||||||||||||||||||||||||||
| Sensitivity: | AM: 1.6 uV (10 dB S/N) FM: 0.3 uV (12 dB SINAD) WFM: 2.6 uV (12 dB SINAD) SSB: 0.3 uV (10 dB S/N) |
|||||||||||||||||||||||||||
| Selectivity: | IF bandwidths: 200 / 500 Hz 1.8 / 2.6 / 3.8 / 5.5 / 6 / 8 / 15 / 30 / 100 KHz |
|||||||||||||||||||||||||||
| Image rejection: | ||||||||||||||||||||||||||||
| AF output power / speaker: | 700 mW at 10% distortion / 16 ohm | |||||||||||||||||||||||||||
| External speaker connector: |
