Call 0345 2300 599Please note: Due to the size and weight of this radio, it is available for collection only from our Staines-upon-Thames showroom. Supplied with its AC power cable and microphone. No original box.

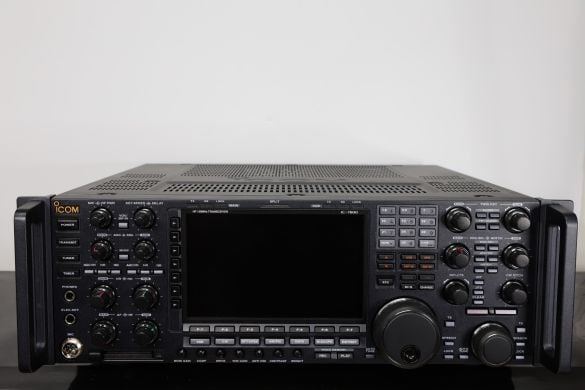

Used Icom IC-7800 HF/50MHz Transceiver - Upgraded Screen
A legendary Icom flagship with the upgraded colour display. A rare opportunity to own one of the finest HF transceivers ever built!
The Icom IC-7800 is a true classic in amateur radio, combining exceptional receiver performance, outstanding build quality and a powerful 200W transmitter. Designed as Icom's flagship HF/50MHz transceiver, the IC-7800 remains a highly sought-after radio amongst serious DXers and enthusiasts.
Featuring two completely independent receivers, an impressive 110dB dynamic range and a +40dBm third-order intercept point, the IC-7800 delivers superb performance, even on the busiest bands.
Four dedicated 32-bit floating-point DSP processors provide advanced digital signal processing, whilst the large 7-inch colour TFT display offers an excellent spectrum scope and comprehensive operating information.
With a built-in automatic antenna tuner, ultra-stable OCXO frequency reference and 200W output, this really is a proper flagship radio!
Key Features
-
200W output power on HF and 50MHz
-
Two completely independent receivers for simultaneous reception
-
Exceptional 110dB receiver dynamic range
-
+40dBm third-order intercept point (IP3)
-
Four 32-bit floating-point DSP processors
-
Large 7-inch colour TFT display with spectrum scope
-
Advanced digital IF filtering and adjustable notch filters
-
Automatic tracking preselector
-
Built-in automatic antenna tuner
-
Ultra-stable OCXO with ±0.05ppm frequency stability
-
Built-in RTTY and PSK31 encoding and decoding
-
Digital voice recorder and CW memory keyer
-
CompactFlash memory card support
-
Built-in AC power supply
Our Used Example - Upgraded Screen!
This particular IC-7800 is one of the later examples featuring the upgraded colour display, sometimes referred to as the Mark III, although this was never an official Icom designation.
The upgraded screen is a particularly desirable feature, offering a lovely bright display without the fading commonly associated with some earlier examples.
The radio is in good condition, with just two small scratches on the top of the case. The two rear feet are missing, but the original carrying handles are fitted.
That's less than £3,000 for a 200W Icom flagship with the desirable upgraded screen!
Please note: Due to the size and weight of this radio, it is available for collection only from our Staines-upon-Thames showroom.
If you've always wanted to own an IC-7800, this is a fantastic opportunity to get your hands on one of Icom's all-time greats!
SPECIFICATIONS
| GENERAL | |||||||||||||||
| Type: | Amateur HF/VHF transceiver | ||||||||||||||
| Frequency range: | TX: 10-160 m + WARC / 6 m RX: 0.03-60 MHz |
||||||||||||||
| Tuning steps: | Down to 1 Hz | ||||||||||||||
| Frequency stability: | ±0.05 ppm @ 0 to 50°C (32 to 122°F) | ||||||||||||||
| Mode: | AM / FM / SSB / CW / RTTY / PSK31 | ||||||||||||||
| Channels / memory management: | 99 regular 2 scan edge Non-volatile EEPROM storage |
||||||||||||||
| Repeater shift / offset: | ±0 to 9.999 MHz in 1 KHz steps | ||||||||||||||
| Power supply: | Mains: 85-265 VAC (3-pin IEC C14 connector) 3 V lithium battery (CR2032) for clock and timer backup |
||||||||||||||
| Current drain / power consumption: | RX: 200 to 210 VA TX: Max 800 VA |
||||||||||||||
| Antenna impedance / connector: | 50 ohm / Four SO-239 & one BNC HF: 16.7-150 ohm with ATU on 6 m: 20-125 ohm with ATU on |
||||||||||||||
| Dimensions (W*H*D): | 424*149*435 mm (16.69*5.87*17.13") | ||||||||||||||
| Weight: | 25 Kg (55.12 lb) | ||||||||||||||
| Other features: | 7" color TFT with VGA output. Auto-ATU. RTTY/PSK31 decoder. DSP. Spectrum scope. DVR. Two USB connectors. +40 dBm ultra high intercept point. CI-V. Electronic keyer. Speech synthesizer. Compact Flash card storage. CTCSS/PL. Four 32 bit DSP's. RS-232C. Twin RX. |
||||||||||||||
| RECEIVER SECTION | |||||||||||||||
| Receiver system: | Double conversion superheterodyne 1st IF: 64.455 MHz (Main and sub) 2nd IF: 36 KHz |
||||||||||||||
| Sensitivity: | AM (10 dB S/N) 0.1-1.8 MHz: 6.3 uV (Preamp 1 on) 1.8-30 MHz: 2 uV (Preamp 1 on) 50-54 MHz: 1 uV (Preamp 2 on) FM (12 dB SINAD) 28-30 MHz: 0.5 uV (Preamp 1 on) 50-54 MHz: 0.32 uV (Preamp 2 on) SSB/CW/RTTY (10 dB S/N) 0.1-1.8 MHz: 0.5 uV (Preamp 1 on) 1.8-30 MHz: 0.16 uV (Preamp 1 on) 50-54 MHz: 0.13 uV (Preamp 2 on) |
||||||||||||||
| Selectivity: | AM (BW: 6 KHz) 6 KHz (-3 dB) 15 KHz (-60 dB) FM (BW: 15 KHz) 12 KHz (-3 dB) 20 KHz (-60 dB) SSB/RTTY (BW: 2.4 KHz) 2.4 KHz (-3 dB) 3.6 KHz (-60 dB) CW (BW: 500 Hz) 500 Hz (-3 dB) 700 Hz (-60 dB) |
||||||||||||||
| Image rejection: | 70 dB | ||||||||||||||
| AF output power / speaker: | 2.6 W at 10% distortion / 8 ohm | ||||||||||||||
| External speaker connector: | 3.5 mm, 8 ohm | ||||||||||||||
| TRANSMITTER SECTION | |||||||||||||||
| RF output power: |
100% duty cycle |
||||||||||||||
| Modulation system: | AM: Low power modulation FM: Phase modulation SSB: PSN modulation |
||||||||||||||
| Max FM deviation (Factory set): | ±? KHz | ||||||||||||||
| Spurious emissions: | HF: Better than -60 dB 6 m: Better than -70 dB |
||||||||||||||
| Microphone impedance / connector: | 600 ohm / 8-pin (Metal locking ring connector) | ||||||||||||||
| Microphone input level: | ? mV |
