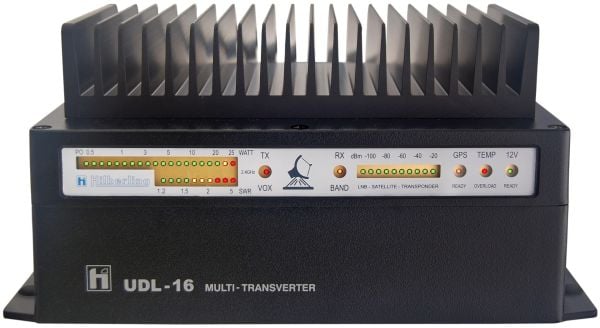

The Hilberling UDL-16 is a high-quality up/downlink transverter designed for satellite communication with the Hilberling PT-8000A, supporting operation via the QO-100 / P4-A Narrowband Transponder.
Built for serious satellite operators, the UDL-16 supports SSB, CW, and data operation, with compatible transceiver bands covering 6m, 2m, 70cm, and 23cm. It provides 16 band combinations, including 4 simplex and 12 duplex configurations via separate RX output, giving operators a flexible solution for QO-100 station integration.
With an IP67 protection rating, the UDL-16 is suitable for both indoor and outdoor installation. It includes a GPS-supported OCXO reference, with a 10MHz REF OUT available for transceiver synchronisation.
Key Features
- Up/downlink transverter for QO-100 / P4-A NB Transponder operation
- Designed for use with the Hilberling PT-8000A
- Supports 6m, 2m, 70cm, and 23cm transceiver bands
- Suitable for SSB, CW, and data modes
- 16 band combinations
- 4 simplex and 12 duplex operating combinations
- Separate RX output for duplex operation
- 20W PEP transmit power at 2.4GHz
- GPS-supported OCXO reference signal
- 10MHz REF OUT for transceiver synchronisation
- IP67 protection class for indoor or outdoor installation
- RS-485 remote control interface
- PTT input
- Active GPS antenna input with 3.3V DC supply
- Protection against overtemperature and SWR greater than 3
- 12-16V DC power input or remote power via TRX coax cable
Supported Transceiver Bands
| Band | Frequency Range |
|---|---|
| 6m | 50.5-51.0MHz |
| 2m | 144.5-145.0MHz |
| 70cm | 432.5-433.0MHz |
| 23cm | 1296.5-1297.0MHz |
Operating Modes
- SSB
- CW
- Data
Transmit / Receive Switching
The UDL-16 provides VHF/UHF transmit and receive switching using:
- Pin diodes
- TX HF-VOX with typically 50dB dynamic range
- 3dB hysteresis
- PTT input
Important Note
The Hilberling UDL-16 is designed for use with the Hilberling PT-8000A and suitable QO-100 / P4-A satellite station equipment.
Additional antennas, feed hardware, dish system, cabling, power supply, and installation accessories may be required depending on your station setup.
Please ensure that your radio, antennas, power supply, and satellite installation are suitable before ordering.
Specifications
| Specification | Details |
| Model | Hilberling UDL-16 |
| Product type | Up/downlink transverter |
| Compatible radio | Hilberling PT-8000A |
| Satellite support | QO-100 / P4-A Narrowband Transponder |
| Protection class | IP67 |
| Installation | Indoor or outdoor |
| Supported bands | 6m, 2m, 70cm, and 23cm |
| Frequency ranges | 50.5-51.0 / 144.5-145.0 / 432.5-433.0 / 1296.5-1297.0MHz |
| Operating modes | SSB, CW, and data |
| Band combinations | 16 total |
| Operation types | 4 x simplex and 12 x duplex via separate RX output |
| Transmit power | 20W PEP at 2.4GHz |
| Output impedance | 50 ohms |
| Filtering | Low pass filter, RBW 10MHz |
| VHF/UHF switching | Pin diodes, TX HF-VOX, and PTT input |
| TX HF-VOX dynamic range | Typically 50dB |
| Hysteresis | 3dB |
| Reference | GPS-supported OCXO |
| Reference output | 10MHz REF OUT for TRX sync |
| VHF/UHF transceiver input power | 25mW-10W PEP adjustable |
| Protection circuits | Overtemperature and SWR greater than 3 |
| Data interface | RS-485 remote control / PTT input |
| GPS antenna input | For active GPS antenna |
| GPS antenna supply voltage | +3.3V DC |
| Power supply | 12-16V DC / 10A |
| Alternative power option | Remote power supply via TRX coax cable |
