Elecraft K3 Fully Loaded 100W (Used)
SKU Part Number: S486
Elecraft K3 Fully Loaded in fair condition with some minor corrosion to rear of the unit (pictured). Complete with power lead, hand mic, and...
Read More
£1,699.00
Availability: In stock
call

Seen this product cheaper elsewhere?

Call 0345 2300 599

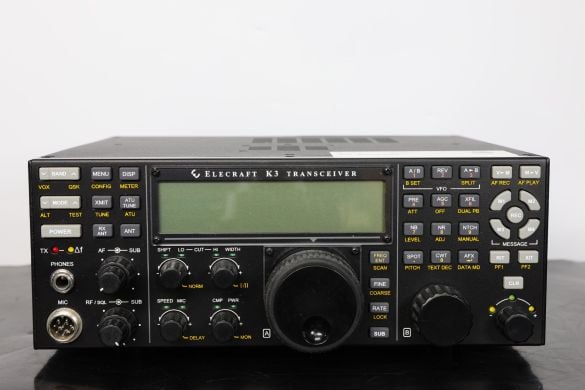

Elecraft K3 Fully Loaded in fair condition with some minor corrosion to rear of the unit (pictured). Complete with power lead, hand mic, and manuals.

Upgraded Synthesiser boards to KSYN3A as in K3S
PR-6 Pre-amp for 6/10m

Fitted with the following options:-
Roofing filters main Rx 6KHz, 2.8KHz. 2.1KHz, 400Hz, 250Hz
Roofing filters sub Rx 2.7KHz, 500Hz
KPA3 100W PA
KRX3 Sub receiver
KAT3 Internal ATU
KBPF3 General coverage Rx filters for main Rx
KXV3 Transverter option
KIO3 Digital I/O module

SPECIFICATIONS

GENERAL
Type: Amateur HF/VHF transceiver
Frequency range: TX: 10-160 m + WARC / 6 m
RX: 0.49-30 / 44-54 MHz
(2 m option)
Tuning steps: 1 / 10 / 20 / 50 Hz
Frequency stability: Standard: ±5 ppm @ 0 to 50°C (32 to 122°F)
Mode: AM / FM / SSB / CW / Data / AFSK
Channels / memory management: 100 regular
4 scratch pad per band
Repeater shift / offset: ±0 to 5000 KHz
Power supply: 11-15 VDC (13.8 VDC nominal)
Current drain / power consumption: RX: 900 mA (Single RX)
TX: Max 22 A
Antenna impedance / connector: 50 ohm / SO-239
Dimensions (W*H*D): 272*102*254 mm (10.7*4*10")
Weight: 3.8 Kg (8.5 lb), without options
Other features: RS-232C. Built-in PSK31/CW/RTTY decoder/encoder. Built-in keyer.
Realtime clock. Transverter interface. 1750 Hz call tone. Two IF DSP.
CTCSS/PL encoder. Graphic equalizer. VOX.
DVR option. Sub RX option.


RECEIVER SECTION
Receiver system: Double conversion superheterodyne
1st IF: 8.2 MHz
2nd IF: ? KHz
Sensitivity: HF: -136 to -138 dBm (MDS)
6 m: -143 to -144 dBm (MDS, with PR6 option)
(Specifications guaranteed only within ham bands)
Selectivity:
Image rejection: 70 dB
AF output power / speaker: 2.5 W at 10% distortion / 4 ohm
External speaker connector: 3.5 mm


TRANSMITTER SECTION
RF output power:
  HF 6 m 2 m*
AM: 0.1-100 W (85 W) 0.1-100 W (70 W) 0.1-10 W
FM: 0.1-100 W (85 W) 0.1-100 W (70 W) 0.1-10 W
SSB (PEP): 0.1-100 W (85 W) 0.1-100 W (70 W) 0.1-10 W
CW: 0.1-100 W (85 W) 0.1-100 W (70 W) 0.1-10 W

* With 2 m option
Modulation system:
Max FM deviation (Factory set): ±5 KHz
Spurious emissions: HF: Better than -50 dB
6 m: Better than -60 dB
