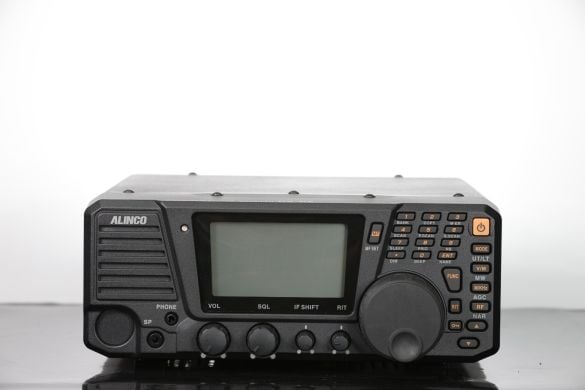

Alinco DX-R8E (Used)
SKU Part Number:
U20356
Alinco DX-R8E in good condition with original box, manual, and AC power supply.
SPECIFICATIONS
GENERAL
Type:
HF...
Read More
Read More
Special Price
£399.00
Regular Price
£425.00
Availability: In stock

Seen this product cheaper elsewhere?
Call 0345 2300 599Alinco DX-R8E in good condition with original box, manual, and AC power supply.
SPECIFICATIONS
| GENERAL | |
| Type: | HF receiver/scanner |
| Frequency range: | Europe and general market 0.15-35 MHz |
| Tuning steps: | 10 / 100 / 500 Hz 1 / 2.5 / 5 / 9 / 10 / 12.5 / 20 / 100 KHz |
| Frequency stability: | ? ppm |
| Mode: | AM / FM / SSB / CW |
| Channels / memory management: | 600 regular in 3 banks with alpha tags 10 quick memories 2 priority |
| Power supply: | 11.7-15.8 VDC |
| Current drain / power consumption: | 0.7-1 A |
| Antenna impedance / connector: | 50 ohm / SO-239 |
| Dimensions (W*H*D): | 240*94*255 mm (9.45*3.7*10") |
| Weight: | 4.1 Kg (9 oz) |
| Other features: | IF shift. NB. Detachable front panel. Serial PC-control. Dimmer. Sleep timer. I/Q output for SDR operation. |
| RECEIVER SECTION | |
| Receiver system: | Double conversion superheterodyne 1st IF: 71.75 MHz 2nd IF: 455 KHz |
| Sensitivity: | AM (10 dB S/N): 0.15-1.8 MHz: 10 uV 1.8-30 MHz: 2 uV NFM (12 dB SINAD): 28-30 MHz: 0.5 uV SSB/CW (10 dB S/N): 0.15-1.8 MHz: 1 uV 1.8-30 MHz: 0.25 uV |
| Selectivity: | AM Narrow: 2.4 KHz (-6 dB) 4.5 KHz (-60 dB) AM/FM: 6 KHz (-6 dB) 18 KHz (-60 dB) SSB/CW: 2.4 KHz (-6 dB) 4.5 KHz (-60 dB) |
| Image rejection: | 70 dB |
| AF output power / speaker: | 2 W at 10% distortion / 8 ohm |
| External speaker connector: | 3.5 mm, 8 ohm |
