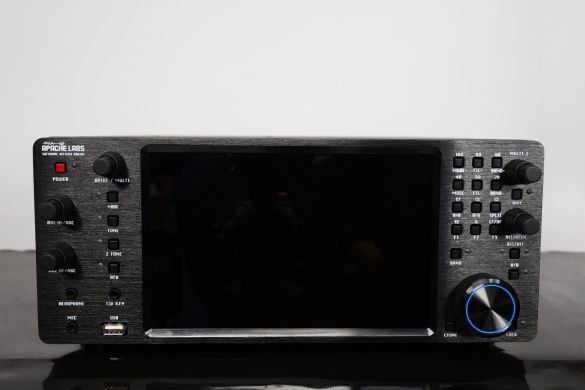

main product photo
Anan G2 (USED)
SKU Part Number: U20482
The product is in good condition, including DC cable and box. General Specifications: Architecture: Direct Sampling DDC/DUC...
Read More
Finance from £92.99 a month
Special Price £3,499.00 Regular Price £3,599.00
Availability: In stock
call

Seen this product cheaper elsewhere?

Call 0345 2300 599

The product is in good condition, including DC cable and box.

General Specifications:

  • Architecture: Direct Sampling DDC/DUC Transceiver
  • Interface: Ethernet and PCIe (Internally)
  • Full Desktop Linux OS
  • Phase Noise (Clock): -149dB @ 10Khz
  • TCXO Stability (Typical): /- .1 PPM
  • Modes: CW, SSB, NFM, AM, Digital
  • Antenna Ports: Three BNC 50 ohms Software Configurable Ports, Three BNC ADC1 Bypass and Loop in ports, One BNC for RX2
  • Frequency Resolution: 1 Hz
  • Anan G2



Electrical Specifications:

  • 13.8v DC @ 25A, 2.5A Receive/25A Transmit



Mechanical Specifications:

  • 7.5Kg (approx. Weight)
  • Dimensions: 314MM (W) x 138MM (H) x 368MM (D) (Not including extrusions).



Receiver Specifications:

  • Receiver Architecture: Direct Down Conversion
  • Dual 16 bit Phase Synchronous ADCs
  • Independent filter banks for each ADC
  • 6M LNAs
  • Frequency Coverage: 9Khz to 60Mhz
  • Attenuator: 1-30dB step attenuator
  • Reciprocal Mixing Dynamic Range (RMDR): 116dB @ 2Khz offset
  • Receiver Phase noise: -149dB @ 10Khz
  • Image rejection: 90dB
  • Hardware support for 10 independent receivers assignable to either ADC



Transmitter Specifications:

  • Transmitter Architecture: Direct Up Conversion
  • DAC Resolution: 16 bit
  • RF Output Power: 100W PEP SSB, FM, RTTY, Digital; 1-30W AM, 100W CW
  • IMD: IMD3 typically -68dB below PEP @ 100W output on 20M
  • Harmonics: Typically better than -43dBc on HF and -60dBc on 6M
  • Carrier and Opposite Sideband Suppression: Better than -80dBc
  • Transverter IF Output: 0db to 15dB



IOs:

  • Audio Barrel Line In, Digital Inputs, PTT in, PTT Out
  • DB9 Seven Software Configurable Open Collector Outputs
  • SMA XVTR, 10Mhz reference Input
  • 3.25mm Barrel Mic, CW Key, Headphones and two Powered Speaker Outputs
  • Mini XLR Mic Input with preamp.
  • RJ45 Ethernet LAN Connector
  • 2 x HDMI 4K Video Outputs
  • 3 x USB Ports
