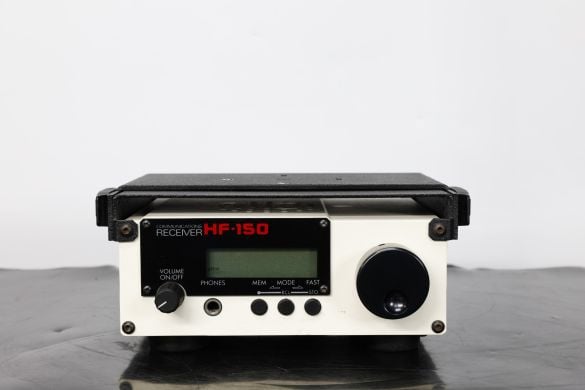

Call 0345 2300 599The product is in good condition, including DC cable. No box or manual.
SPECIFICATIONS
| GENERAL | |
| Type: | HF receiver |
| Frequency range: | 0.03-30 MHz |
| Tuning steps: | 8 Hz (AM-Sync and SSB) 60 Hz (AM) |
| Frequency stability: | Less than 30 Hz per hour at 20°C (68°F) |
| Mode: | AM / Sync-AM / SSB |
| Channels / memory management: | 60 regular Non-volatile EEPROM storage |
| Power supply: | 12 VDC (Eight LR6 / AA batteries) or 10-15 VDC external (Barrel connector, center positive) |
| Current drain / power consumption: | 130-300 mA |
| Antenna impedance / connector: | 50 ohm / SO-239 600 ohm / spring terminals |
| Dimensions (W*H*D): | 185*80*175 mm (7.28*3.15*6.89") |
| Weight: | 1.3 Kg (2.87 lb), without batteries |
| Other features: | Attenuator (20 dB). Charging circuit for NiCd batteries. |
| RECEIVER SECTION | |
| Receiver system: | Double conversion superheterodyne 1st IF: 45 MHz 2nd IF: 455 KHz |
| Sensitivity: | AM (10 dB S/N) 0.05-0.5 MHz: <2 uV 0.5-30 MHz: <1 uV SSB (10 dB S/N) 0.05-0.5 MHz: <1 uV 0.5-30 MHz: <0.5 uV |
| Selectivity: | Narrow filter 2.6 KHz (-6 dB) 4.1 KHz (-60 db) Wide filter 6.5 KHz (-6 dB) 10.2 KHz (-60 dB) |
| Image rejection: | Better than 65 dB |
| AF output power / speaker: | 1.6 W at 5% distortion / 8 ohm |
| External speaker connector: | 3.5 mm |
