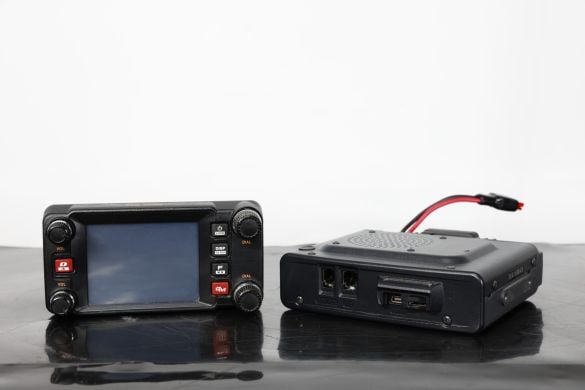

Yaesu FTM-400XDE (USED)
SKU Part Number: U21669
The product is in good condition including DC cable, manual, microphone and box. SPECIFICATIONS GENERAL Type: Amateur VHF/UHF...
Read More
£399.00
Availability: In stock
call

Seen this product cheaper elsewhere?

Call 0345 2300 599

The product is in good condition including DC cable, manual, microphone and box.

SPECIFICATIONS

GENERAL
Type: Amateur VHF/UHF transceiver
Frequency range: Europe
TX: 144-146 /430-440 MHz
RX: 108-1000 MHz
Tuning steps: 5 / 6.25 / 8.33 / 10 / 12.5 / 15 / 20 / 25 / 50 / 100 KHz
Frequency stability: ±2.5 ppm @ -20 to +60°C (-4 to +140°F)
Mode: TX: FM / NFM / DV (C4FM FDMA, 9.6 Kbps)
RX: AM / FM / NFM / DV (C4FM FDMA, 9.6 Kbps)
Channels / memory management: 1000 regular with alpha tags (500 per band)
2 home channels (1 per band)
9 PMS
RAM storage with Li-Ion battery backup
Repeater shift / offset: ±0-99.95 MHz in 50 KHz steps
Power supply: 11.7-15.8 VDC
Current drain / power consumption: RX: 500 mA
TX: Max 12 A
Antenna impedance / connector: 50 ohm / SO-239
Dimensions (W*H*D): Transceiver: 140*40*125 mm (5.5*1.6*4.9")
Controller: 140*72*20 mm (5.5*2.8*0.8")
Weight: Total: 1.2 Kg (2.64 lb)
Other features: Large 3.5" color touch screen. APRS functions. Packet 1200/9600bd ready.
Spectrum scope. ARTS. Built-in GPS. Micro-SD card. Twin RX.


RECEIVER SECTION
Receiver system: Double conversion superheterodyne
1st IF: 47.25 MHz (A-band) - 44.85 MHz (B-band)
2nd IF: 450 KHz
Sensitivity: 140-150 MHz: 0.2 uV (12 dB SINAD)
420-470 MHz: 0.2 uV (12 dB SINAD)
Selectivity: AM/FM
12 KHz (-6 dB)
35 KHz (-60 dB)
Image rejection:
AF output power / speaker: 3 W at 10% distortion / 8 ohm
External speaker connector: 3.5 mm


TRANSMITTER SECTION
RF output power:
  High Mid Low
2 m: 50 W 20 W 5 W
70 cm: 50 W 20 W 5 W
Modulation system: FM: Variable reactance
DV: 4FSK/C4FM
Max FM deviation (Factory set): FM: ±5 KHz
NFM: ±2.5 KHz
Spurious emissions: Less than -60 dB
Microphone impedance / connector: 2 Kohm / 8-pin (Modular)
Microphone input level: ? mV
