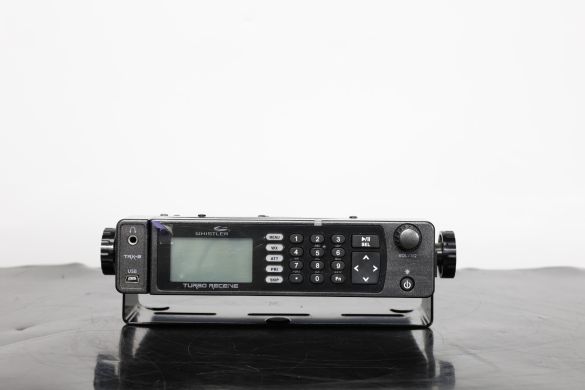

Call 0345 2300 599The product is in good condition, including bracket and power supply. No box or manual.
SPECIFICATIONS
| GENERAL | ||||||||||
| Type: | VHF/UHF receiver/scanner | |||||||||
| Frequency range: | 25-54 MHz 108-174 MHz 216-512 MHz 764-782 MHz 791-797 MHz 806-824 MHz 849-869 MHz 894-960 MHz 1240-1300 MHz (Cellular blocked in the US) |
|||||||||
| Tuning steps: | 3.125 / 5 / 6.25 / 7.5 / 8.33 / 10 / 12.5 / 25 KHz (Depending on band) | |||||||||
| Frequency stability: | ? ppm | |||||||||
| Mode: | Analog: AM / FM / NFM DV modes:
|
|||||||||
| Channels / memory management: | Scans 70 channels per second Object oriented Alpha tags Frequencies and settings load into system RAM from the SD card at power on |
|||||||||
| Power supply: | 12-14.4 VDC Internal rechargeable battery for the clock |
|||||||||
| Current drain / power consumption: | Less than 600 mA | |||||||||
| Antenna impedance / connector: | 50 ohm / BNC | |||||||||
| Dimensions (W*H*D): | 180*45*135 mm (7.12*1.75*5.31") | |||||||||
| Weight: | 950 g (2.09 lb) | |||||||||
| Other features: | Trunking: Motorola, LTR, EDACS. Spectrum sweeper. Discriminator output. Audio recorder. Weather alert. Skywarn. SD card slot. CTCSS/PL and DCS. Dot-matrix LCD (132*65 dots). Clock. |
|||||||||
| RECEIVER SECTION | ||||||||||
| Receiver system: | Triple conversion superheterodyne 1st IF: 380.8 MHz 2nd IF: 21.4 MHz 3rd IF: 455 KHz |
|||||||||
| Sensitivity: | AM (No reference): 108-137 MHz: 0.4 uV 225-380 MHz: Not specified FM (12 dB SINAD): 25-54 MHz: 0.2 uV 137-174 MHz: 0.3 uV 216-300 MHz: 0.4 uV 300-406 MHz: 0.8 uV 406-512 MHz: 0.4 uV 764-960 MHz: 0.5 uV 1240-1300 MHz: 0.5 uV |
|||||||||
| Squelch sensitivity: | ||||||||||
| Noise figure: | ||||||||||
| Selectivity: | ||||||||||
| Image rejection: | ||||||||||
| AF output power / speaker: | 500 mW at ?% distortion / 8 ohm | |||||||||
| External speaker connector: | TS "Minijack" (3.5 mm) |
