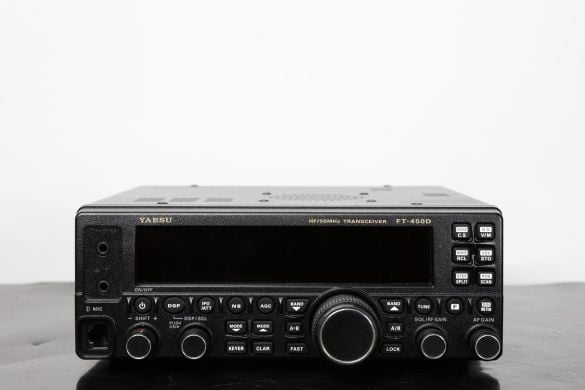

Yaesu FT-450D (USED)
SKU Part Number:
U21813
The product is in good condition, including DC cable, manual, microphone and box.
SPECIFICATIONS
GENERAL
Type:
Amateur HF/VHF...
Read More
Read More
£599.00
Availability: In stock

Seen this product cheaper elsewhere?
Call 0345 2300 599The product is in good condition, including DC cable, manual, microphone and box.
SPECIFICATIONS
| GENERAL | |||||||||||
| Type: | Amateur HF/VHF transceiver | ||||||||||
| Frequency range: | TX: 10-160 m + WARC / 6 m RX: 0.03-56 MHz |
||||||||||
| Tuning steps: | 10 / 100 Hz | ||||||||||
| Frequency stability: | ±1 ppm/hour @ 25°C (77°F), after warmup | ||||||||||
| Mode: | AM / FM / NFM / SSB / CW | ||||||||||
| Channels / memory management: | 500 regular 2 home 2 scan edge pairs 1 QMB 1 Alaska emergency channel 5 fixed 60 m band channels Non-volatile EEPROM storage |
||||||||||
| Repeater shift / offset: | ±0 to 9.99 MHz | ||||||||||
| Power supply: | 13.8 VDC ±10% | ||||||||||
| Current drain / power consumption: | RX: Max 1.5 A TX: Max 22 A |
||||||||||
| Antenna impedance / connector: | 50 ohm / SO-239 | ||||||||||
| Dimensions (W*H*D): | 229*84*217 mm (9.02*3.31*8.54") | ||||||||||
| Weight: | 3.6 Kg (7.94 lb) | ||||||||||
| Other features: | IF-DSP. IPO. VOX. CTCSS/PL with tone search. 10 KHz roofing filter. CW beacon feature. Voice synthesizer. Cloning. Built-in keyer. |
||||||||||
| RECEIVER SECTION | |||||||||||
| Receiver system: | Double conversion superheterodyne 1st IF: 67.899 MHz 2nd IF: 24 KHz |
||||||||||
| Sensitivity: | AM (6 KHz, 10 dB S/N) 1.8-30 MHz: 2 uV 50-54 MHz: 1 uV FM (15 KHz, 12 dB SINAD) 28-30 MHz: 0.5 uV 50-54 MHz: 0.3 uV SSB/CW (2.4 KHz, 10 dB S/N) 1.8-30 MHz: 0.25 uV 50-54 MHz: 0.2 uV |
||||||||||
| Squelch sensitivity: | AM/SSB/CW (Threshold - IPO off) 1.8-30 MHz: 2.5 uV 6 m: 1 uV FM (Threshold - IPO off) 28-30 MHz: 0.32 uV 6 m: 0.16 uV |
||||||||||
| Noise figure: | |||||||||||
| Selectivity: | AM: 6 KHz (-6 dB) 20 KHz (-60 dB) FM: 15 KHz (-6 dB) 30 KHz (-60 dB) NFM: 9 KHz (-6 dB) 25 KHz (-60 dB) SSB: 2.2 KHz (-6 dB) 4.5 KHz (-60 dB) CW: 250 Hz (-6 dB) 700 Hz (-60 dB) |
||||||||||
| Image rejection: | HF: 80 dB 6 m: 65 dB |
||||||||||
| AF output power / speaker: | 2.2 W at 10% distortion / 4 ohm | ||||||||||
| External speaker connector: | TS "Minijack" (3.5 mm), 4-16 ohm | ||||||||||
| TRANSMITTER SECTION | |||||||||||
| RF output power: |
|
||||||||||
| Modulation system: | AM: Low-level (Early stage) FM: Variable reactance SSB: Balanced |
||||||||||
| Max FM deviation (Factory set): | FM: ±5 KHz NFM: ±2.5 KHz |
||||||||||
| Spurious emissions: | Better than -60 dB (10-160 m) Better than -70 dB (6 m) |
||||||||||
| Microphone impedance / connector: | 200 ohm to 10 Kohm (600 ohm nominal) / 8-pin (Modular) | ||||||||||
| Microphone input level: | ? mV |
