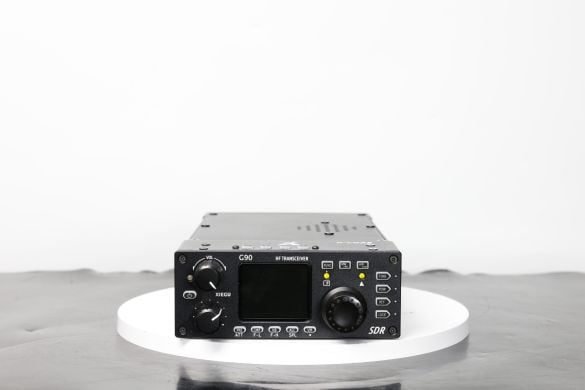

Xiegu G90 (USED)
SKU Part Number:
U21826
The product is in good condition, including DC cable, manual, microphone and box.
SPECIFICATIONS
GENERAL
Type:
Amateur HF...
Read More
Read More
£299.00
Availability: In stock

Seen this product cheaper elsewhere?
Call 0345 2300 599The product is in good condition, including DC cable, manual, microphone and box.
SPECIFICATIONS
| GENERAL | |||||||||||
| Type: | Amateur HF transceiver | ||||||||||
| Frequency range: | TX: 10-160 m RX: 0.5-30 MHz |
||||||||||
| Tuning steps: | Minimum 10 Hz | ||||||||||
| Frequency stability: | ±1 ppm (After 60 minutes warmup) | ||||||||||
| Mode: | AM / SSB / CW (FM with optional GSOC controller) | ||||||||||
| Channels / memory management: | 63 regular | ||||||||||
| Repeater shift / offset: | No dedicated. Use VFO A/B split instead. Requires optional GSOC for FM/repeater use |
||||||||||
| Power supply: | 9-15 VDC (2-pin connector) | ||||||||||
| Current drain / power consumption: | RX: Max 650 mA (500 mA according to manual) TX: Max 8 A |
||||||||||
| Antenna impedance / connector: | 50 ohm / SO-239 | ||||||||||
| Dimensions (W*H*D): | 120*45*210 mm (4.72*1.77*8.27"), without handles | ||||||||||
| Weight: | 1.63 Kg (3.59 lb), without handles | ||||||||||
| Other features: | 24-bit SDR. 1.8" color TFT. Spectrum and waterfall display. Keyer. CI-V CAT control. I/Q output. Detachable display head. CW decoder. VOX. SWR plotter. Wide range ATU. Multi-function microphone. |
||||||||||
| RECEIVER SECTION | |||||||||||
| Receiver system: | Down mix 24-bit SDR. Cirrus Logic CS4272 @ 48 KHz | ||||||||||
| Sensitivity: | AM (10 dB S/N) 0.5-2 MHz: 10 uV 2-30 MHz: 2 uV FM (12 dB SINAD), with optional GSOC controller 1.8-2 MHz: 0.35 uV 2-30 MHz: 0.25 uV SSB/CW (10 dB S/N) 1.8-2 MHz: 0.35 uV 2-30 MHz: 0.25 uV |
||||||||||
| Selectivity: | 50-5500 Hz adjustable | ||||||||||
| Image rejection: | 70 dB | ||||||||||
| AF output power / speaker: | 500 mW at 10% distortion / 8 ohm | ||||||||||
| External speaker connector: | 3.5 mm, 4-16 ohm | ||||||||||
| TRANSMITTER SECTION | |||||||||||
| RF output power: |
|
||||||||||
| Modulation system: | Digitally generated | ||||||||||
| Max FM deviation (Factory set): | ±? KHz (With GSOC option) | ||||||||||
| Spurious emissions: | Better than -50 dB | ||||||||||
| Microphone impedance / connector: | 200-10000 ohm (600 ohm nominal) / 8-pin (Modular) | ||||||||||
| Microphone input level: | ? mV |
