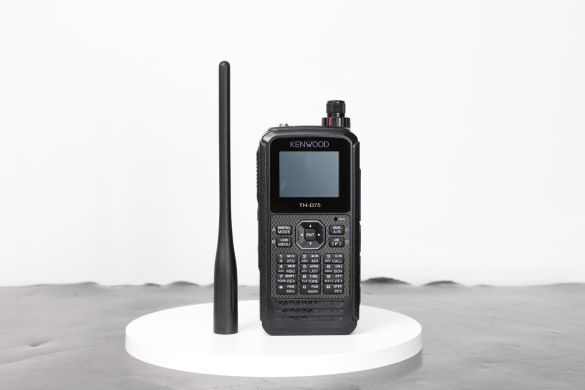

Kenwood TH-D75 (USED)
SKU Part Number:
U21837
The is in good condition, including power supply, antenna, two batteries (batteries are not included in the product warranty), manual and...
Read More
Read More
£649.00
Availability: In stock

Seen this product cheaper elsewhere?
Call 0345 2300 599The is in good condition, including power supply, antenna, two batteries (batteries are not included in the product warranty), manual and box.
SPECIFICATIONS
| GENERAL | ||||||||||||||||
| Type: | Amateur VHF/UHF transceiver | |||||||||||||||
| Frequency range: | USA TX: 144-148 / 222-225 / 430-450 MHz RX: 0.1-524 MHz |
|||||||||||||||
| Tuning steps: | Standard steps: 5 / 6.25 / 8.33 / 9 / 10 / 12.5 / 15 / 20 / 25 / 30 / 50 / 100 KHz Fine tuning: 20 / 100 / 500 / 1000 Hz (Band B, AM/SSB/CW only) |
|||||||||||||||
| Frequency stability: | ±2 ppm @ -10 to +50°C (14 to 122°F) | |||||||||||||||
| Mode: | TX: FM / NFM / DV (D-Star) RX: AM / FM / NFM / WFM / SSB / CW / DV (D-Star) |
|||||||||||||||
| Channels / memory management: | 1000 regular in 30 groups with alpha tags 100 program scan 1 priority Non-volatile storage |
|||||||||||||||
| Repeater shift / offset: | ±0 to 29.95 MHz in 50 KHz steps | |||||||||||||||
| Power supply: | 6-9.6 VDC (Battery pack) or 11-15.9 VDC external |
|||||||||||||||
| Current drain / power consumption: | RX: 50-310 mA TX: 0.4-2 A @ 7.4 VDC |
|||||||||||||||
| Antenna impedance / connector: | 50 ohm / SMA | |||||||||||||||
| Dimensions (W*H*D): | 56*122*33 mm (2.2*4.8*1.28"), with KNB-75LA | |||||||||||||||
| Weight: | 346 g (12.2 oz), with KNB-75LA, antenna and belt clip | |||||||||||||||
| Other features: | CTCSS/PL. DCS. Micro-SD card. Built-in GPS and APRS with digipeater. Built-in bar entenna for 0.1-10 MHz RX. Color TFT. Weather alert. Audio equalizer. Hi-performance DSP. Clock. Bluetooth 3.0 class 2. Backlit keyboard. USB-C connector. D-Star reflector terminal mode. IP54/55 compliant. |
|||||||||||||||
| RECEIVER SECTION | ||||||||||||||||
| Receiver system: | Double conversion superheterodyne (FM / WFM / DV) 1st IF: 57.15 MHz (Band A) - 58.05 MHz (Band B) 2nd IF: 450 KHz Triple conversion superheterodyne (AM / SSB / CW) 1st IF: 57.15 MHz (Band A) - 58.05 MHz (Band B) 2nd IF: 450 KHz 3rd IF: 10.8 KHz |
|||||||||||||||
| Sensitivity: | AM (10 dB S/N) 0.3-0.52 MHz: 4 uV 0.52-1.8 MHz: 1.59 uV 1.8-54 MHz: 0.63 uV 54-76 MHz: 1.12 uV 118-174 MHz: 0.5 uV 200-250 MHz: 0.63 uV 382-412 MHz: 1.12 uV 415-524 MHz: 1.12 uV FM (12 dB SINAD) 28-54 MHz: 0.32 uV 54-76 MHz: 0.56 uV 118-144 MHz: 0.36 uV 144-148 MHz: 0.18 uV (Band A), 0.19 uV (Band B) 148-175 MHz: 0.36 uV 200-222 MHz: 0.36 uV 222-225 MHz: 0.18 uV (Band A), 0.2 uV (Band B) 225-250 MHz: 0.36 uV 382-400 MHz: 0.5 uV 400-412 MHz: 0.36 uV 415-430 MHz: 0.36 uV 430-450 MHz: 0.18 uV (Band A), 0.2 uV (Band B) 450-490 MHz: 0.36 uV 490-524 MHz: 0.63 uV NFM (12 dB SINAD) 144-148 MHz: 0.22 uV (Band A), 0.24 uV (Band B) 222-225 MHz: 0.22 uV (Band A), 0.25 uV (Band B) 430-450 MHz: 0.22 uV (Band A), 0.25 uV (Band B) WFM (12 dB SINAD) 76-95 MHz: 1.59 uV 95-108 MHz: 2 uV SSB (10 dB S/N) 1.8-54 MHz: 0.4 uV 54-76 MHz: 0.79 uV 144-148 MHz: 0.16 uV 222-225 MHz: 0.2 uV 430-450 MHz: 0.16 uV DV (PN9/GMSK, 4.8 kbps, BER 1%) 144-148 MHz: 0.22 uV 222-225 MHz: 0.22 uV 430-450 MHz: 0.22 uV |
|||||||||||||||
| Squelch sensitivity: | Band A 0.18 uV (Treshold) Band B 0.25 uV (Treshold) |
|||||||||||||||
| Selectivity: | FM: 12 KHz (-6 dB) 30 KHz (-50 dB) |
|||||||||||||||
| Image rejection: | 60 dB | |||||||||||||||
| AF output power / speaker: | 400 mW at 10% distortion / 8 ohm | |||||||||||||||
| External speaker connector: | ||||||||||||||||
| TRANSMITTER SECTION | ||||||||||||||||
| RF output power: |
|
|||||||||||||||
| Modulation system: | FM: Reactance modulation DV: GMSK reactance modulation |
|||||||||||||||
| Max FM deviation (Factory set): | FM: ±5 KHz NFM: ±2.5 KHz |
|||||||||||||||
| Spurious emissions: | Better than -60 dBc (Hi-Mid settings) | |||||||||||||||
| Microphone impedance/connector: | 2 Kohm / ?-pin | |||||||||||||||
| Microphone input level: | ? mV |
