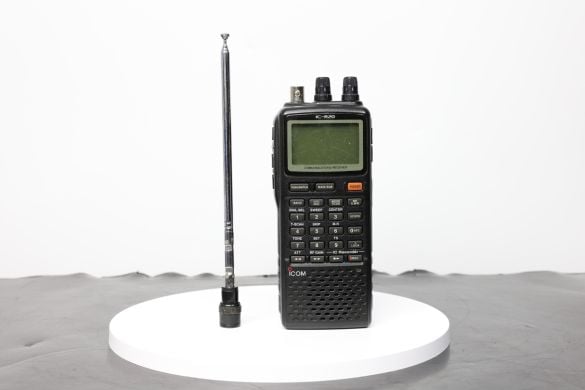

Call 0345 2300 599The product is in good condition, only a small scratch on the screen and some dust inside the screen, including power supply and manual. No box.
SPECIFICATIONS
| GENERAL | |
| Type: | HF/VHF/UHF/SHF receiver/scanner |
| Frequency range: | 0.15-3305 MHz (Cellular blocked in the US) |
| Tuning steps: | 10 / 100 Hz, 1 / 5 / 6.25 / 8.33 / 9 / 10 / 12.5 / 15 / 20 / 25 / 30 / 50 / 100 KHz |
| Frequency stability: | ±6 ppm @ -10 to +60°C (14 to 140°F) |
| Mode: | VFO A: AM / FM / SSB / CW / WFM (0.15-470 MHz) VFO B: AM / FM / WFM (118-175 / 330-3305 MHz) |
| Channels / memory management: | 1000 regular 200 auto write 50 scan edges Non-volatile EEPROM storage |
| Power supply: | 3.7-4.5 VDC (Li-Ion battery pack or three LR6 / AA batteries) or 6 VDC ±5% external (Barrel connector, center positive) |
| Current drain / power consumption: | Single band: 35-150 mA Dual band: 82-340 mA |
| Antenna impedance / connector: | 50 ohm / BNC |
| Dimensions (W*H*D): | 60*142*35 mm (2.36*5.59*1.38") |
| Weight: | 320 g (11.29 oz), with antenna and BP-206 |
| Other features: | VSC. Internal ferrite bar antenna for MW reception. Simple scope. NB/ANL. CI-V. CTCSS/PL and DCS with tone scan. Digital recorder up to 4 hours. Single or twin RX. |
| RECEIVER SECTION | |
| Receiver system: | Triple conversion superheterodyne and down converter 1st IF: 266.7 and 429.1 MHz 2nd IF: 19.65 MHz 3rd IF: 450 KHz |
| Sensitivity: | AM (10 dB S/N) 0.495-5 MHz: 2.2 uV 5-30 MHz: 1.4 uV 118-136 MHz: 1.4 uV FM (12 dB SINAD) 1.62-5 MHz: 0.56 uV 5-222 MHz: 0.4 uV 330-833 MHz: 0.56 uV 833-1305 MHz: 0.71 uV 1330-2305 MHz: 5.6 uV 2330-3000 MHz: 18 uV WFM (12 dB SINAD) 76-108 MHz: 1.8 uV 175-222 MHz: 1.8 uV 470-770 MHz: 2.5 uV SSB/CW (10 dB S/N) 0.495-5 MHz: 0.4 uV 5-30 MHz: 0.25 uV 50-54 MHz: 0.25 uV 118-147 MHz: 0.25 uV 330-470 MHz: 0.32 uV |
| Squelch sensitivity: | |
| Noise figure: | |
| Selectivity: | AM/FM 12 KHz (-6 dB), 30 KHz (-60 dB) WFM 150 KHz (-6 dB) SSB/CW 1.8 KHz (-6 dB) |
| Image rejection: | |
| AF output power / speaker: | 100 mW at 10% distortion / 8 ohm |
| External speaker connector: | TRS "Minijack" (3.5 mm), 8 oh |
