Yaesu FT-817 (Used)
SKU Part Number: U22058
Yaesu FT-817 in fair condition with some scratches to case (pictured). Comes with new SBR-32MH battery, YHA-63 antenna, hand mic, DC cable, and carry...
Read More
£349.00
Availability: In stock
call

Seen this product cheaper elsewhere?

Call 0345 2300 599

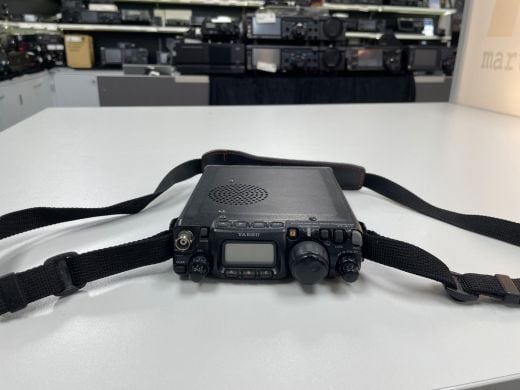

Yaesu FT-817 in fair condition with some scratches to case (pictured). Comes with new SBR-32MH battery, YHA-63 antenna, hand mic, DC cable, and carry strap. No box.

SPECIFICATIONS

GENERAL
Type: Amateur HF/VHF/UHF transceiver
Frequency range: Europe
TX: 10-160 m + WARC / 50-54 / 144-146 / 430-440 MHz
RX: 0.1-56 / 76-154 / 420-470 MHz
USA
TX: 10-160 m + WARC / 50-54 / 144-148 / 440-450 MHz
RX: 0.1-56 / 76-154 / 420-470 MHz
Tuning steps: AM/FM: Down to 100 Hz
SSB/CW: Down to 10 Hz
Frequency stability: ±4 ppm up to 60 minutes after power on
±1 ppm/hour @ 25°C (±0.5 ppm @ 25°C with optional TCXO-9)
Mode: RX: AM / FM / NFM / WFM / SSB / CW
TX: AM / FM / NFM / SSB / CW
Channels / memory management: 200 regular (With alpha tags)
Home channels
Band-limits
Non-volatile EEPROM storage
Repeater shift / offset: ±0-99.99 MHz in 10 KHz steps (Depending on band)
Power supply: 9.6-12 VDC (8*NiCd/R6/AA) or 8-16 VDC external
Current drain / power consumption: RX: 250-450 mA
TX: Max 2 A
Antenna impedance / connector: 50 ohm / BNC on front and SO-239 (M-jack) on the back
Dimensions (W*H*D): 135*38*165 mm (5.32*1.5*6.5")
Weight: 1.17 Kg (2.58 lb), with battery and antenna
Other features: CTCSS/DCS. Spectrum scope. Alpha tags. VOX. ARTS.
9K6 packet ready.


RECEIVER SECTION
Receiver system: Double conversion superheterodyne (AM/FM/SSB/CW)
1st IF: 68.33 MHz
2nd IF: 455 KHz
Double conversion superheterodyne (WFM)
1st IF: 10.7 MHz
2nd IF: 455 KHz
Sensitivity: AM (10 dB S/N)
0.5-1.8 MHz: 32 uV
1.8-30 MHz: 2 uV
50-54 MHz: 2 uV
FM (12 dB SINAD)
28-30 MHz: 0.5 uV
50-54 MHz: 0.32 uV
144/440 MHz: 0.2 uV
SSB/CW (10 dB S/N)
1.8-30 MHz: 0.25 uV
50-54 MHz: 0.2 uV
144/440 MHz: 0.125 uV
Squelch sensitivity:
Noise figure:
Selectivity: AM
6 KHz (-6 dB)
20 KHz (-60 dB)
FM
15 KHz (-6 dB)
30 KHz (-60 dB)
FM-N
9 KHz (-6 dB)
25 KHz (-60 dB)
SSB/CW
2.2 KHz (-6 dB)
4.5 KHz (-60 dB)
Image rejection: HF/6 m: 70 dB
2 m/70 cm: 60 dB
AF output power / speaker: 1 W at <10% distortion / 8 Ohm
External speaker connector: TS "Minijack" (3.5 mm), 4-16 Ohm


TRANSMITTER SECTION
RF output power:
  High
@ 13.8 V
High
@ 9.6 V
Low 3 Low 2 Low 1
AM: 1.5 W 700 mW ? mW ? mW ? mW
FM: 5 W 2.5 W 2.5 W 1 W 500 mW
SSB (PEP): 5 W 2.5 W 2.5 W 1 W 500 mW
CW (DC): 5 W 2.5 W 2.5 W 1 W 500 mW
Modulation system: AM: Early stage, low level
FM: Variable reactance
SSB: Balanced modulator
Max FM deviation (Factory set): FM: ±5 KHz
NFM: ±2.5 KHz
Spurious emissions: HF: Better than -50 dB
VHF/UHF: Better than -60 dB
Microphone impedance / connector: 600 ohm nominal (200 Ohm to 10 Kohm) / 8-pin modular
