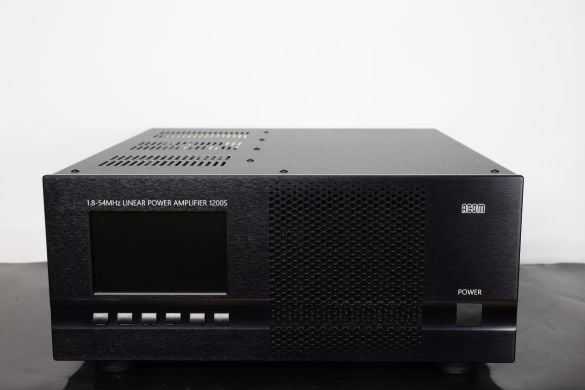

The product is in good condition, including box.

Standard Frequency Coverage

• All amateur bands from 1.8 through 54 MHz:
• 1.800 - 2.000 MHz (160 m band)
• 3.500 - 4.000 MHz (80 m band)
• 5.020 - 5.455 MHz (60 m band)*
• 7.000 - 7.300 MHz (40 m band)
• 10.100 - 10.150 MHz (30 m band)
• 14.000 - 14.350 MHz (20 m band)
• 18.068 - 18.168 MHz (17 m band)
• 21.000 - 21.450 MHz (15 m band)
• 24.890 - 24.990 MHz (12 m band)
• 28.000 - 29.700 MHz (10 m band)
• 50.000 - 54.000 MHz (6 m band)*
• (*) Please, refer the applicable regional band plans and laws for specific allocations and limitations;

Rated Output Power

• 1000 W ±0.5 dB, PEP or continuous carrier, without mode limitation;
• You will have to reduce the output power to about 500 W in order to keep the mains current consumption below 10 A if the amplifier is operated at below 200 VAC mains supply voltage.

Intermodulation Distortion (IM3)

• Better than 31 dB below rated PEP;

Harmonic and Parasitic Emissions Output Suppression

• Better than 60 dB (65 dB typically);

Input and Output Impedances

• Nominal value: 50 Ohm unbalanced, UHF (SO-239) type connectors;
• Input circuit: Broadband, SWR below 1.2 (1.1 typically), 1.8-54 MHz continuous range without retuning or switching;
• RF bypass path: SWR - below 1.1, 1.8-54 MHz;
• Acceptable SWR at the output load (the antenna): up to 3 with proportional power reduction and up to 1.5 for full output power;

RF Power Gain

• 14 dB ±1 dB (typically 40 W for 1000 W output power);

Mains Power Supply Voltage

• 100-240 VAC, ±10%, 50-60 Hz, Single phase;

Mains Power Consumption at Full Output Power

• Power factor of 0.95 or higher;
• Up to 2100 VA at rated output from 200/240 VAC mains supply;
• Up to 1100 VA at 500 W output from 100/120 VAC mains supply;

Mains Power Consumption in Low Energy (Waiting) Mode

• Less than 1 VA;

Receive / Transmit Control

• KEY-IN - Phono RCA connector
  • Voltage applied to the transceiver keying output - up to +12 V;
  • Closed-circuit current flow to the transceiver keying output - up to 6 mA;
• KEY-OUT - open-drain Phono RCA connector
  • Output resistance: not more than 120 Ohm;
  • The maximum allowable open-circuit voltage coming from external devices connection: +50 V;
  • Maximum allowable closed-circuit current flow by external devices: 20 mA;
• Minimum required time of sequencing between sending a request for transmitting (KEY-IN "ground on transmit" signal) and applying RF drive power at RF INPUT connector for safely switching receive to transmit: 10 ms.

Safety and Electromagnetic Compatibility

• Complies with European Union's CE safety and electromagnetic compatibility requirements;
• Complies with the US Federal Communications Commission (FCC) regulations - FCC Identifier: 2AJXZ1200S, Date of Grant: 21 September 2017;

Size & Weight (operating, excluding connected cables and opened tilt foot bar)

• WxDxH: 372x418x162 mm, 16 kg (14.7x16.5x6.4 inches, 35.3 lbs.);

Shipping Size & Weight

• WxDxH: Approx. 620x580x380 mm, 20.0 kg (24.5x22.9x15.0 inches, 44.1 lbs.);
• Please, contact us for shipment details;

Operating environments

• Temperature range: -10 to +40 degrees Celsius (14 degrees F to 104 degrees F);
• Relative air humidity: up to 95% @ +35 degrees Celsius (95 degrees F);
• Height above sea level: up to 3050 m (10000 ft) without output deterioration.
