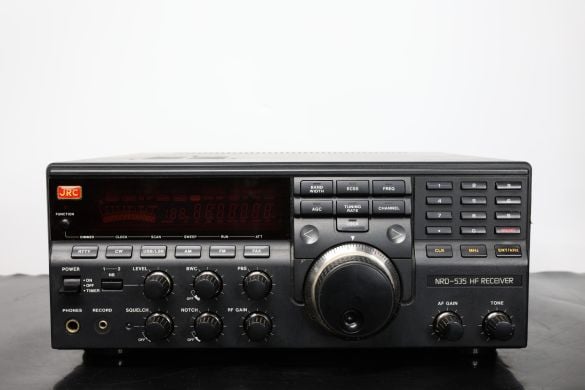

JRC NRD-535 (USED)
SKU Part Number: U22200
The product is in fair condition, only some scratches on the side of the case. Including AC cable. No box or...
Read More
£649.00
Availability: In stock
call

Seen this product cheaper elsewhere?

Call 0345 2300 599

The product is in fair condition, only some scratches on the side of the case. Including AC cable. No box or manual.



SPECIFICATIONS

GENERAL
Type: HF receiver
Frequency range: 0.05-30 MHz
Tuning steps: 1 / 10 / 100 Hz, 1 KHz
Frequency stability: ±2.5 ppm after 50 minutes warmup (±0.5 ppm option)
Mode: AM / FM / SSB / CW / RTTY / FAX
Channels / memory management: 200 regular
RAM storage with lithium battery backup (CR2032)
Power supply: Mains: 100 / 120 / 220 / 240 VAC (3-pin IEC C14 connector)
or 12-16 VDC (2-pin connector)
Current drain / power consumption: Less than 35 VA @ mains
Less than 1.9 A @ 13.8 VDC
Antenna impedance / connector: 50 ohm / SO-239
600 ohm / Spring terminals
Dimensions (W*H*D): 330*130*287 mm (13*5.12*11.3")
Weight: 9 Kg (19.84 lb)
Other features: Notch filter. RS-232C remote control. PBS. Clock/timer. Dimmer.


RECEIVER SECTION
Receiver system: Triple conversion superheterodyne
1st IF: 70.455 MHz
2nd IF: 455 KHz
3rd IF: 97 KHz
Sensitivity: AM (10 dB S/N)
0.1-0.5 MHz: 15.8 uV
0.5-1.6 MHz: 6.3 uV
1.6-30 MHz: 2 uV
FM (12 dB SINAD)
1.6-30 MHz: 0.5 uV
SSB/CW/RTTY/FAX (10 dB S/N)
0.1-0.5 MHz: 5 uV
0.5-1.6 MHz: 2 uV
1.6-30 MHz: 0.32 uV
Squelch sensitivity:
Noise figure:
Selectivity: AUX: 12 KHz (-6 dB), default. Optional filters available
Wide: 4 KHz (-6 dB), 10 KHz (-60 dB)
Inter: 2 KHz (-6 dB), 6 KHz (-60 dB)
Narr: 1 KHz (-6 dB), 3 KHz (-60 dB), optional filter required
FM: 12 KHz (-6 dB)

NB! The "Narr" bandwidth is measured with CFL-233 installed
NB! With the optional Bandwidth Control Unit (CFL-243) installed, the
"Inter" filter can be continuously narrowed down to about 500 Hz via the
BWC knob.
Image rejection: >70dB
AF output power / speaker: 1 W at 10% distortion / 4 ohm
External speaker connector: Phono (RCA)
