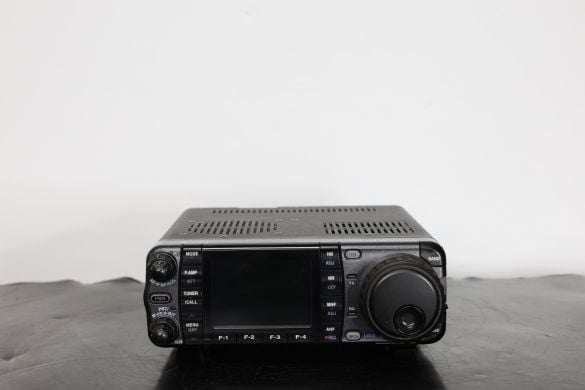

Call 0345 2300 599The product is in good condition, including DC cable, microphone and box.
SPECIFICATIONS
| GENERAL | ||||||||||||||||||||||||||
| Type: | Amateur HF/VHF/UHF transceiver | |||||||||||||||||||||||||
| Frequency range: | TX: 10-160 m + WARC / 6 m / 2 m / 70 cm RX: 0.03-200 / 400-470 MHz |
|||||||||||||||||||||||||
| Tuning steps: | Down to 1 Hz | |||||||||||||||||||||||||
| Frequency stability: | ±0.5 ppm @ 0 to 50°C (32 to 122°F) | |||||||||||||||||||||||||
| Mode: | TX: AM / FM / NFM / SSB / CW / RTTY RX: AM / FM / NFM / WFM / SSB / CW / RTTY / TV |
|||||||||||||||||||||||||
| Channels / memory management: | 495 regular with split 6 scan edges 2 call Non-volatile EEPROM storage |
|||||||||||||||||||||||||
| Repeater shift / offset: | ±0 to 9.999 MHz in 1 KHz steps | |||||||||||||||||||||||||
| Power supply: | 13.8 VDC ±15% | |||||||||||||||||||||||||
| Current drain / power consumption: | RX: 1.3 to 1.6 A TX: Max 22 A |
|||||||||||||||||||||||||
| Antenna impedance / connector: | 50 ohm / Two SO-239 | |||||||||||||||||||||||||
| Dimensions (W*H*D): | 167*58*180 mm (6.57*2.28*7.1") | |||||||||||||||||||||||||
| Weight: | 2.3 Kg (5.1 lb) | |||||||||||||||||||||||||
| Other features: | CTCSS/PL & DTCS. 2" (5 cm) TFT display. IF-DSP. Voice recorder. Detachable control head. Audio equalizer. Voice synthesizer and keyer. CI-V. VHF channels NTSC-M and PAL-B TV receiver on some versions. Built-in RTTY decoder. |
|||||||||||||||||||||||||
| RECEIVER SECTION | ||||||||||||||||||||||||||
| Receiver system: | Double conversion superheterodyne (WFM) 1st IF: 134.732 MHz 2nd IF: 10.7 MHz Triple conversion superheterodyne (AM/FM/SSB/CW) 1st IF: 124.487 2nd IF: 455 KHz 3rd IF: 16.15 KHz |
|||||||||||||||||||||||||
| Sensitivity: | AM (10 dB S/N) 0.5-1.8 MHz: 4 uV 1.8-29.9 MHz: 2 uV 50-54 MHz: 1 uV 144/440 MHz: 1 uV FM (12 dB SINAD) 1.8-29.9 MHz: 0.5 uV 50-54 MHz: 0.25 uV 144/440 MHz: 0.18 uV SSB/CW (10 dB S/N) 1.8-29.9 MHz: 0.15 uV 50-54 MHz: 0.12 uV 144/440 MHz: 0.11 uV |
|||||||||||||||||||||||||
| Selectivity: | AM (BW=6 KHz) >6 KHz (-6 dB) <15 KHz (-60 dB) FM (BW=15 KHz) >12 KHz (-6 dB) <20 KHz (-60 dB) SSB (BW=2.4 KHz) >2.4 KHz (-6 dB) <3.9 KHz (-60 dB) CW (BW=500 Hz) >500 Hz (-6 dB) <900 Hz (-60 dB) RTTY (BW=350 Hz) >360 Hz (-6 dB) <650 Hz (-60 dB) |
|||||||||||||||||||||||||
| Image rejection: | HF: >70 dB 50/144/440 MHz: >65 dB |
|||||||||||||||||||||||||
| AF output power / speaker: | 2 W at 10% distortion / 8 ohm | |||||||||||||||||||||||||
| External speaker connector: | 3.5 mm, 8 ohm (Mono) | |||||||||||||||||||||||||
| TRANSMITTER SECTION | ||||||||||||||||||||||||||
| RF output power: |
|
|||||||||||||||||||||||||
| Modulation system: | AM: Digital low power modulation FM: Digital phase modulation SSB: Digital PSN modulation |
|||||||||||||||||||||||||
| Max FM deviation (Factory set): | FM: ±5 KHz NFM: ±2.5 KHz |
|||||||||||||||||||||||||
| Spurious emissions: | HF: Better than -50 dB VHF/UHF: Better than -60 dB |
|||||||||||||||||||||||||
| Microphone impedance / connector: | 600 ohm / 8-pin (Modular) | |||||||||||||||||||||||||
| Microphone input level: | 30 mV @ 1.5 KHz for full output power |
