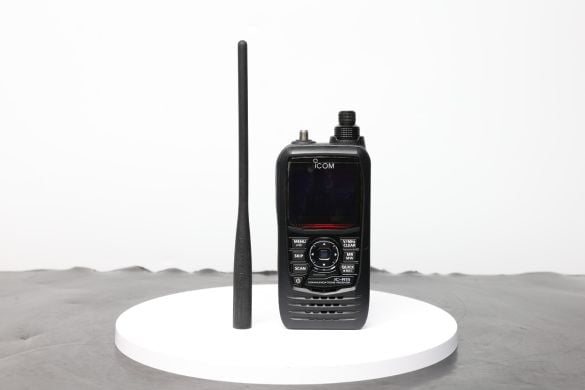

Call 0345 2300 599The product is in good condition, including USB cable, battery (the battery is not included in the product warranty), manual and box.
SPECIFICATIONS
| GENERAL | |
| Type: | VHF/UHF receiver/scanner |
| Frequency range: | Europe 76-108 / 108-500 MHz USA 88-108 / 108-500 MHz |
| Tuning steps: | 5 / 6.25 / 8.33 / 10 / 12.5 / 15 / 20 / 25 / 30 / 50 / 100 / 125 / 200 KHz |
| Frequency stability: | ±2.5 ppm @ -20 to +60°C (-4 to +140°F) |
| Mode: | AM / AM-N / FM / FM-N / WFM |
| Channels / memory management: | 2000 regular in 100 groups (Banks) @ up to 150 channels per second 200 auto memory write 100 scan skip 25 scan edge pairs Alpha tags (16 characters) Group link scan Non-volatile storage |
| Power supply: | 3.6 VDC (Battery pack) or 5 VDC external USB charging only |
| Current drain / power consumption: | Typical @ single band, recording off, backlight off Receiving: 380 mA Standby: 150 mA Power save: 80 mA |
| Antenna impedance / connector: | 50 ohm / SMA |
| Dimensions (W*H*D): | 58*116*34 mm (2.3*4.6*1.3") |
| Weight: | 260 g (9.2 oz), with battery pack and antenna |
| Other features: | Color screen. Bluetooth v5.2. Dual watch. Clock. CI-V. Digital recorder. Micro-SD card slot. USB-C jack. Attenuator. VSC. Weather alert (USA only). APO. Band scope. ANL. AF hi-cut filter. CTCSS/PL and DTCS with tone scan. Duplex operation. Simple mode. Cloning. IPX7 compliant. |
| RECEIVER SECTION | |
| Receiver system: | Double conversion superheterodyne 1st IF: 58.050 MHz (A-band) - 57.150 MHz (B-band) 2nd IF: 450 KHz |
| Sensitivity: | AM (10 dB S/N) 108-142 MHz: 1.0 uV 222-250 MHz: 1.0 uV 250-300 MHz: 1.8 uV 300-400 MHz: 1.4 uV FM (12 dB SINAD) 108-250 MHz: 0.4 uV 250-300 MHz: 0.71 uV 300-500 MHz: 0.56 uV WFM (12 dB SINAD) 76-108 MHz: 1.0 uV |
| Squelch sensitivity: | Squelch matrix |
| Noise figure: | |
| Selectivity: | AM/FM 50 dB or more (No reference) WFM 35 dB or more (No reference) |
| Image rejection: | |
| AF output power / speaker: | 400 mW at 10% distortion / 8 ohm |
| External speaker connector: | TS "Minijack" (3.5 mm) |
